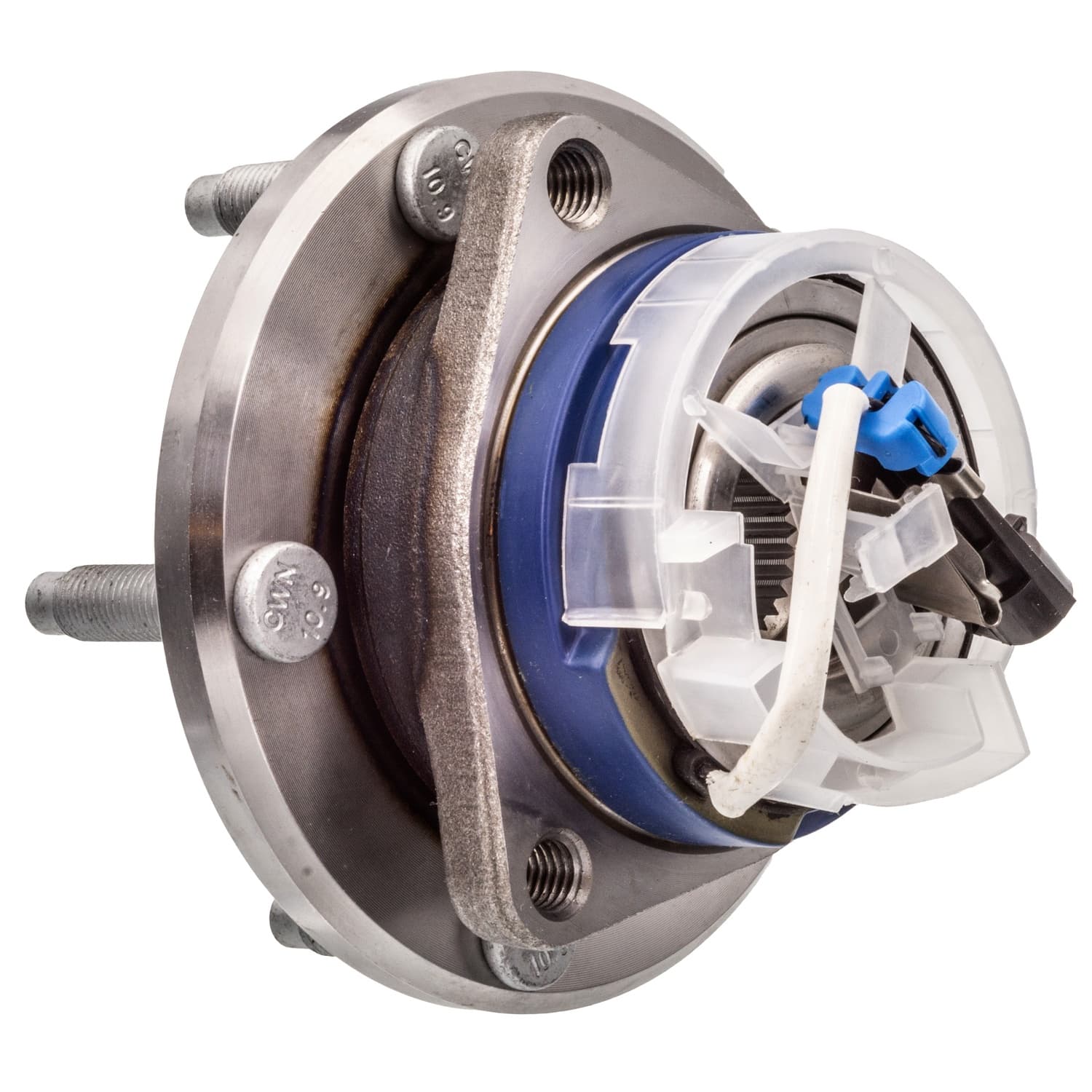

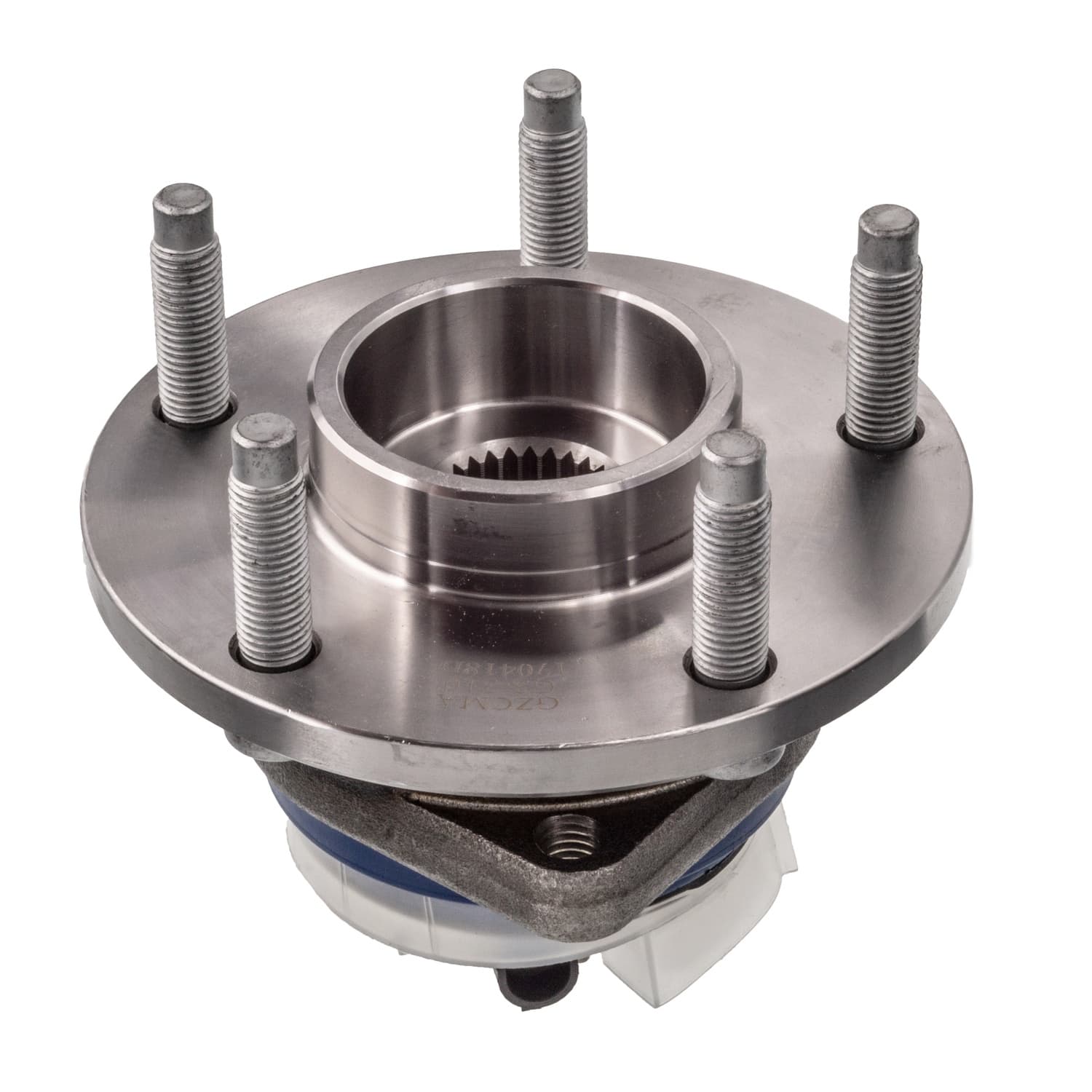

New Hub Assembly Compatible With Chevrolet Cadillac Corvette XLR 1997-2008 By Part Numbers PT512153 512153 BR930198

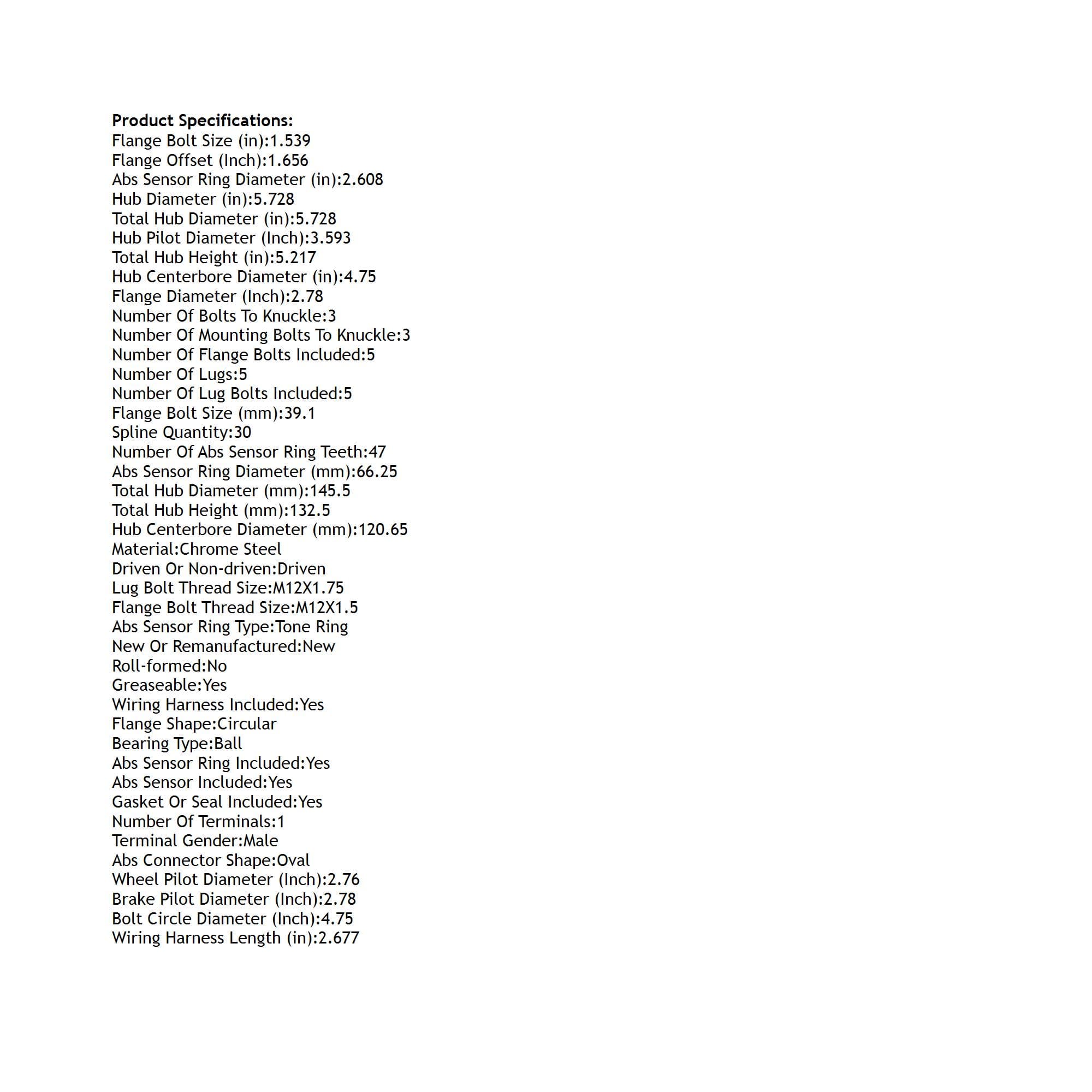

Rareelectrical Compatible With Chevrolet,Cadillac,Corvette,Xl This Item Fits Various Applications By Part Number. Please Check Your Part Number To Ensure Fitment. Product Type: Hub Assembly Specifications: Abs Connector Shape: Oval Abs Sensor Included: Yes Abs Sensor Ring Diameter (In): 2.608 Abs Sensor Ring Diameter (Mm): 66.25 Abs Sensor Ring Included: Yes Abs Sensor Ring Type: Tone Ring Bearing Type: Ball Bolt Circle Diameter (Inch): 4.75 Brake Pilot Diameter (Inch): 2.78 Driven Or Non-Driven: Driven Flange Bolt Size (In): 1.539 Flange Bolt Size (Mm): 39.1 Flange Bolt Thread Size: M12x1.5 Flange Diameter (Inch): 2.78 Flange Offset (Inch): 1.656 Flange Shape: Circular Gasket Or Seal Included: Yes Greaseable: Yes Hub Centerbore Diameter (In): 4.75 Hub Centerbore Diameter (Mm): 120.65 Hub Diameter (In): 5.728 Hub Pilot Diameter (Inch): 3.593 Lug Bolt Thread Size: M12x1.75 Material: Chrome Steel New Or Remanufactured: New Number Of Abs Sensor Ring Teeth: 47 Number Of Bolts To Knuckle: 3 Number Of Flange Bolts Included: 5 Number Of Lug Bolts Included: 5 Number Of Lugs: 5 Number Of Mounting Bolts To Knuckle: 3 Number Of Terminals: 1 Roll-Formed: No Spline Quantity: 30 Terminal Gender: Male Total Hub Diameter (In): 5.728 Total Hub Diameter (Mm): 145.5 Total Hub Height (In): 5.217 Total Hub Height (Mm): 132.5 Wheel Pilot Diameter (Inch): 2.76 Wiring Harness Included: Yes Wiring Harness Length (In): 2.677 Replaces: Acdelco: Rw20-86 Autopart International: 1411-04737 Bca: We61463 Centric Parts: 40262017E Fag Us: 102249 Gsp: 103153 Mevotech: H512153 Moog Hub Assemblies: 512153 Napa: Pbr930198 Applications: Chevrolet Corvette (1997-2008) Cadillac Xlr (2004-2008) Source: Aftermarket One Year Manufacturer's Warranty.
