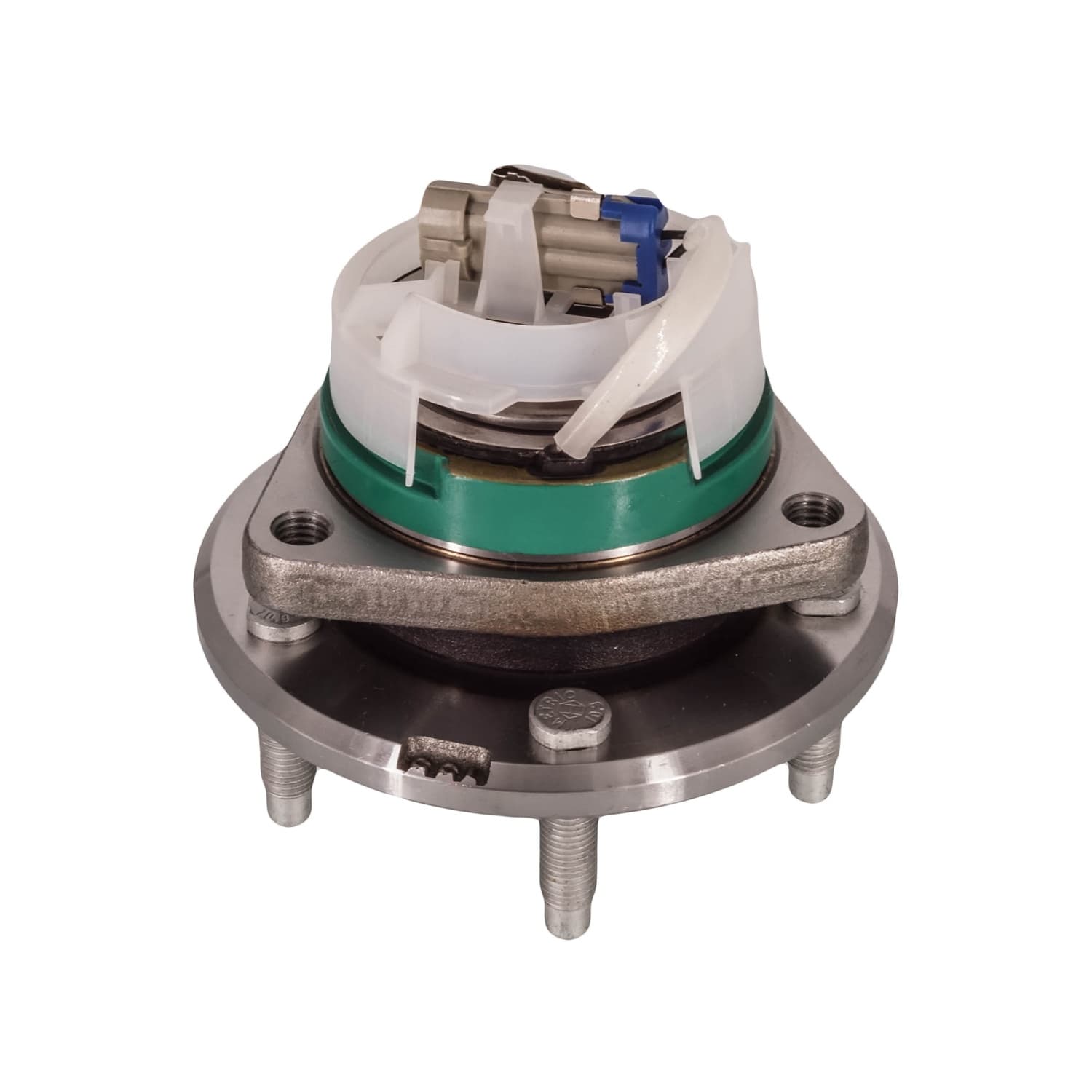

New Hub Assembly Compatible With Cadillac CTS STS 2003 2004 2005 2006 2007 2008 2009 2010 2011 By 512223 BR930081 PT512223

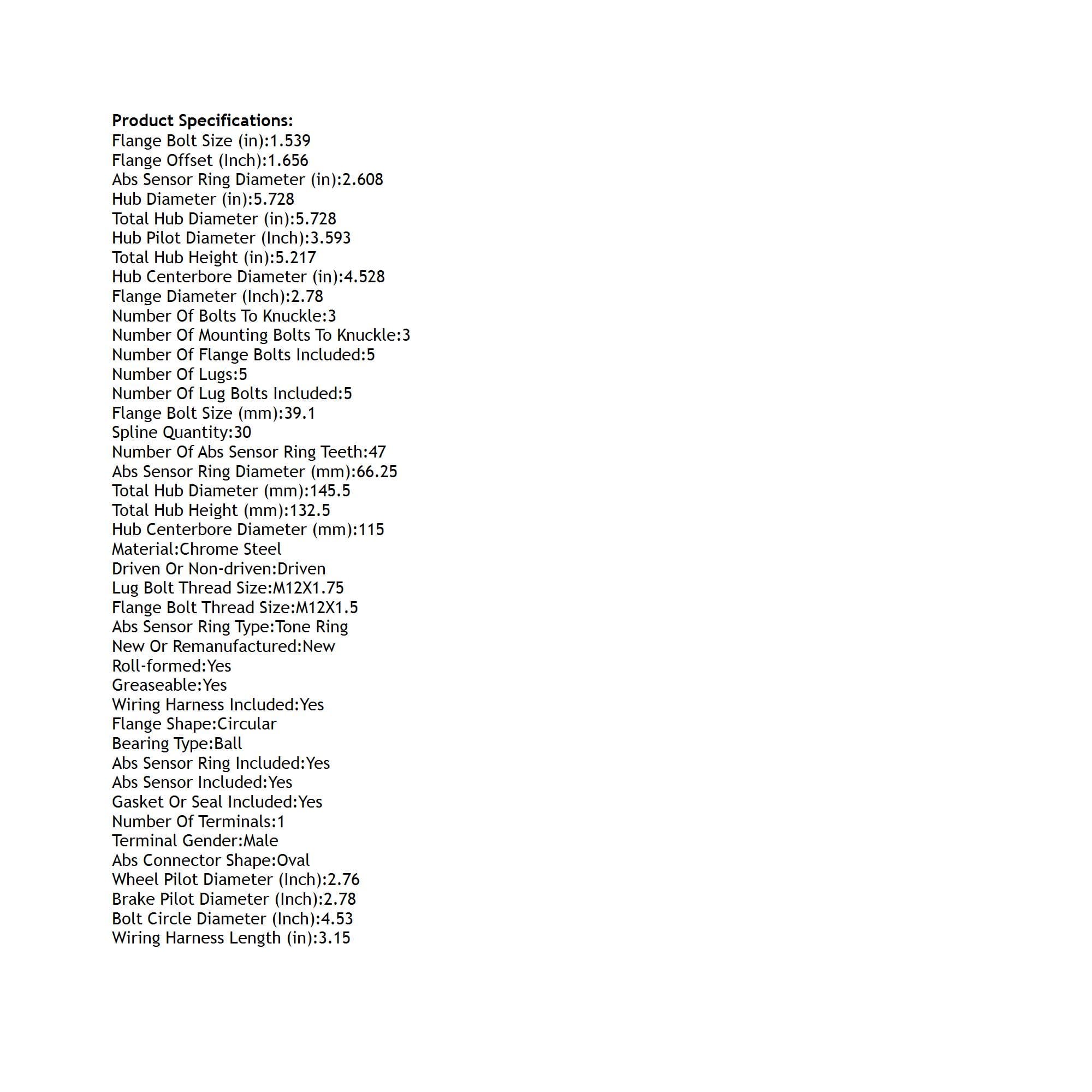

Rareelectrical Compatible With Cadillac,Mevotech This Item Fits Various Applications By Part Number. Please Check Your Part Number To Ensure Fitment. Product Type: Hub Assembly Assembly/Single: Single Specifications: Abs Connector Shape: Oval Abs Sensor Included: Yes Abs Sensor Ring Diameter (In): 2.608 Abs Sensor Ring Diameter (Mm): 66.25 Abs Sensor Ring Included: Yes Abs Sensor Ring Type: Tone Ring Bearing Type: Ball Bolt Circle Diameter (Inch): 4.53 Brake Pilot Diameter (Inch): 2.78 Driven Or Non-Driven: Driven Flange Bolt Size (In): 1.539 Flange Bolt Size (Mm): 39.1 Flange Bolt Thread Size: M12x1.5 Flange Diameter (Inch): 2.78 Flange Offset (Inch): 1.656 Flange Shape: Circular Gasket Or Seal Included: Yes Greaseable: Yes Hub Centerbore Diameter (In): 4.528 Hub Centerbore Diameter (Mm): 115 Hub Diameter (In): 5.728 Hub Pilot Diameter (Inch): 3.593 Lug Bolt Thread Size: M12x1.75 Material: Chrome Steel New Or Remanufactured: New Number Of Abs Sensor Ring Teeth: 47 Number Of Bolts To Knuckle: 3 Number Of Flange Bolts Included: 5 Number Of Lug Bolts Included: 5 Number Of Lugs: 5 Number Of Mounting Bolts To Knuckle: 3 Number Of Terminals: 1 Roll-Formed: Yes Spline Quantity: 30 Terminal Gender: Male Total Hub Diameter (In): 5.728 Total Hub Diameter (Mm): 145.5 Total Hub Height (In): 5.217 Total Hub Height (Mm): 132.5 Wheel Pilot Diameter (Inch): 2.76 Wiring Harness Included: Yes Wiring Harness Length (In): 3.15 Replaces: Acdelco: Rw20-11 Autopart International: 1411-248332 Bca: We60894 Centric Parts: 40262010 40405620 Fag Us: 102217 General Motors: 25693148 Gsp: 103223 Mevotech: H512223 Moog Hub Assemblies: 512223 Napa: Pbr930081 Applications: Cadillac Cts (2003-2007) Cadillac Sts (2005-2011) Source: Aftermarket One Year Manufacturer's Warranty.
