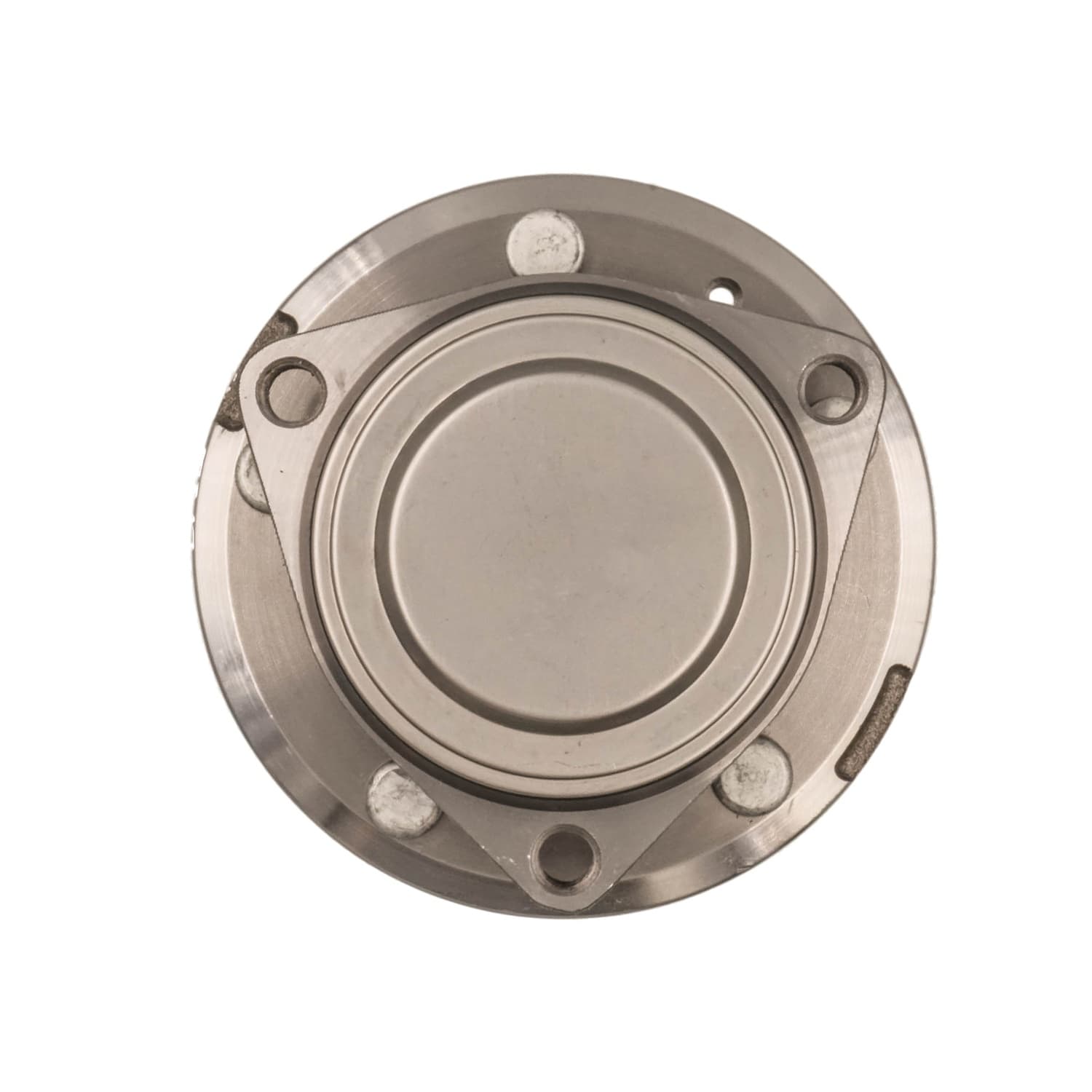

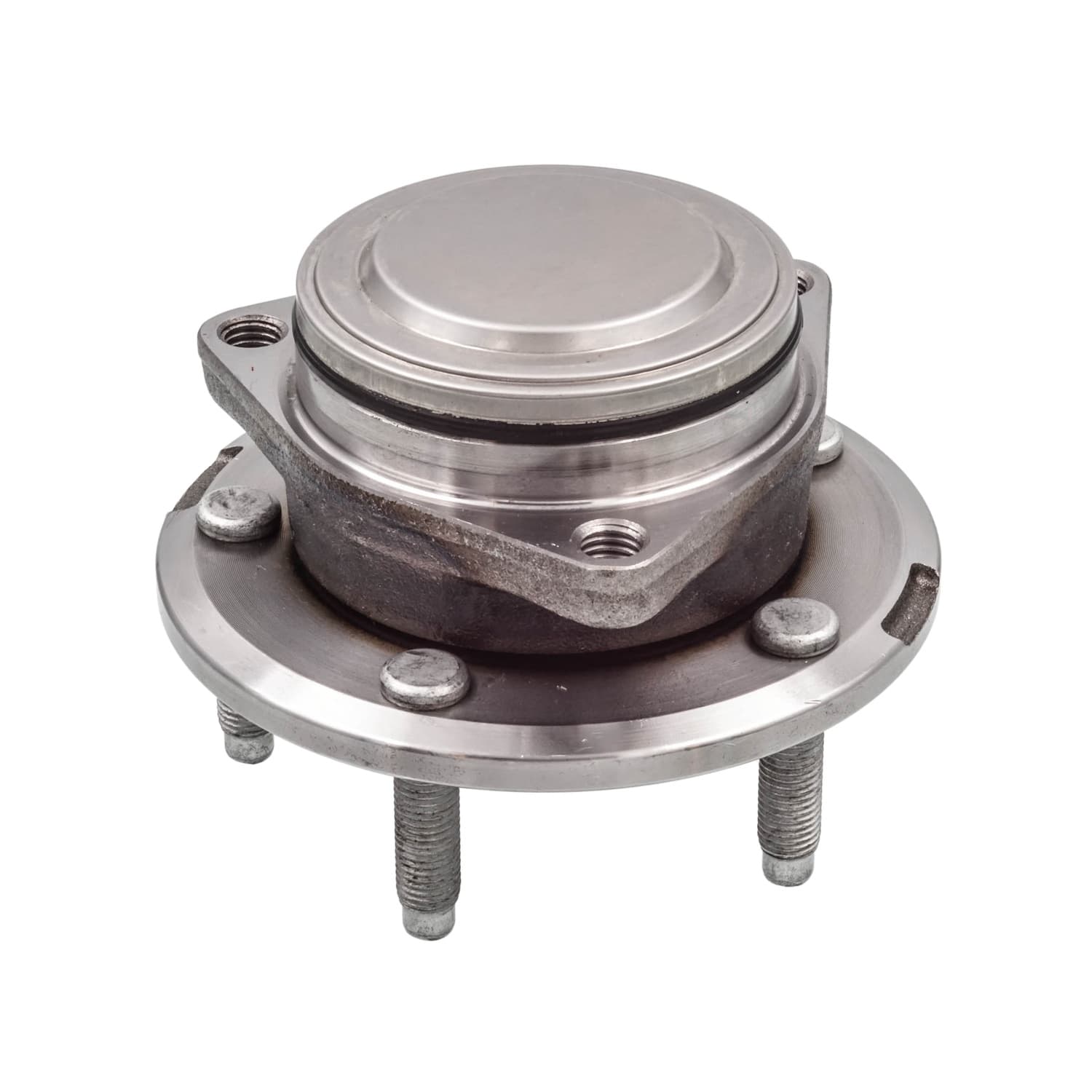

New Hub Assembly Compatible With Cadillac ATS 2013 2014 2015 2016 2017 2018 2019 By Part Numbers HA590488 PT513380

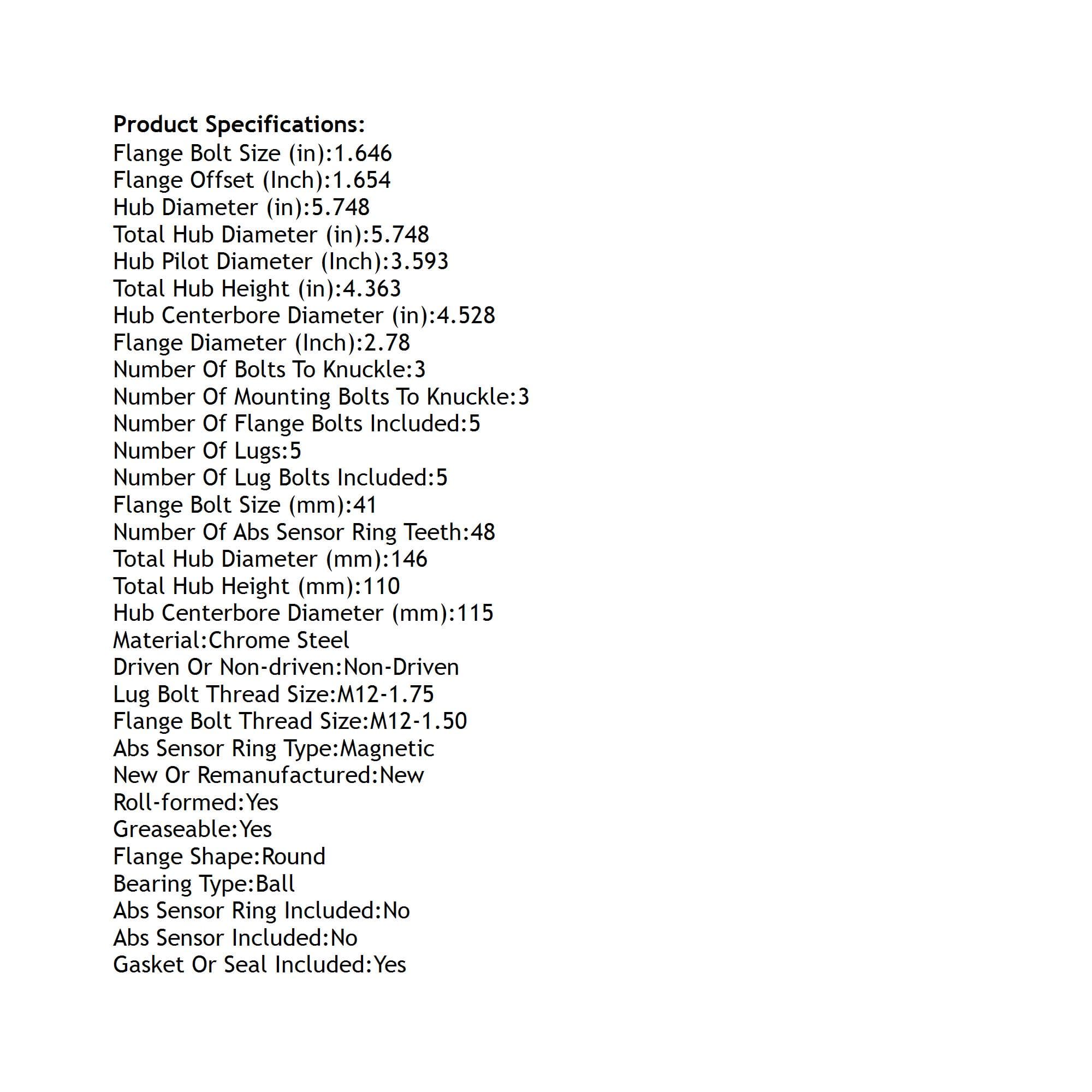

Rareelectrical Compatible With Cadillac,Ats This Item Fits Various Applications By Part Number. Please Check Your Part Number To Ensure Fitment. Product Type: Hub Assembly Specifications: Abs Sensor Included: No Abs Sensor Ring Included: No Abs Sensor Ring Type: Magnetic Bearing Type: Ball Driven Or Non-Driven: Non-Driven Flange Bolt Size (In): 1.646 Flange Bolt Size (Mm): 41 Flange Bolt Thread Size: M12-1.50 Flange Diameter (Inch): 2.78 Flange Offset (Inch): 1.654 Flange Shape: Round Gasket Or Seal Included: Yes Greaseable: Yes Hub Centerbore Diameter (In): 4.528 Hub Centerbore Diameter (Mm): 115 Hub Diameter (In): 5.748 Hub Pilot Diameter (Inch): 3.593 Lug Bolt Thread Size: M12-1.75 Material: Chrome Steel New Or Remanufactured: New Number Of Abs Sensor Ring Teeth: 48 Number Of Bolts To Knuckle: 3 Number Of Flange Bolts Included: 5 Number Of Lug Bolts Included: 5 Number Of Lugs: 5 Number Of Mounting Bolts To Knuckle: 3 Roll-Formed: Yes Total Hub Diameter (In): 5.748 Total Hub Diameter (Mm): 146 Total Hub Height (In): 4.363 Total Hub Height (Mm): 110 Replaces: Autopart International: 1411-540732 Centric Parts: 40662005 Moog Hub Assemblies: 513380 Applications: Cadillac Ats (2013-2019) Source: Aftermarket One Year Manufacturer's Warranty.
