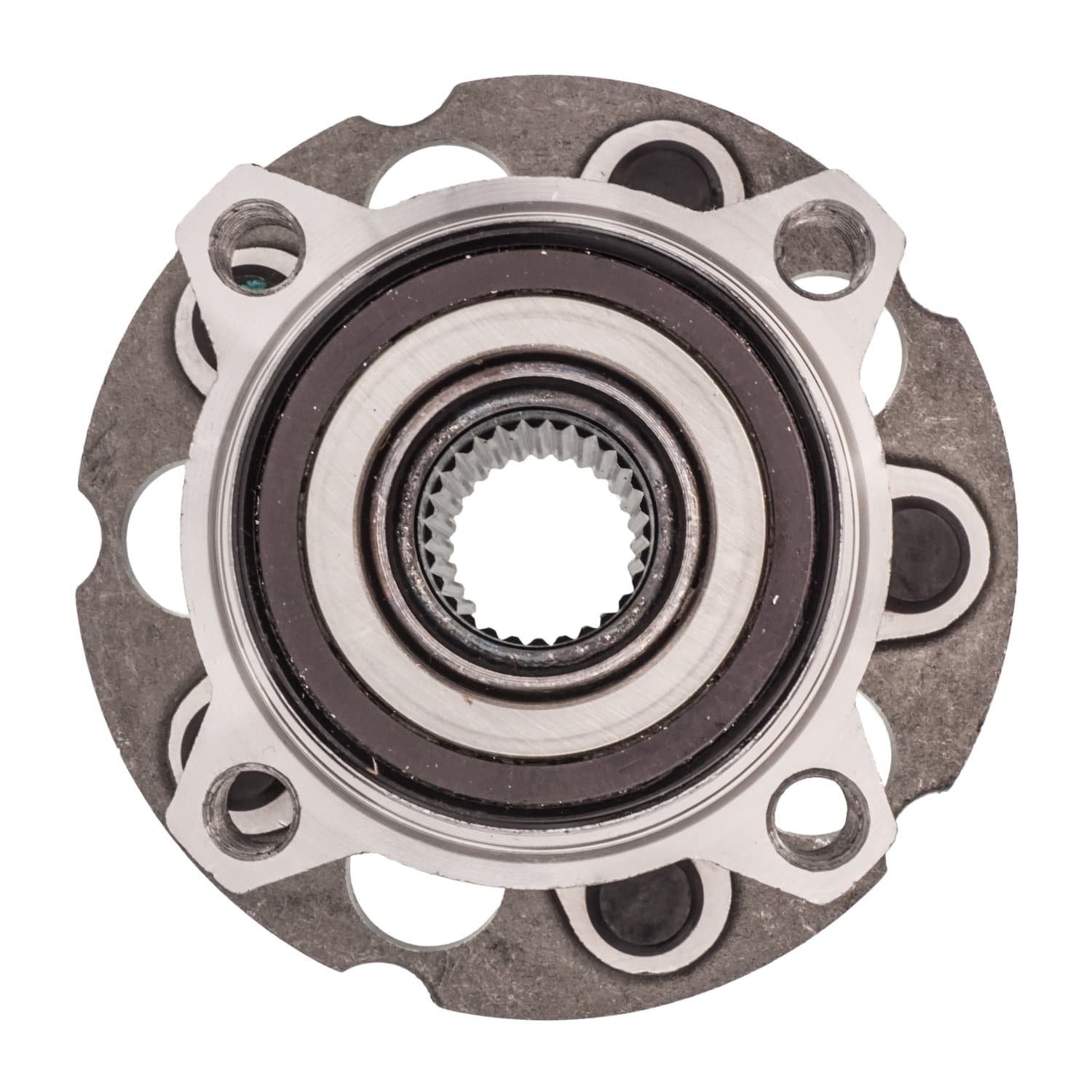

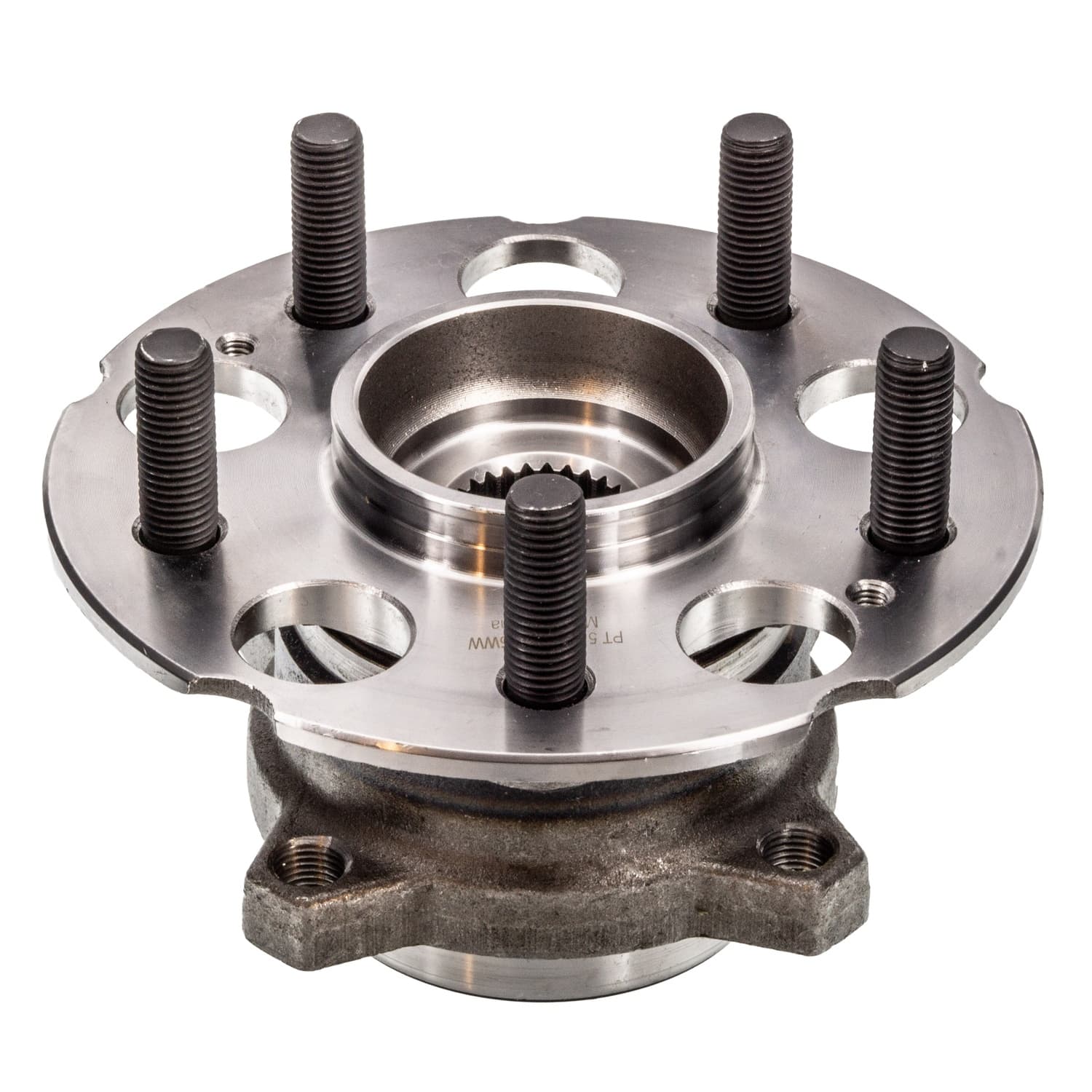

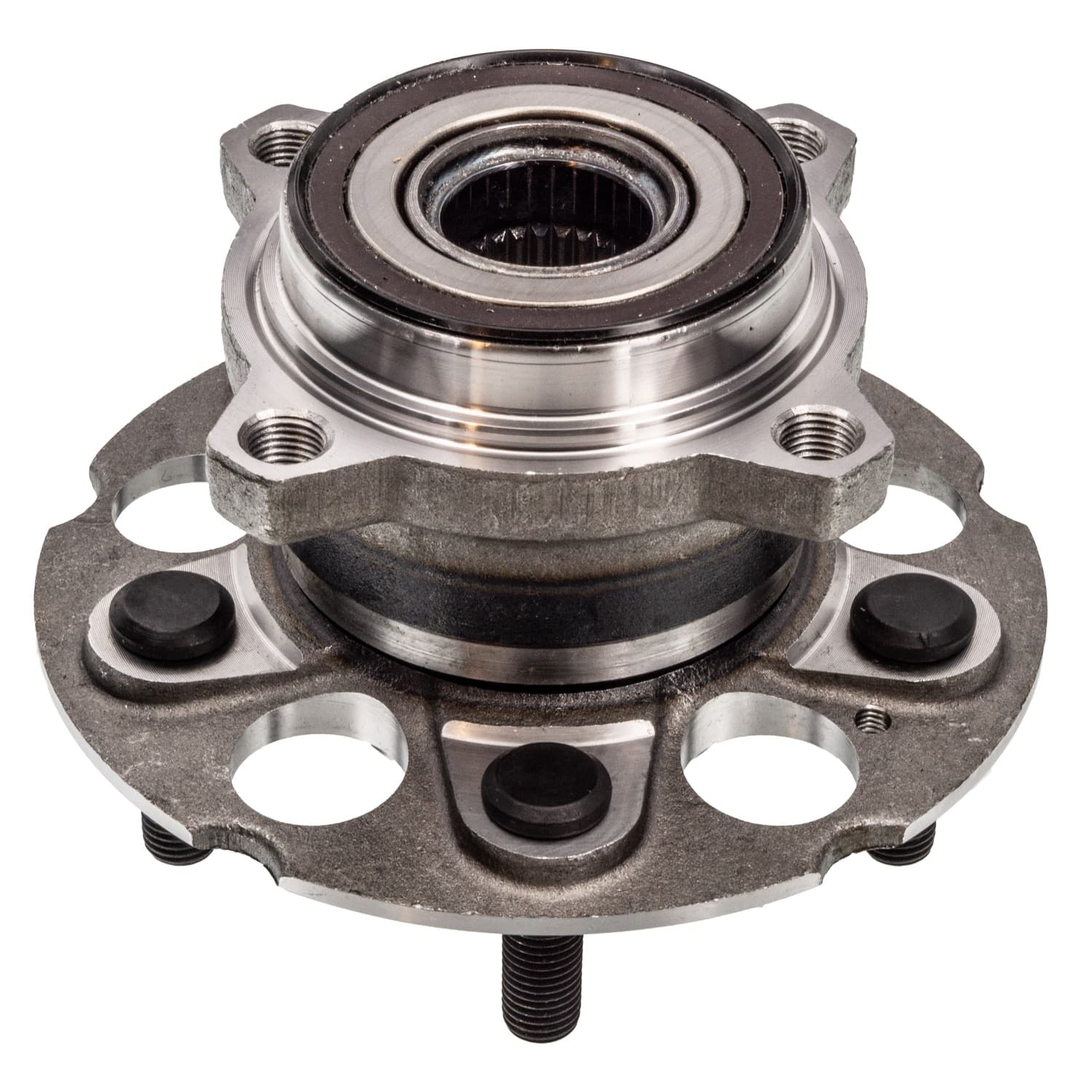

New Hub Assembly Compatible With Acura TLX 2.4L 3.5L 2015 2016 2017 2018 2019 2020 By Part Numbers PT512562

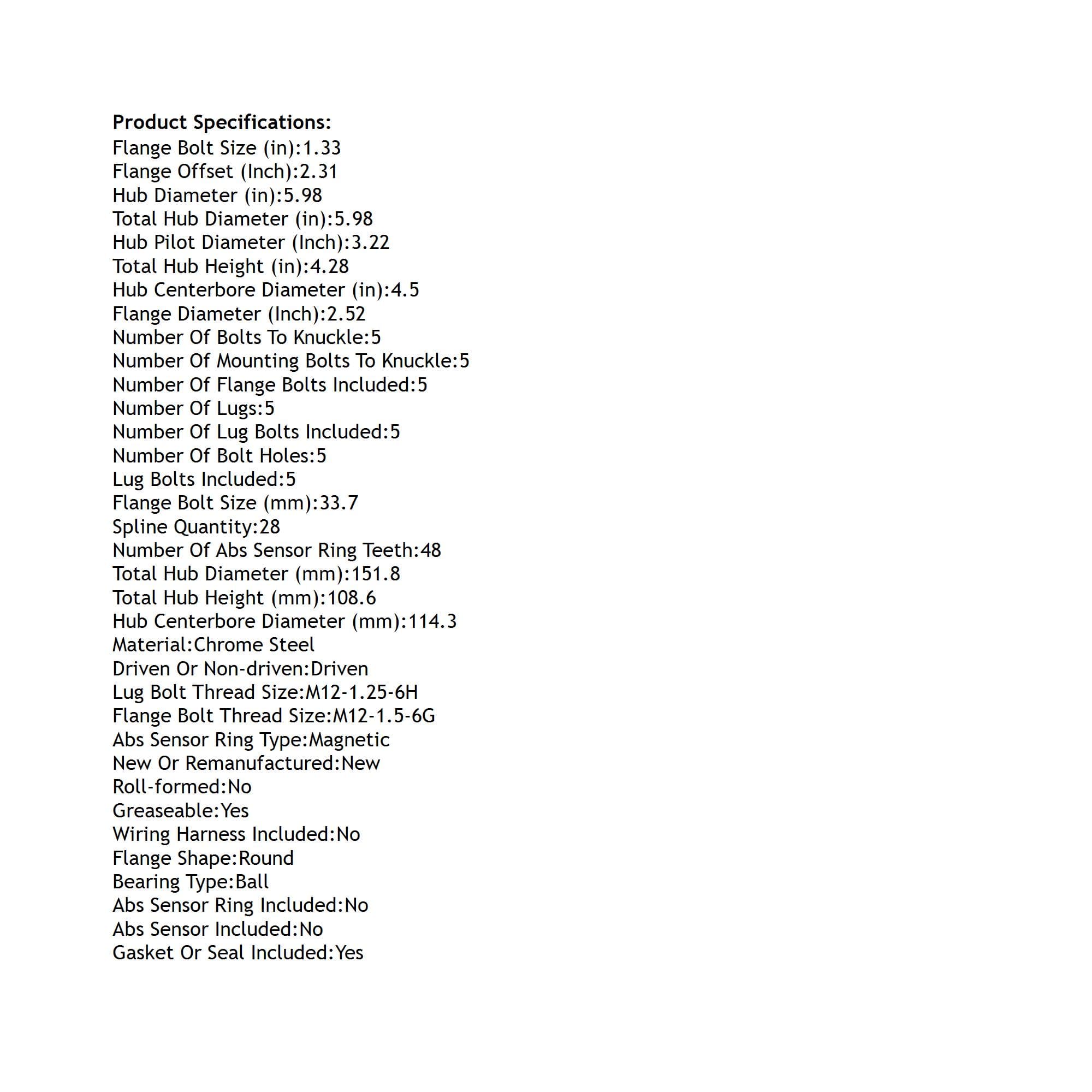

Rareelectrical Compatible With Acura,Tlx This Item Fits Various Applications By Part Number. Please Check Your Part Number To Ensure Fitment. Product Type: Hub Assembly Specifications: Abs Sensor Included: No Abs Sensor Ring Included: No Abs Sensor Ring Type: Magnetic Bearing Type: Ball Driven Or Non-Driven: Driven Flange Bolt Size (In): 1.33 Flange Bolt Size (Mm): 33.7 Flange Bolt Thread Size: M12-1.5-6G Flange Diameter (Inch): 2.52 Flange Offset (Inch): 2.31 Flange Shape: Round Gasket Or Seal Included: Yes Greaseable: Yes Hub Centerbore Diameter (In): 4.5 Hub Centerbore Diameter (Mm): 114.3 Hub Diameter (In): 5.98 Hub Pilot Diameter (Inch): 3.22 Lug Bolt Thread Size: M12-1.25-6H Lug Bolts Included: 5 Material: Chrome Steel New Or Remanufactured: New Number Of Abs Sensor Ring Teeth: 48 Number Of Bolt Holes: 5 Number Of Bolts To Knuckle: 5 Number Of Flange Bolts Included: 5 Number Of Lug Bolts Included: 5 Number Of Lugs: 5 Number Of Mounting Bolts To Knuckle: 5 Roll-Formed: No Spline Quantity: 28 Total Hub Diameter (In): 5.98 Total Hub Diameter (Mm): 151.8 Total Hub Height (In): 4.28 Total Hub Height (Mm): 108.6 Wiring Harness Included: No Replaces: Autopart International: 1411-605202 Bca: We61886 Moog Hub Assemblies: 512562 Applications: Acura Tlx (2015-2020) Source: Aftermarket One Year Manufacturer's Warranty.
