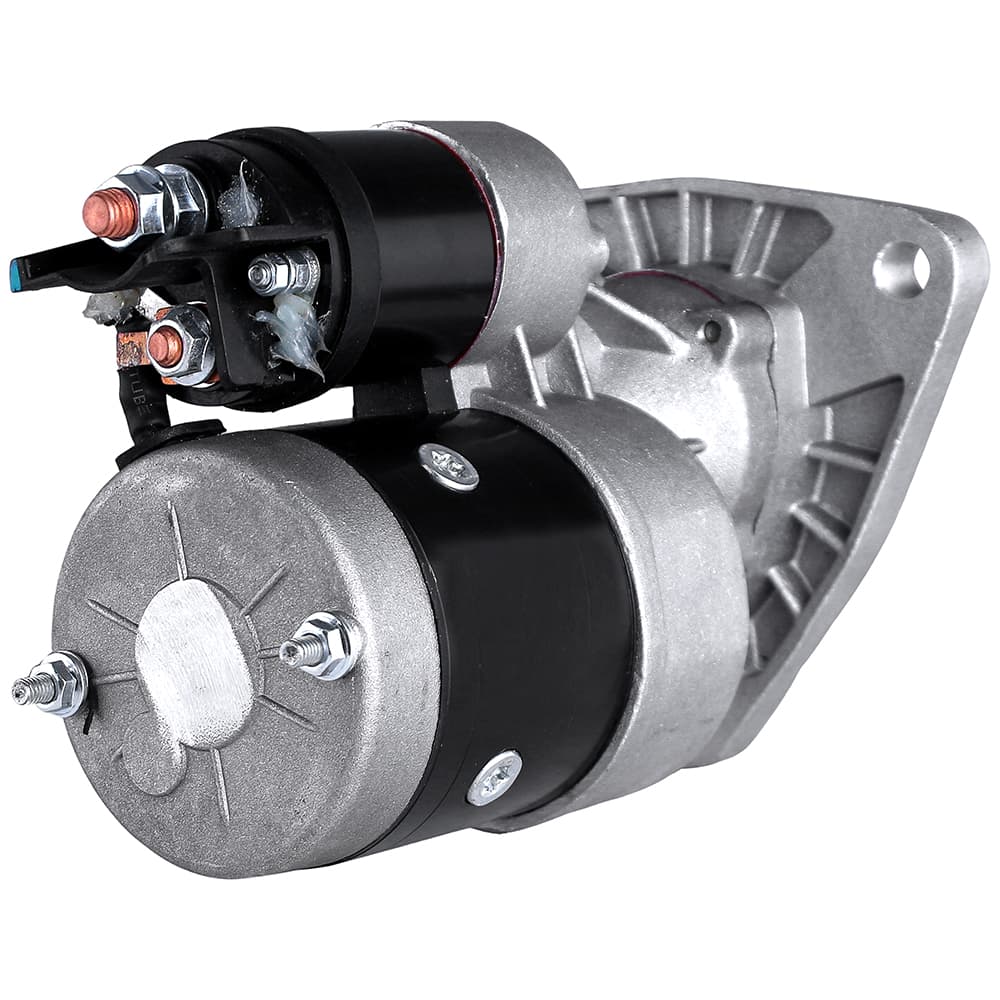

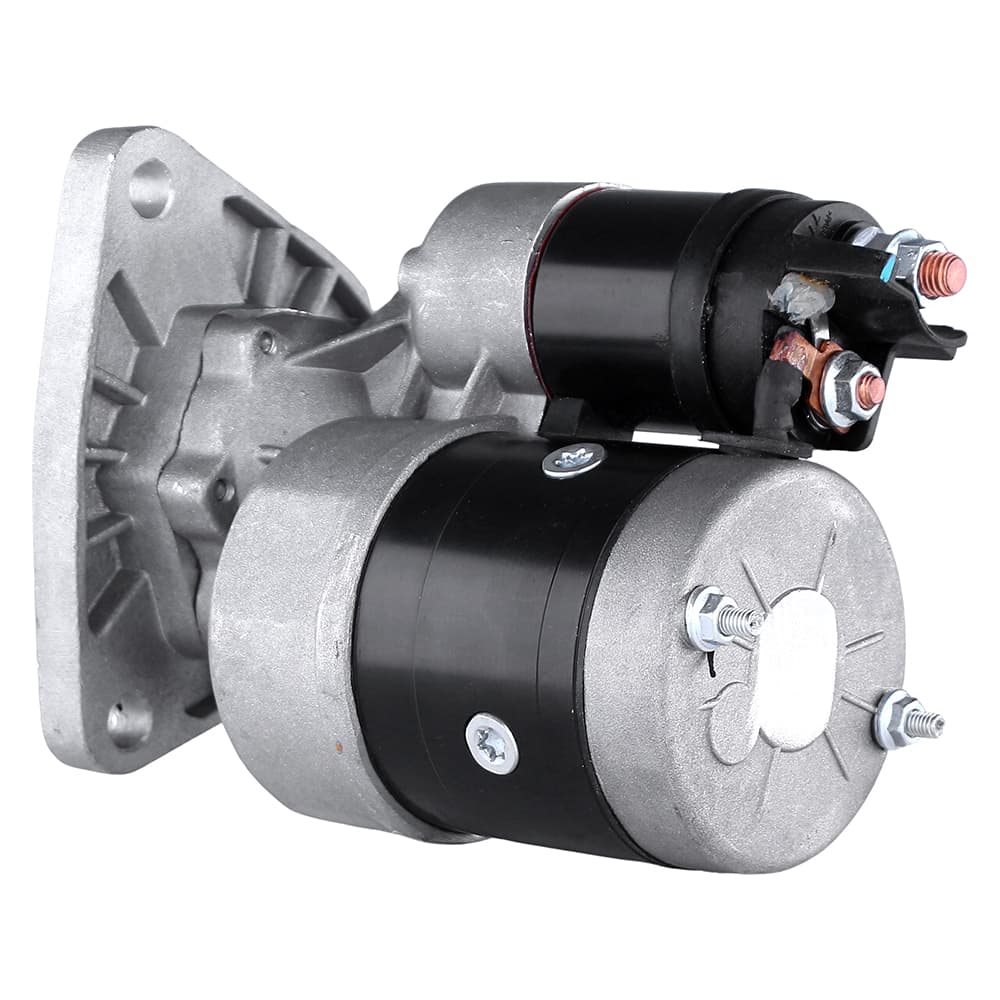

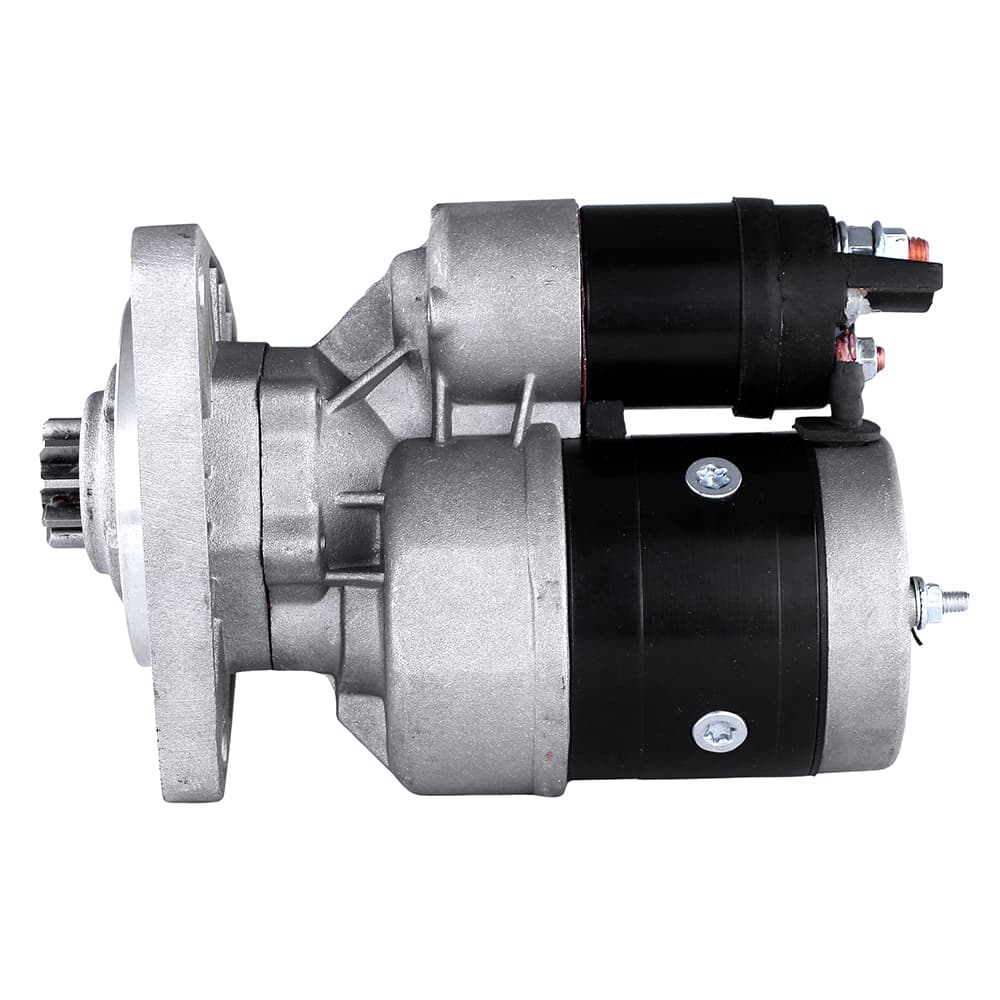

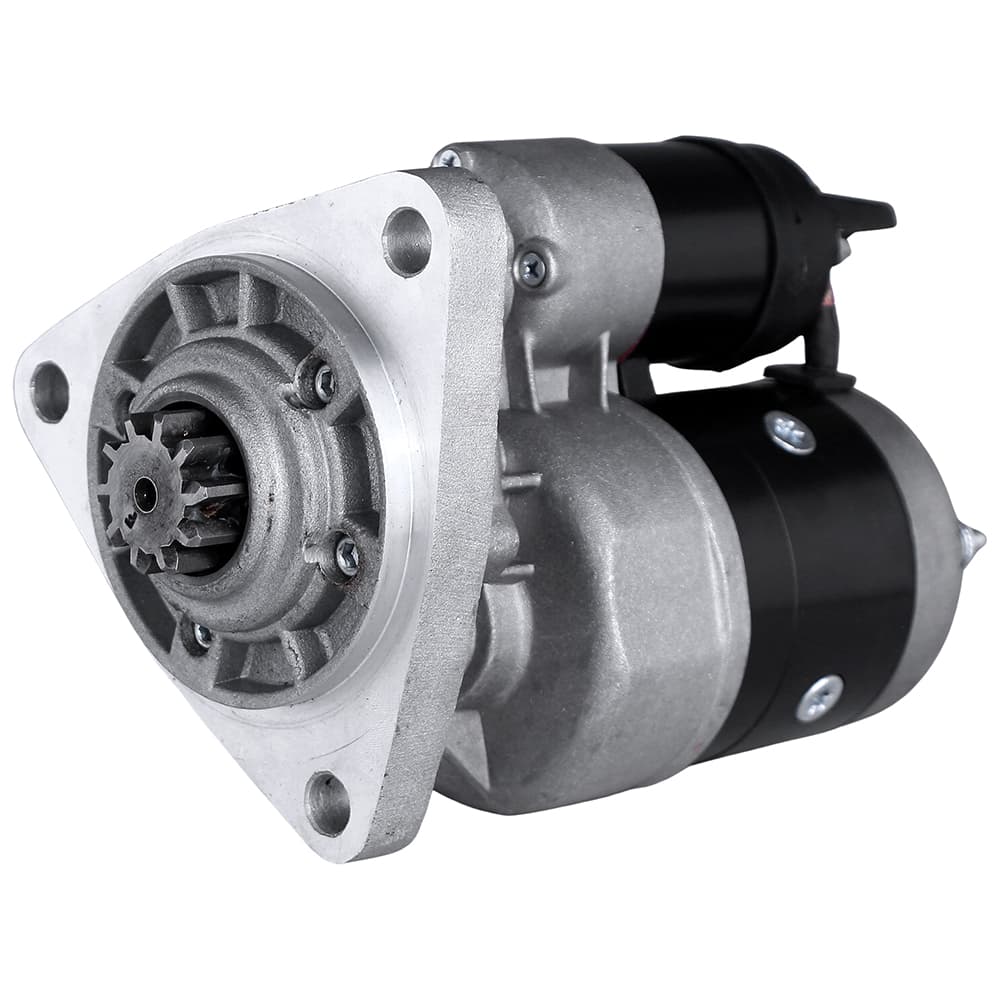

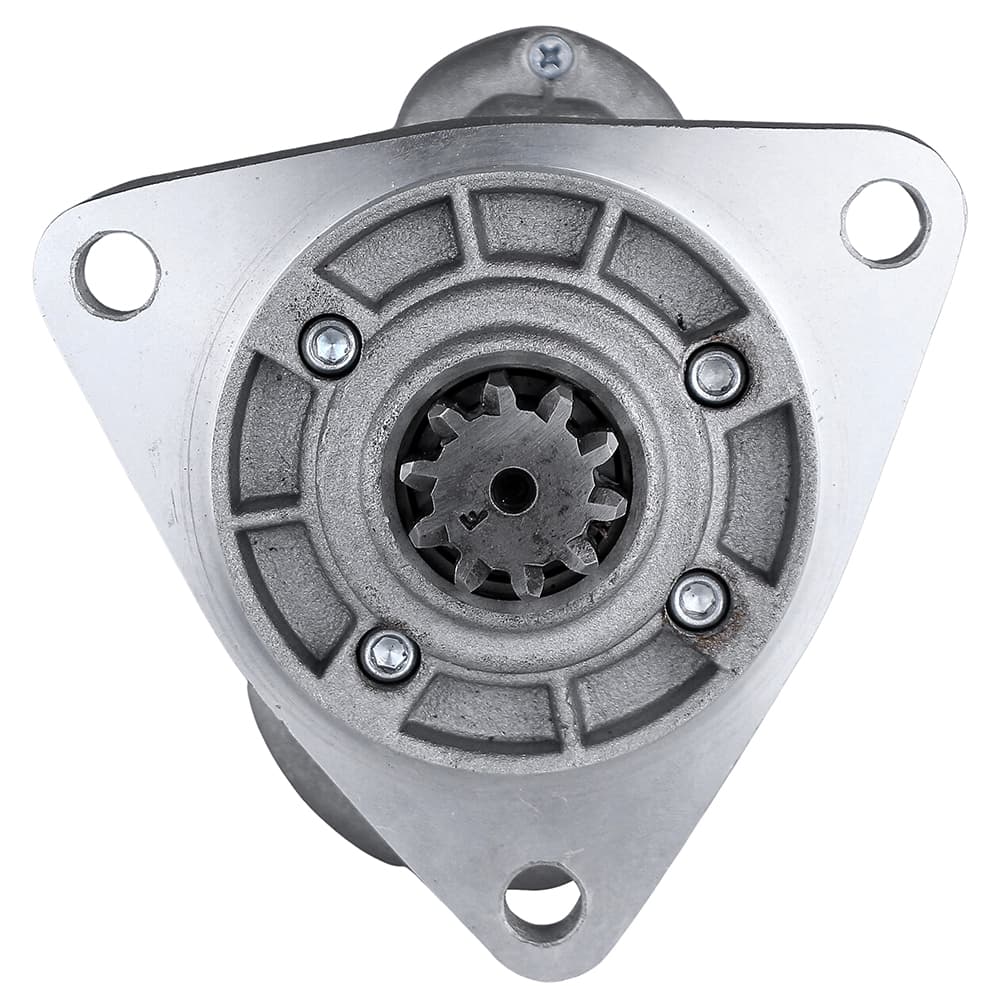

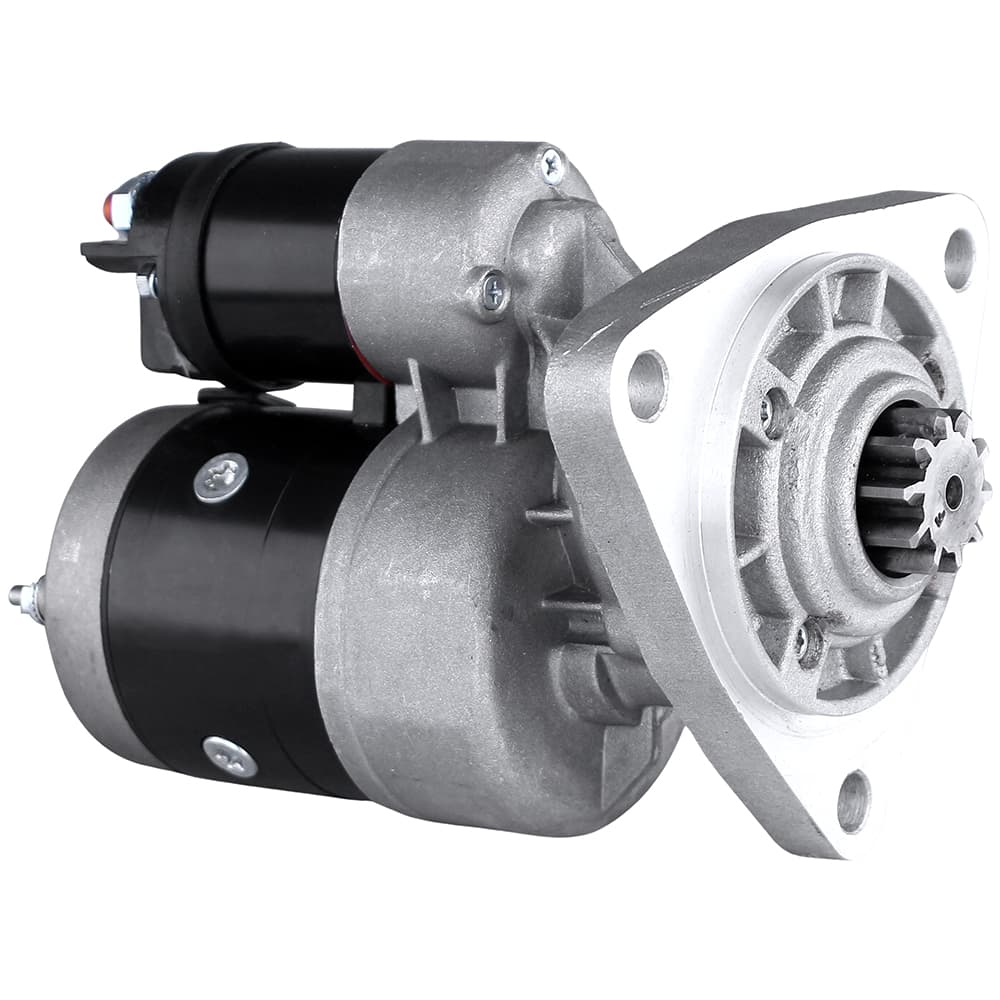

Rareelectrical Tractor Parts Starter sku-837837239

Rareelectrical Tractor Parts starter, sku-837837239, UPC 683058039033. This aftermarket Belarus-type starter is listed as compatible with Belarus, Cat, Letrika, Lucas and Mahle references. The listed Belarus tractor applications are 500 and 505 4-cylinder, 65Hp models from 1979-1991, plus the 5111 and 5145 4-cylinder, 55Hp models and the 520 4-cylinder, 65Hp model from 1979-1991.

Listed references include Belarus 24063708000, Ct212a and 920001103; Letrika (Iskra) 11.130.436, Is 0436, Is-1328, Is 1328 and Azj3124; Lucas Lrs01368; and Mahle Ms 185, Ms0620, Ms-0620, Ms-202, Ms 620 and Ms620. The unit is DD type with 12V voltage, CW rotation, 10 teeth and 3Kw / 4.02Hp power. Gear OD is 1.476In / 37.5Mm; length is 10.276In / 261Mm.

Mounting ears 1, 2 and 3 each have a 12.5Mm unthreaded hole and a 4.941In / 125.5Mm center-to-center measurement. Registry OD is 3.937In / 100Mm. Connections are M10-1.5 B+ and motor studs with a spade S terminal. Weight is 33.37 Lbs / 15.17 Kg. It has a one-year manufacturer's warranty.
