Eugene Color Hand Tools 3-Axis DRO Other sku-6868420245

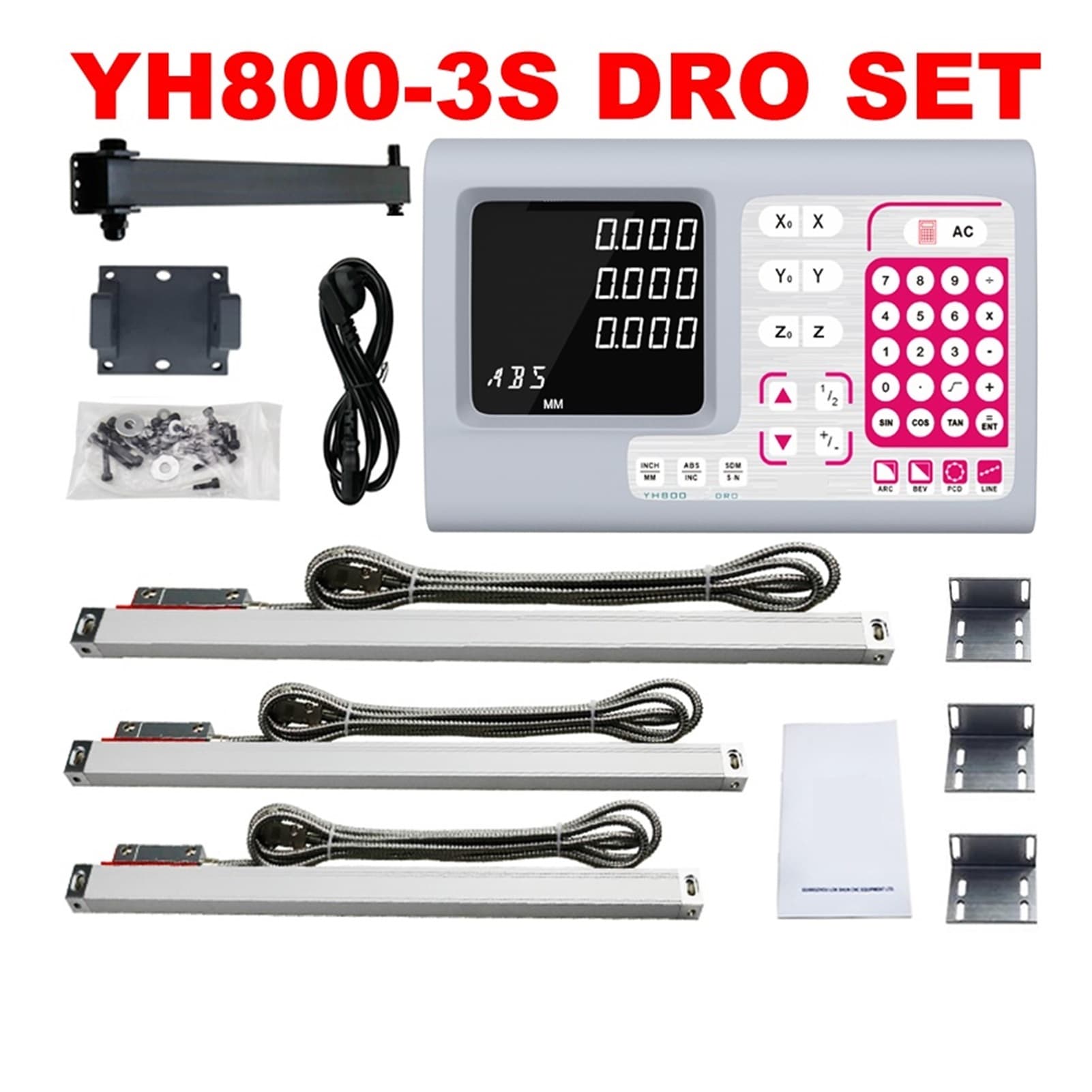

Eugene Color's Other Hand Tools kit, SKU sku-6868420245, contains a 3-axis YH800-3 LCD digital readout and 3 Pcs of 5u linear optical rulers; the set is also listed as 3 PCS. The stated ruler dimension range is 50-1000mm. The readout is intended for mills, lathes, drilling, boring and wire-cutting machines.

Its functions are 1 zero clearing, 2 reset, 3 mm/inch selection, 4 ABS/INC coordinate conversion, 5 storage of 200 sub-data sets, 6 power-off memory, 7 center of 1/2, 8 linear error compensation, 9 sleep mode, 10 clearing of 200 SDM data sets, 11 ABS/INC mode, 12 calculator, 13 circular drilling, 14 oblique-line drilling, 15 inclined-plane machining, 16 circular-arc machining, 17 lathe function, 18 gradual rectangular-lumen processing, 19 digital filtering, 20 vibration filtering, 21 radius/diameter function and 22 lathe function.

The compact YH800-3 accepts TTL signals and resolutions of 10um, 5um, 2um, 1um and 0.5um. The rulers have a travel length of 0-1000mm / 0-40inch and an overall length equal to travel length plus 140mm (0-1140mm). They use a DB9 connector, 0.005mm (5u) resolution, 5V input, 0.02mm grating pitch (50LP/min) and a 3 Meter cable. Normal size is listed as about 22*34.

Signal pins are 2 Black 0V, 6 Green A, 7 Red 5V and 8 White B.
