Rareelectrical 12V Other sku-157655461 686696247488

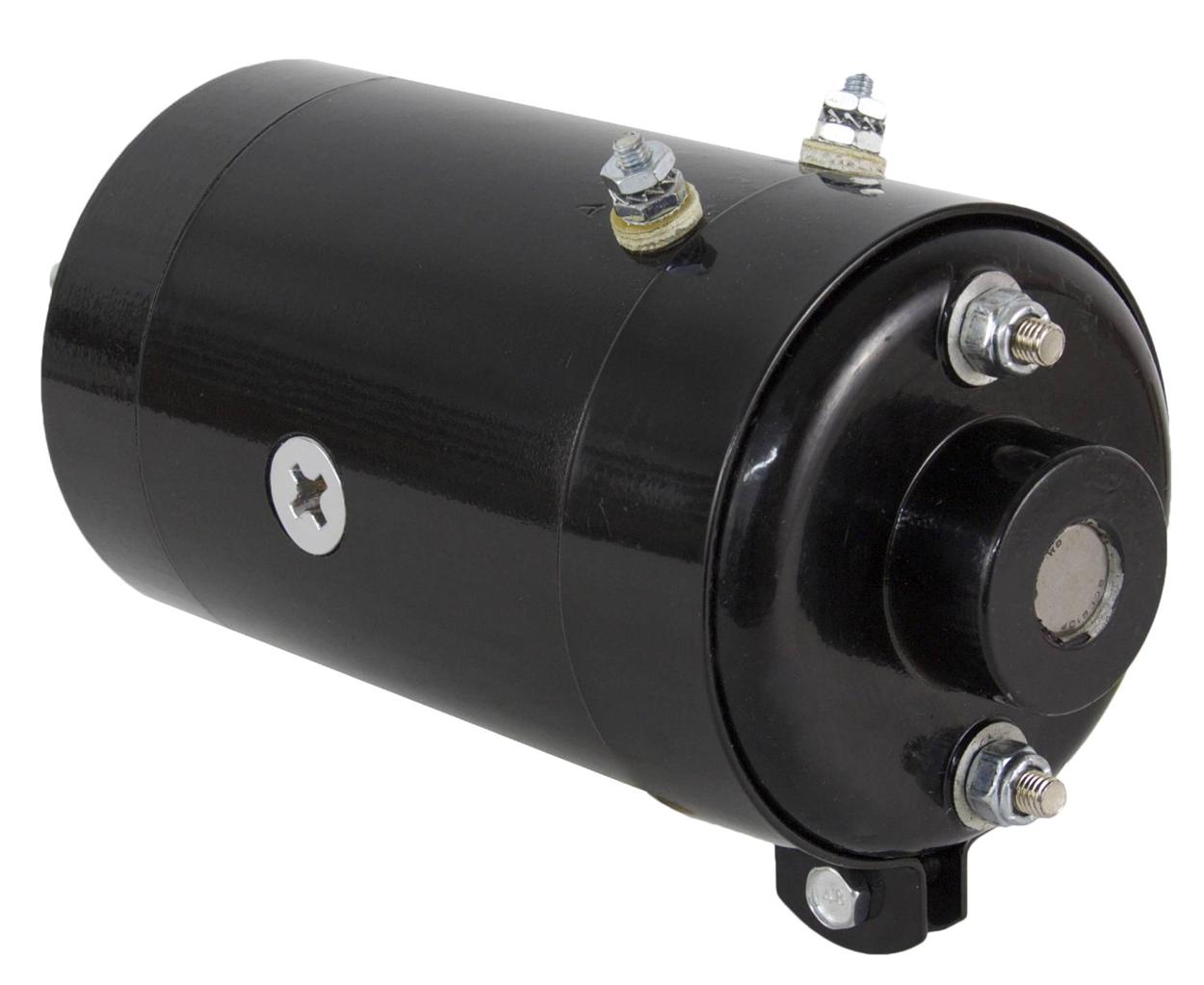

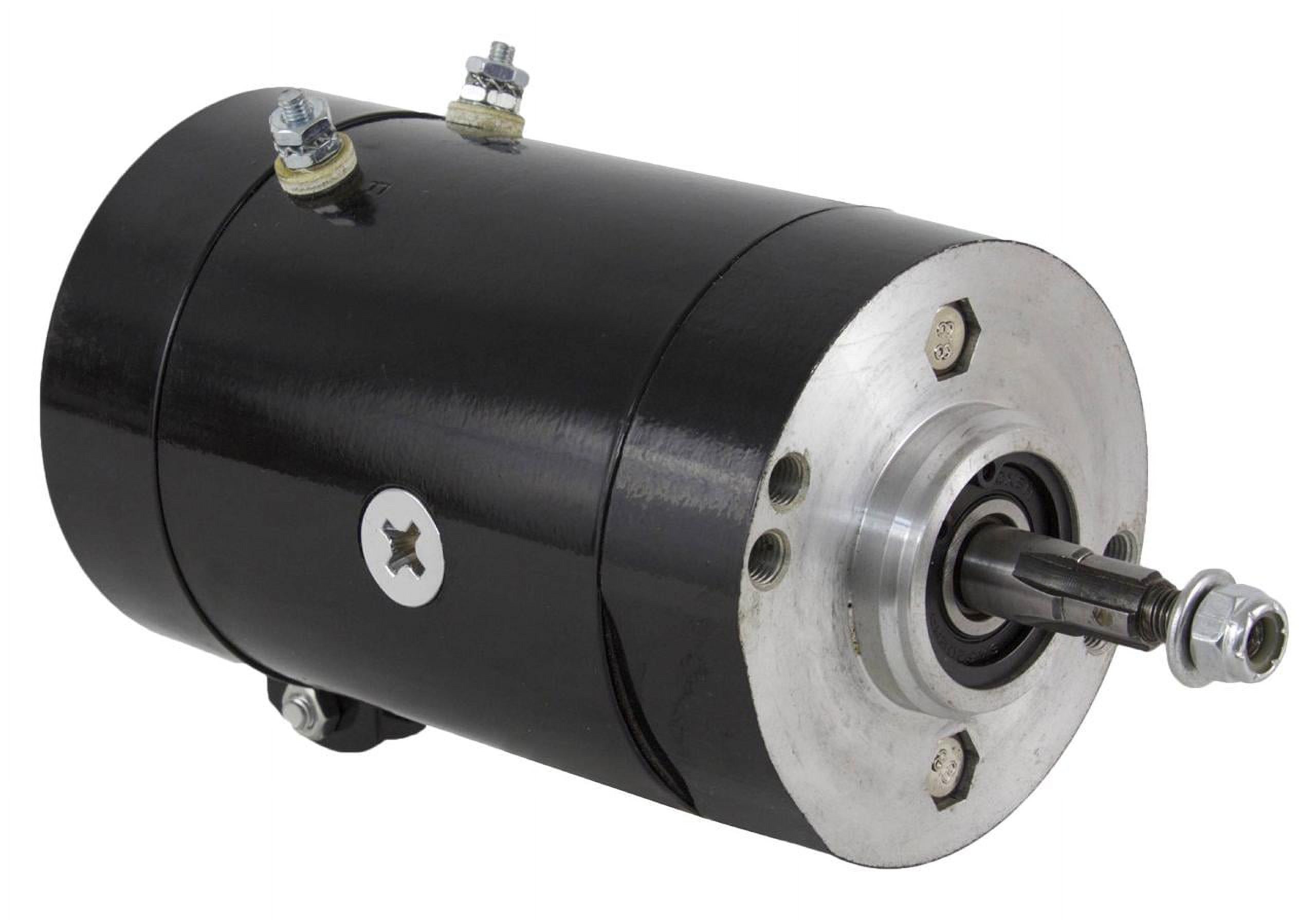

Rareelectrical sku-157655461 is a new, aftermarket generator listed under Replacement Auto Parts, color Other, UPC 686696247488. The title lists it as a 12V, 10AMP CCW generator compatible with Harley Davidson Sportster 1965-1984 and references 2997565 and 2997565A. Verify the OEM number on the original unit before ordering. The listed applications are Harley Davidson FL Series (pre-1977), 69-65, all 12 volt; the 6 volt generator has no listings. Also listed are XLH Sportster 84-82 1000Cc with buffed end cover and 81-79 1000Cc; XLHA Sportster anniversary model 82 1000Cc with buffed end cover; XLS Roadster 84-82 1000Cc with buffed end cover and 81-79 1000Cc; XLSA Roadster anniversary model 82 1000Cc with buffed end cover; XLX-61 84-83 1000Cc through mid-1984 with buffed end cover; and XR1000 84-83 1000Cc through mid-1984 with buffed end cover. Reference numbers are Harley Davidson 29975-65, 29975-65A and 29975-65B, and Hitachi G113-01A. The Harley Davidson unit has 12-volt output, 10 amps and CCW rotation. Field housing outer diameter is 95.1Mm / 3.744In; overall length is 233.6Mm / 9.197In; shaft diameter is 13.2Mm / 0.520In. The shaft has 4 straight splines and a keyway behind the threads. Terminal 1 and terminal 2 are both size 10-32. Approximate weight is 9.865 Lbs / 4.48 Kg. The source describes the generator as "Black" and lists a one-year manufacturer's warranty.
