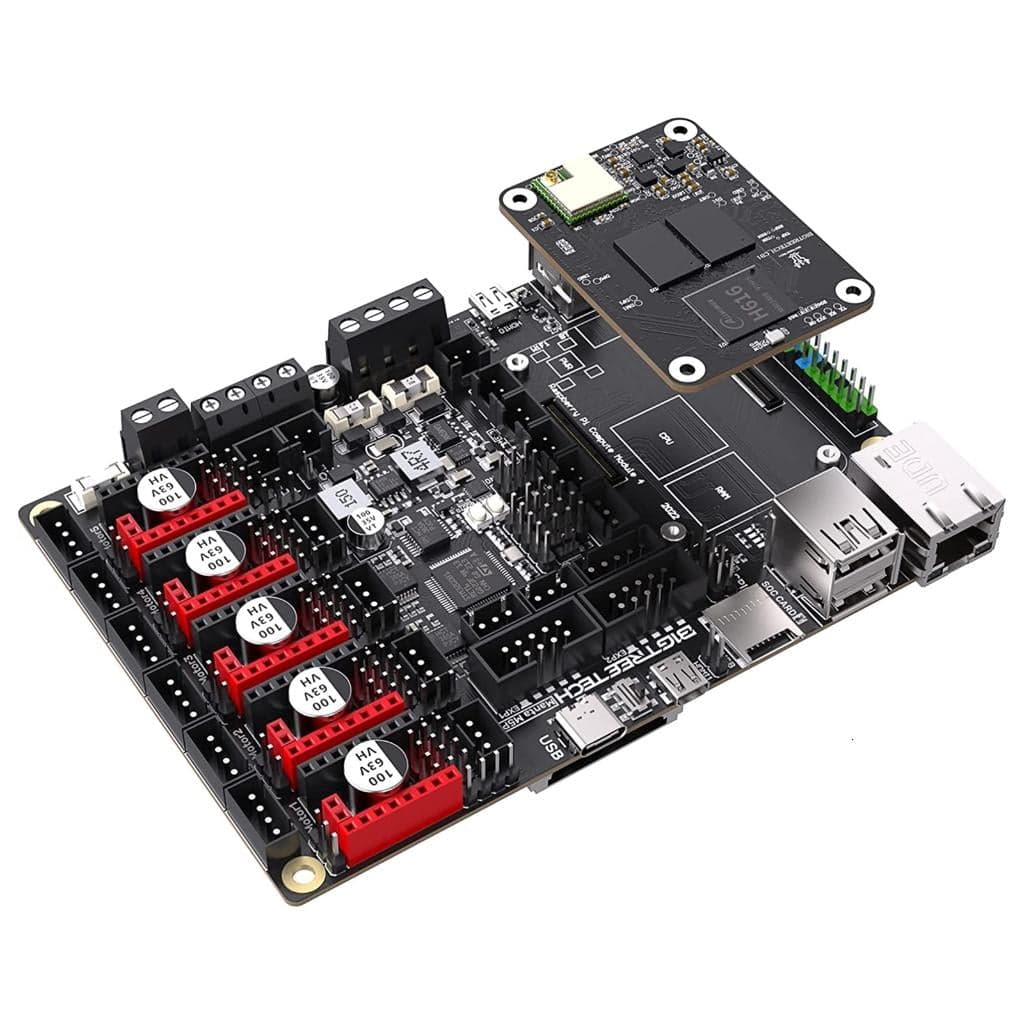

Necvior BIGTREETECH Manta M5P+CB1 64Bit Motherboard ARM Cortex-A53 @ 1.5GHz processor

Designed for Klipper: the BIGTREETECH Manta M5P V1.0 control board paired with the CB1 V2.2 core board can boot a Linux system and run Klipper directly. If the CB1 is not used, the Manta M5P can run Marlin Firmware. CB1 Core Board Details: the CB1 is a quad-core architecture is 62bit processor (ARM Cortex-A53 @ 1.5GHz) with 1GB DDR3 RAM. It supports 100M Ethernet +100M WIFI, runs Linux, supports Debian, is programmable and built for high speed and stable performance—ideal for DIY projects. Ports and Display Options: includes an onboard HDMI interface so video can be sent to a BIGTREETECH HDMI 5/HDMI7 Screen with a single HDMI cable. An SPI interface is available for use with SPI touch screens to provide responsive, intuitive control. A Plug and Play USB Camera port lets you monitor 3D prints wirelessly. Additional Upgrades and Hardware Features: supports integrated SPI and UART mode for TMC drivers plus DIAG pin functionality, configurable easily using jumpers. The board uses a replaceable fuse and high efficiency Mostfet to reduce heat generation. MCU firmware can be updated via an SD card or via DFU using Klipper's make flash command. After-Sales Support: if you experience any issues with the BTT Manta M5P+CB1 core board combo, contact us at any time—we offer a professional technical supports team to assist you promptly.
