Multinautic QP-400_21011 sku-50641574 Aluminum Dock Kit

The Multinautic QP-400_21011 is a Silver, 4' x 8' stationary dock structure kit listed under Boating. SKU: sku-50641574. UPC: 628888210115. Made from 6005-T5 aluminum for freshwater installation, the QP-400 dock adjusts in height for access to kayaks, canoes and paddleboards and supports up to 1200 lbs. Its lightweight post-mounted design must be removed before winter ice forms.

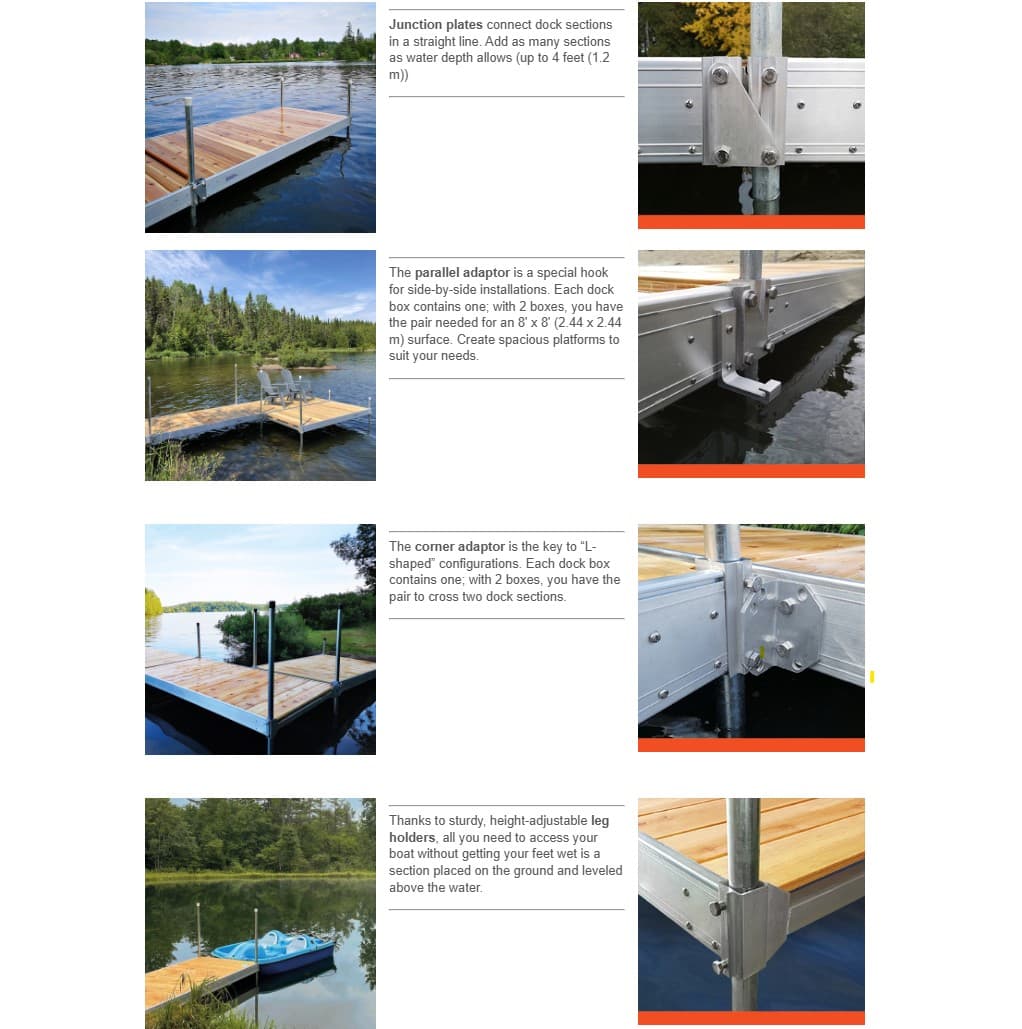

It has a 1-year limited warranty against manufacturing defects. Plank ends fit inside the side walls, and assembly from below leaves no visible screw heads; planks and screws are not included. Hardware is supplied to join 2 docks end to end, side by side or in an L shape.

The kit contains one 48" central support, two 48" end pieces, two 96" side extrusions, 2 galvanized steel 6" x 6" base plates, two 6' leg piles, 2 PVC pile caps, 2 junction plates, 1 lateral and corner adapter, 1 parallel adapter, 8 stainless-steel bolts measuring 1" x 1/2", and 24 stainless-steel bolts, nuts and lock washers.

A central hole lets the post anchor into the lake bed while the base plate limits sinking. Adjust the posts using the 1/2" stainless-steel corner bolts. Finish the deck with 1-in boards, commonly called 5/4" boards, and refer to the available PDF assembly guide.
