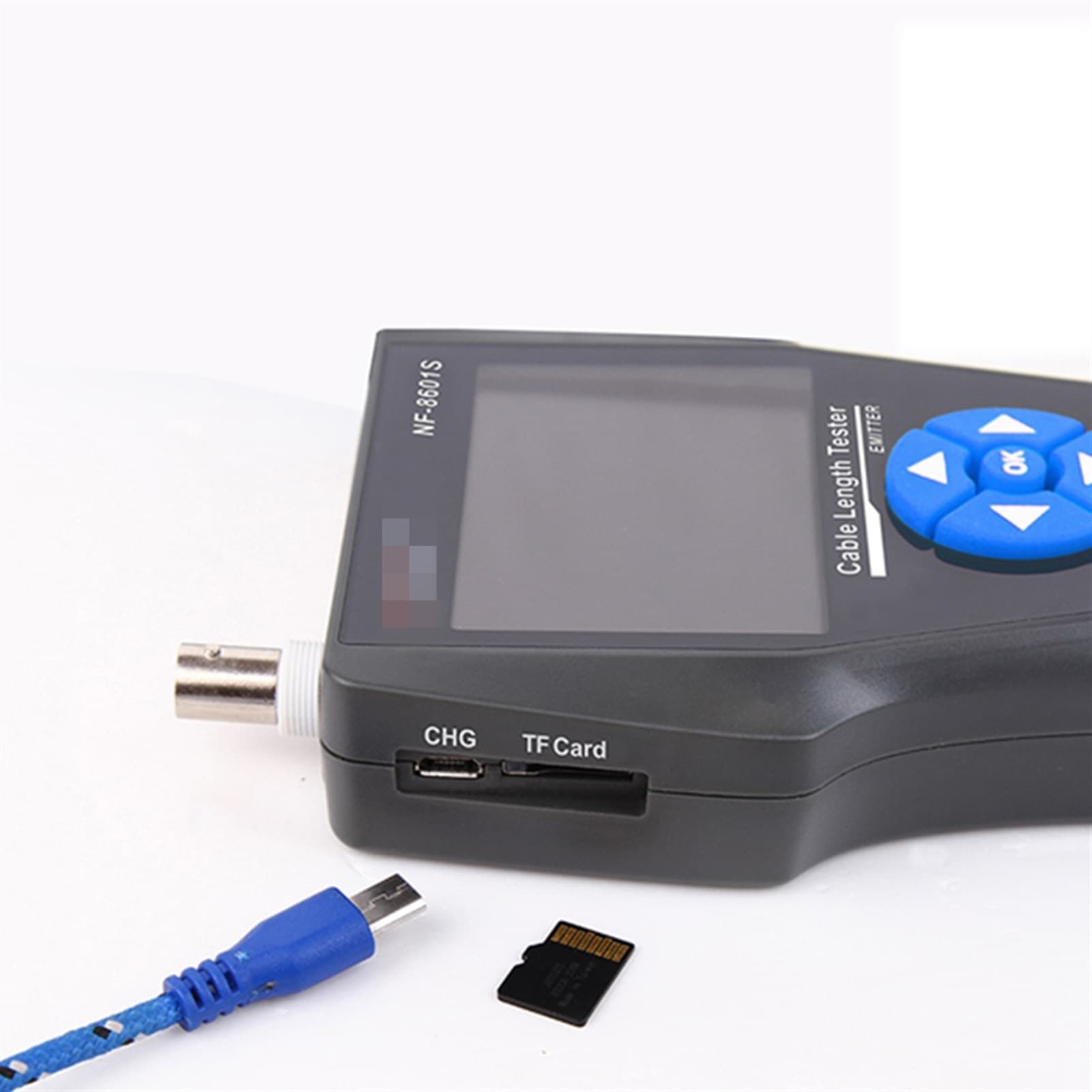

Multi-functional Lan Cable Tester Check The PING , POE Cross-talk Functions Measure Network Cable Length ,Fast Responses

Functions: 1. TDR theory to measure length of cat5e, cat6 and cat7 cable, coaxil cable, telephone cable. 2. Wiremapping with length and provide the distance to fault information. 3. PoE function: identify which pins are providing power and detect how much voltage. 4. PING function to test network performance, data packet, MIN&MAXtime5. Quickly find the targeted cable without stripping isolation among unknown cables. 6. Hub blinks for locating network port by the flashing port light on Hub / Switch. 7. Voltage detector: included in receiver (90~1000V) Specification: 1. Tone traces cable with complete AC fliter. 2. TF card function to export data from computer (50sets, TXT format) 3. 2 scan modes: common switch and PoE switch 4. 3.7V lithium battery for power supply and 2.8 inch color screen Technical indexes: F-8601S Transmitter specifications IndictorLCD 320x240 mm, with backlight Cable test typesSTP/UTP 5E,6E network , telephone , coaxial cable. Max. distance of wiremap1000 m Max. distance of tracing1000m Max. distance of cable length1000 m Min. distance of calibration50 m Accuracyup to 98% ( after calibration ) Compatible connectorsRJ11, RJ45, PING/POE, BNC Cable map indicationLCD (#1-#8) Battery Type3.7V lithium battery 1800mAh Work temperature / humidity10 ~ -60 / 0~70 Dimension(LxWxD)173x92x34mm NF-8601S Receiver specifications Cable huntingRJ11,RJ45, BNC Types of cable 2 cores Battery Type3.7V lithium battery 1800mAh Dimension(LxWxD)183x58x35 mm NF-8601S Remote unit specifications Compatible connectorsRJ11,RJ45, BNC Dimension(LxWxD)106x32x30mm Accessories Included: Bulit-in battery x 2 set Adapted telephone line x 1 set Adapted network cable x 1 set Cable clips x 1 set Charging adaptor x 1 set Toolkit x 1 set Related Products: network cable tester,cable tester,ethernet tester,network & cable testers,ethernet cable tester,ethernet testers,ethernet wire tracer,fiber tester,coax cable tester,cable tracer,network tool kit,network tools,ethernet tester tool,poe testerYou may also like Cable Tester Wire Locator For RJ45 RJ11 BNC Continuity Test Polarity ,Fast Responses.
