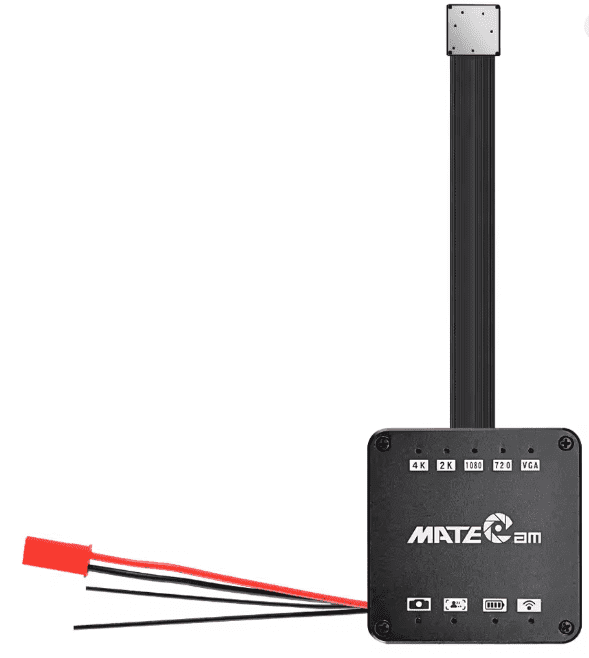

MTC_X9-PRE X9 Pro Mini Camera Module — IMX258/IMX317, Dual-Band WiFi, 4K@60FPS

Overview: Compact DIY camera module MTC_X9-PRE built around the matecam-x9 chipset. Designed for high-resolution capture and flexible connectivity in a tiny 36 x 36 x 10mm board weighing 20g. Optics & Sensor: - Image Sensor: IMX258, IMX317 - Lens: F2.0 with EFL=3.3MM - Field of View: H=86° V=56° D=95° - Flexible cable (FPC) options: 10CM / 20CM Wireless & Networking: - WiFi: Dual-band 5G / 2.4G, compatible with 802.11 a/b/g/n/ac - WiFi Modes: AP / Station - APP Support: iOS and Android (apk) - RTSP: 1080P 30FPS Video & Imaging: - Video recording modes: - 3840*2160 — 60FPS / 30FPS - 2704*1520 — 30FPS - 1920*1080 — 120FPS / 60FPS / 30FPS - 1280*720 — 240FPS / 120FPS / 60FPS - Image resolution: 14MP .JPG - Video formats: MOV / MP4 with H.264 / H.265 encoding - PC webcam mode: 1920*1080*60FPS - Digital zoom via APP: Magnify the number 4 times Storage & Output: - External memory: Micro SD card (SD, SDHC, SDXC) up to 512GB - HDMI: MINI_HDMI 4 k output - USB: USB TYPE-C Audio & Indicators: - Digital Mic: -26dB+-1 94dB SPL@1KHz - LED Indicator: 8 LED mode Physical: - Product Name: MTC_X9-PRE - Main PCB SIZE: 36 x 36 x10mm - Weight: 20g This module provides versatile recording options, dual-band WiFi for mobile and AP/station use, and multiple high-frame-rate modes for slow-motion capture — all in a compact form factor for DIY and embedded projects.
