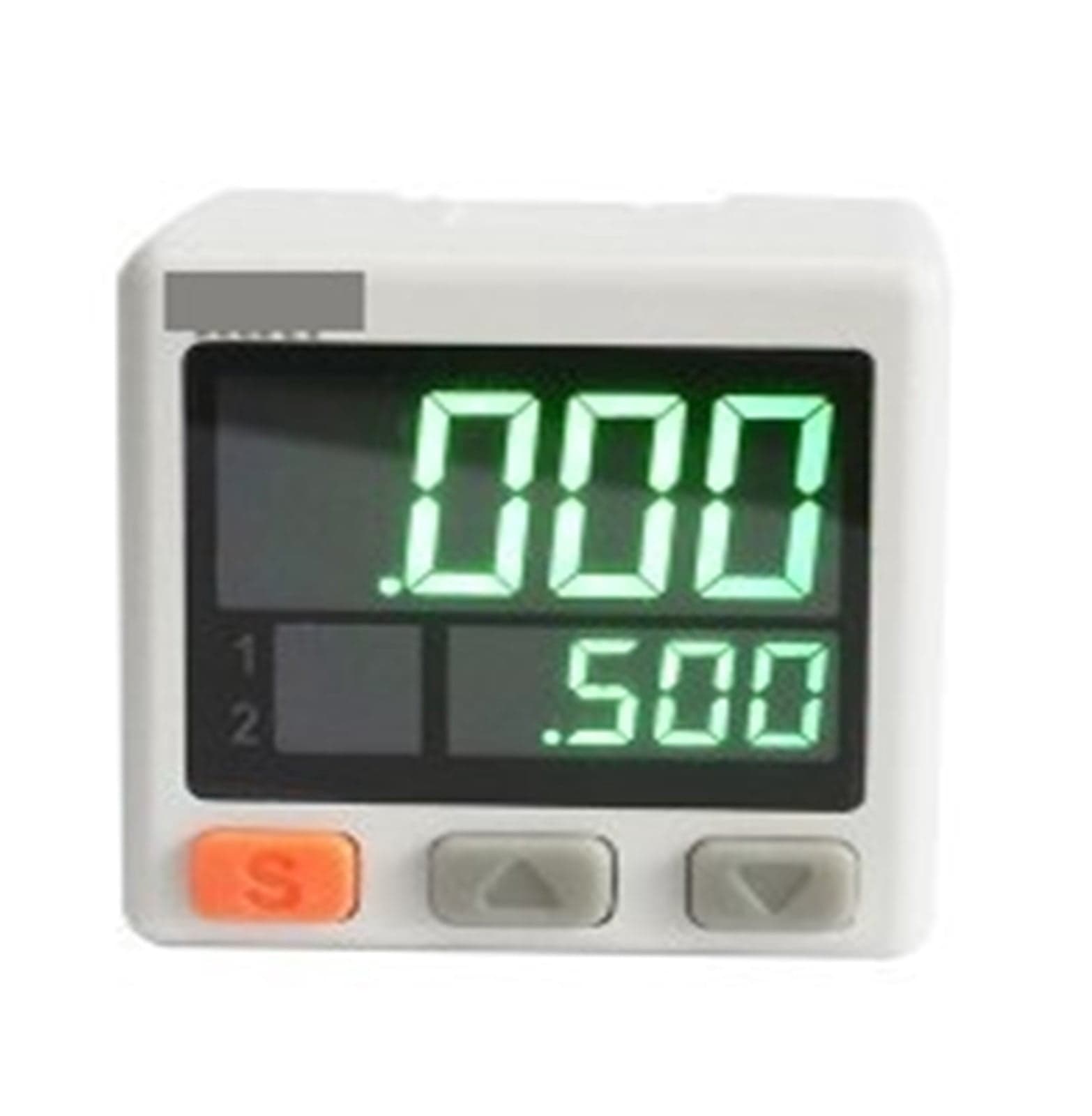

MS31 Digital Pressure Switch & Gauge — NPN/PNP, 1-5V & 4-20mA Outputs, Vacuum/Analog, Emergency Protection

MS31 series digital pressure switch with a clear numeric display; supports NPN and PNP switching and offers analog outputs (voltage 1-5V and current 4-20mA). Suitable for vacuum and positive pressure monitoring and equipped with emergency protection. Models and pressure ranges: MS31C — Rated Pressure Range: -101.3-101.3KPa; Display Pressure Range: -101.3-101.3KPa. MS31P — Rated Pressure Range: -0.101-1.000MPa; Display Pressure Range: -0.101-1.000MPa. Withstand Pressure: 500KPa / 1.5MPa. Power Supply: 12-24V DC+10%. Current Consumption: 40mA.
