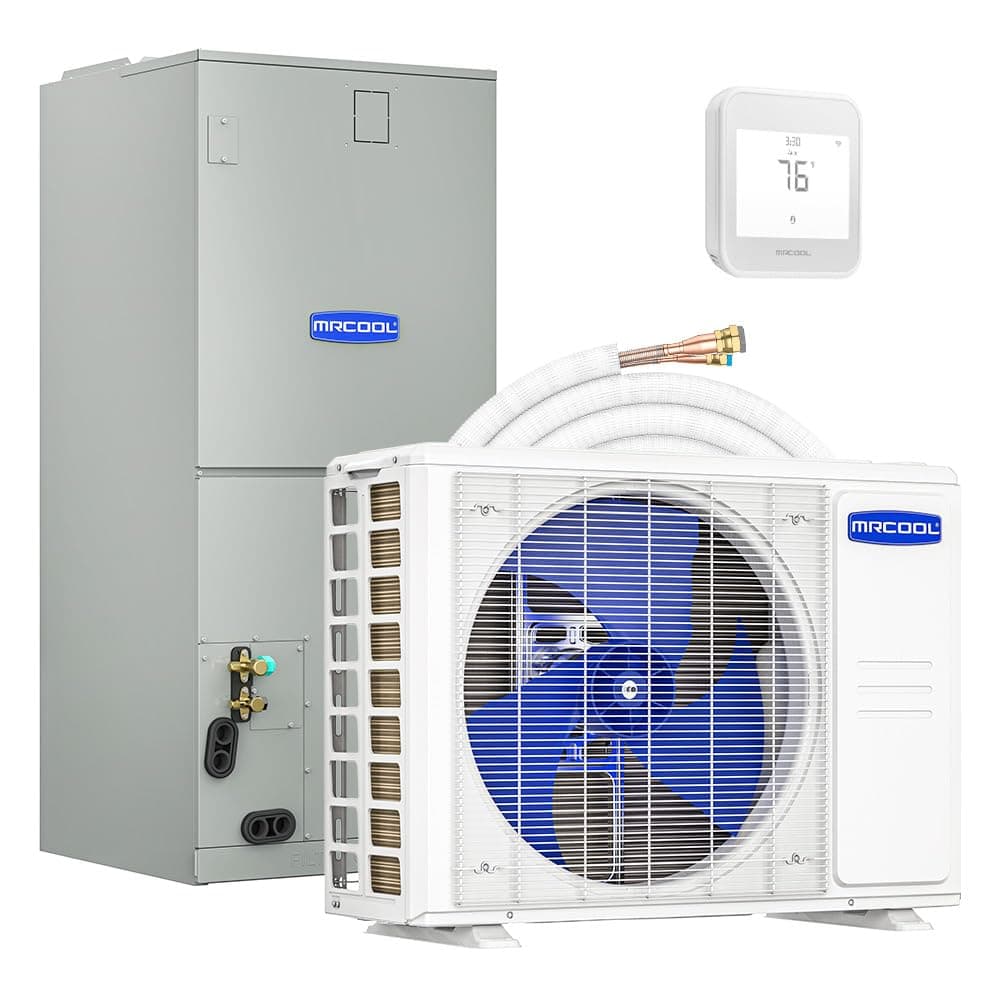

MRCOOL MVP-24-HP-C-230A00-O MRCOOL VersaPro 2 Ton Central Ducted Heat Pump Condenser

Product Description The MRCOOL VersaPro 2 Ton Central Ducted Heat Pump Condenser, model MVP-24-HP-C-230A00-O, is suitable for home climate control. This unit can provide both heating and cooling with its variable-speed design. It has a seasonal energy efficiency ratio of 18.1 and a heating seasonal performance factor rating of 9.7. > Cooling capacity of twenty-four thousand BTU. Operates with R-454B refrigerant. Constructed with painted galvanized steel for durability. Product Highlights This heat pump condenser is made for efficient climate control. It features self-diagnostic capabilities and is designed for easy maintenance. The unit operates on 208-230 volt single-phase power, making it suitable for residential systems. Product Information Standard Information > Brand: MRCOOL Model: MVP-24-HP-C-230A00-O Technical Specifications > Tonnage: 2 Ton Cooling Capacity: 24,000 BTU Heating Capacity: 26,000 BTU SEER2: 18.1 EER2: 11.0 HSPF2: 9.7 Refrigerant: R-454B Voltage: 208-230 Electrical Phase: 1-Phase Max Overcurrent Protection: 20 amps Min. Circuit Amps: 19 Liquid Line Size: 3/8 inch Suction Line Size: 3/4 inch Airflow: 1765.7 CFM Decibel Level: 60 dBA Dimensions: 13.46 inches x 35.04 inches x 26.50 inches Weight: 102 lbs Condenser Stages: Variable Speed Compressor Type: Rotary
