Unbranded Rocker Switch 710456802140 sku-18702417926

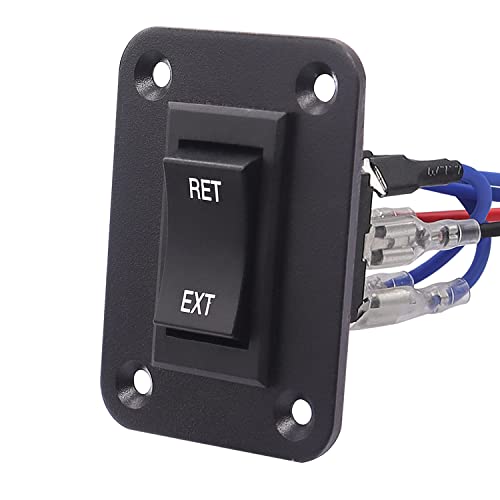

This Unbranded momentary polarity-reversing rocker switch is listed under Dimmers, Switches, and Wall Plates. It is a 6-pin, 3-position (ON)-Off-(ON) switch for controlling a motor's forward and reverse rotation or movement up and down. The listed identifier is KCD2-7-223-6PIN+M-075-1K+X. One wiring method connects the red wire to power "+", the black wire to power "-", and the two blue wires to the motor. With the other method, the middle two pins connect to the positive and negative supply poles; a device can connect to the upper or lower two pins, or two devices can be controlled at the same time. The specified maximum instantaneous peak ratings are 20A 50V DC and 15A 250V AC; do not use those ratings for extended operation. Switch dimensions are 44 x 25 x 41mm (1.73 x 0.98 x 1.6 inches); panel dimensions are 68 x 50mm (2.7 x 1.97 inches). The package contains 1 switch, 1 one-hole panel, connecting lines and 4 screws. SKU sku-18702417926; UPC 710456802140.You may also like Unbranded HDMI/USB Wall Plate sku-18728770344 746364323491.
