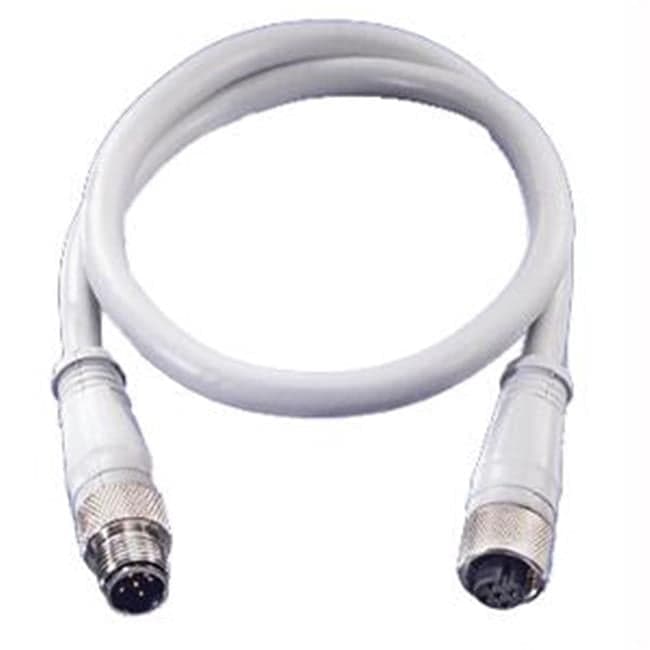

Micro Double-Ended Cordset — 3 Meter (0.59" OD) • 4.0A, 250 V — ZX9CW31799

Overview: 3 meter micro double-ended cordset with a 0.59" connector outside diameter. Designed for NMEA 2000 systems and robust outdoor use. Mechanical and contact materials: - Contact Carrier Material/Color: Thermoplastic PUR / Blue-Gray - Molded Body Material/Color: Thermoplastic PUR / Blue-Gray - Contact Plating: Brass / Gold - Coupling Nut Plating: Brass / Nickel Electrical ratings: - Current Rating: 4.0 Amps - Voltage Rating: 250 V Cable construction: - Outer Jacket Material/Color: PVC / Gray - Conductor Insulation: HDPE (data pair) and SRPVC (power pair) - Number of Conductors: 4X22 AWG 22 AWG Drain Wire - Shielding (3 levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) Environmental: - Protection Class: IEC IP68; NEMA 1, 3, 4, 6P - Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F) Approvals (cable): - UL: PLTC 75 deg C Sunlight Resistant E90625. AWM 80 deg C 300V. - CSA: CMX-OUTDOOR-CMG LL54185 75 deg C. - AWM I/II A/B 80C 300V FT4. - NMEA: NMEA 2000 Approved. SKU: ZX9CW31799
