Memphis SE3200.1V2 Street Edge Class-D Monoblock Subwoofer Amplifier — 3200W Peak (800W RMS)

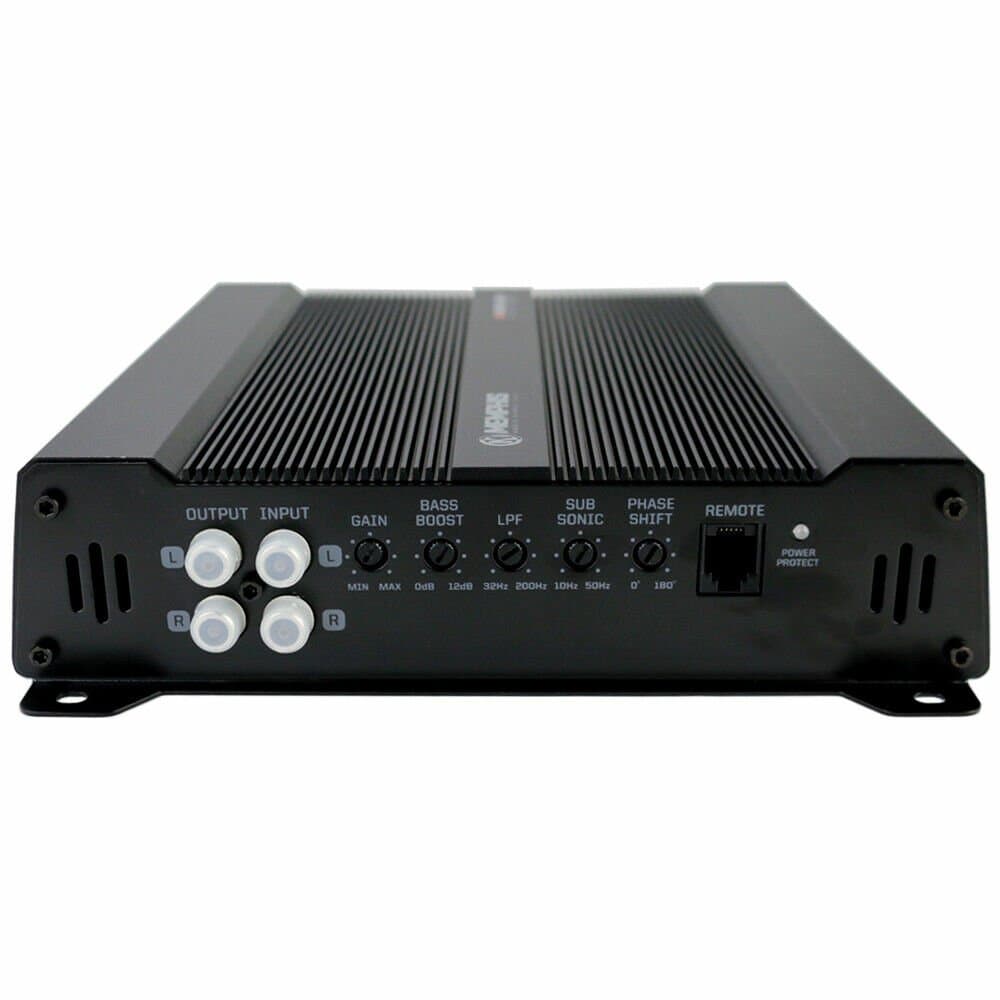

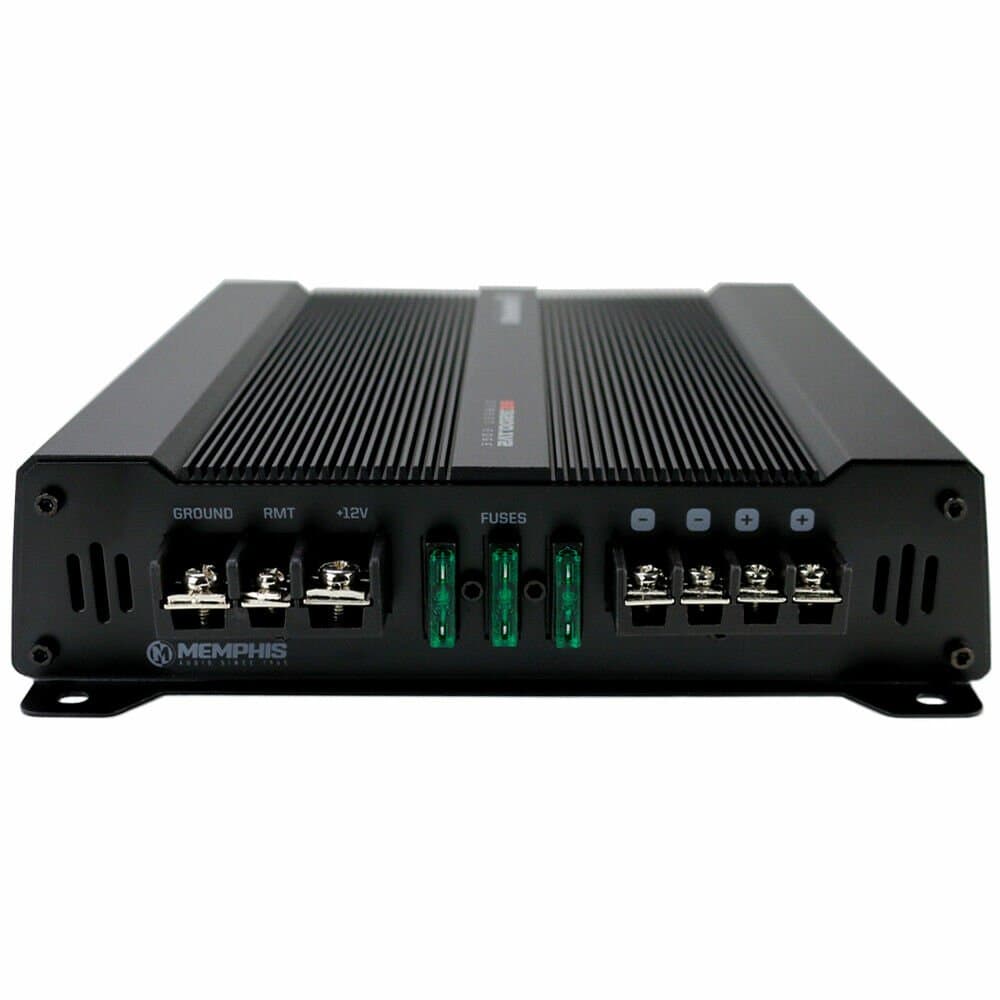

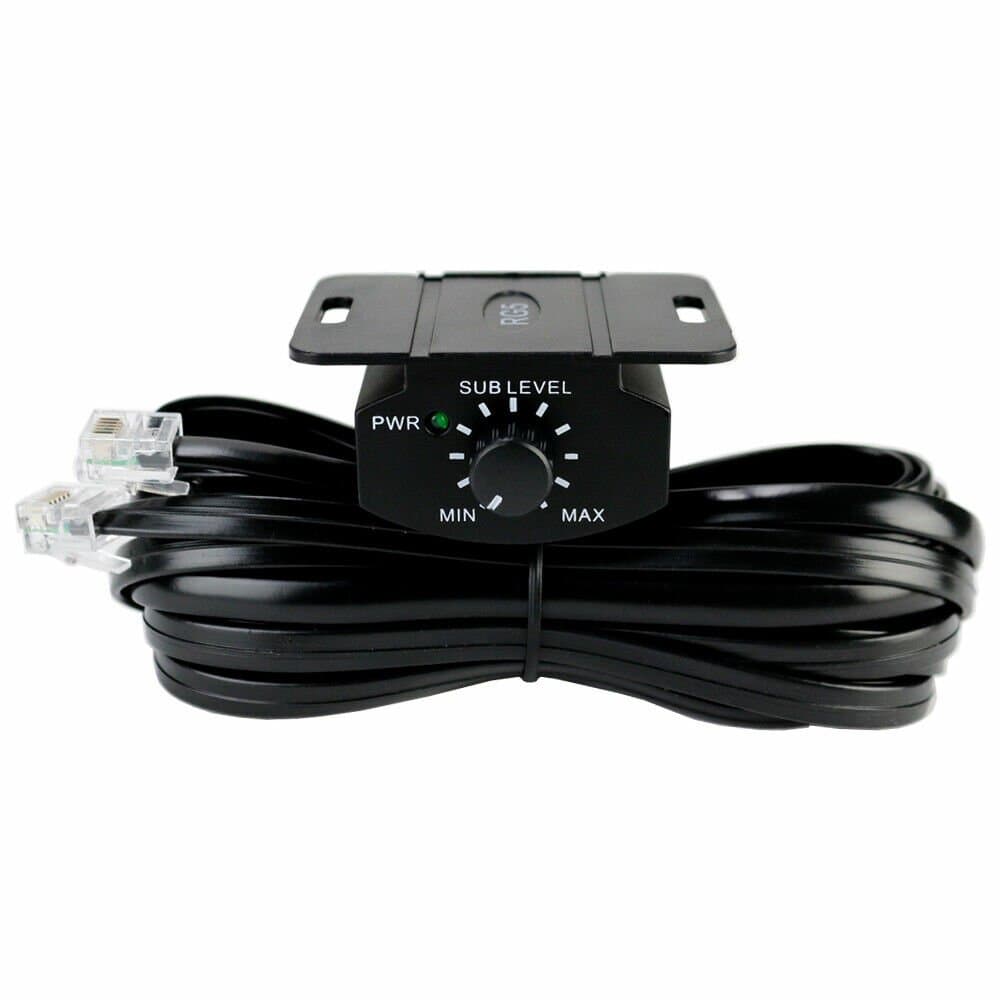

Memphis Audio SE3200.1V2 from the Street Edge Series is a Class-D monoblock subwoofer amp engineered to be 1 ohm stable for powerful low-frequency output. It delivers the following RMS power at each load: 4 ohms — 330 watts x 1 channel; 2 ohms — 550 watts x 1 channel; 1 ohm — 800 watts x 1 channel. Total RMS power output: 800 watts. Key circuit and control features include a Pulse Width Modulated MOSFET power supply, soft-start turn-on, an LED Power/Protect light, and a wired remote bass level control (included). The amplifier also incorporates 3-way protection circuitry (thermal, overload, and speaker short protection) to safeguard the unit and connected speakers. Tuning and performance specs: frequency response 10 - 200 Hz, total harmonic distortion (THD) <0.1%, variable low-pass filter 32 - 200 Hz, subsonic filter 10 - 50 Hz, and variable bass boost 0 - 12 dB. Installation and physical details: Fuse Rating: 90. Any Gauge with use of Spade Terminal. AWG gauge power and ground wiring is recommended for installation. Dimensions: 8.07" W x 7.87" L x 2" H. Sold through an Authorized Internet Dealer and backed by a 1-year Manufacturer's Warranty.
