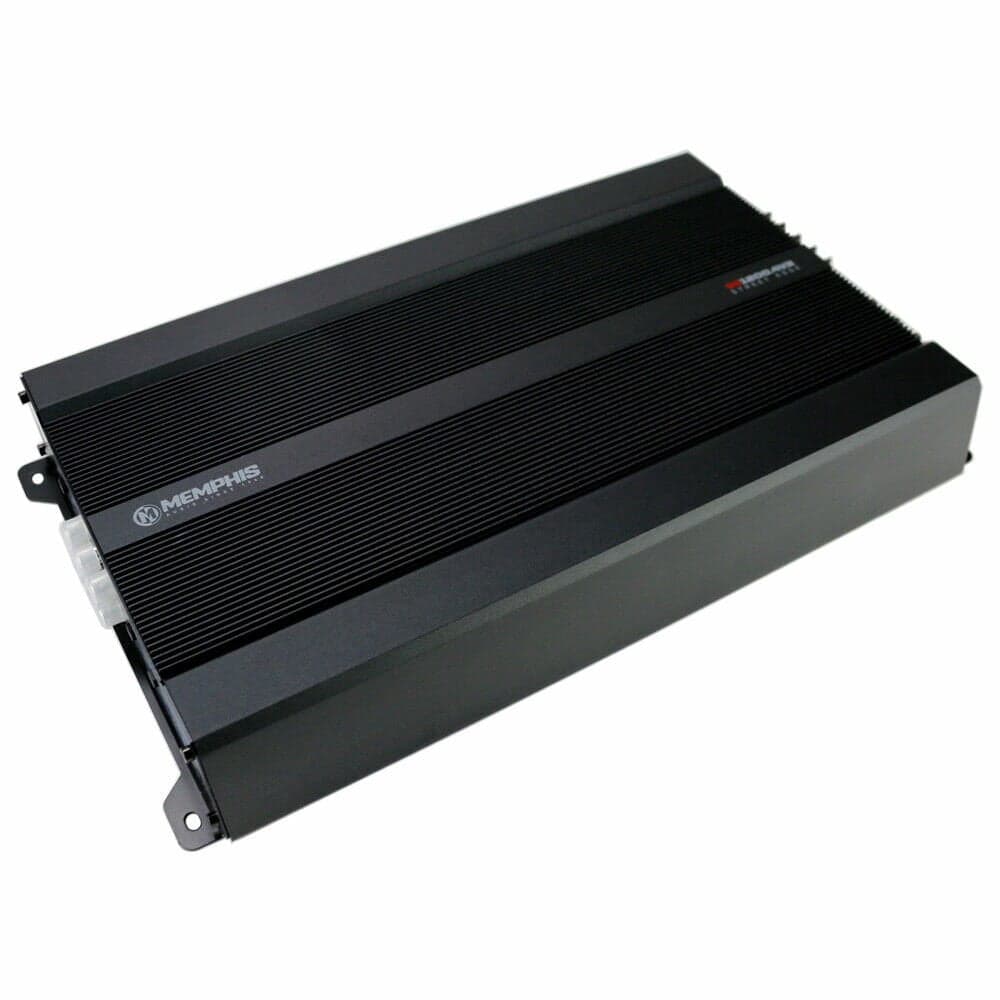

Memphis SE1200.4V2 Street Edge Series Class-D 4-Channel Car Amplifier — 1200W Peak (240W RMS)

Overview: The Memphis SE1200.4V2 is a Street Edge Series Class-D 4-channel car amplifier rated at 1200W peak and 240W total RMS output. Designed for compact installs, it delivers clean multi-channel power with a sturdy extruded aluminum heatsink and an LED Power/Protect light for status and protection feedback. Power Ratings (RMS/Bridged): - RMS POWER 4Ω: 60 x 4 - RMS POWER 2Ω: 85 x 4 (2 ohms stable) - BRIDGED/MONO POWER 4Ω: 170 x 2 @ 4 ohms - Total RMS Power Output: 240 watts Inputs, Sensitivity & Controls: - Low-Level Input Sensitivity: 0.15 - 16 volts - INPUT RANGE: 200mV -8V - Speaker Level Inputs: Yes - Maximum Input Gauge Size: 8 AWG - AMP KIT: 4GKIT (recommended 8 AWG gauge amplifier wiring kit for installation) Built-In Crossover and Tone Controls: - Built-in Crossover: Low-Pass (LP) - High-Pass (HP): Full (AP) - Variable high-pass filter: 120 - 3K Hz - Variable low-pass filter: 50 - 250 Hz - Variable Bass Boost: 0 - 12 dB Performance Specifications: - Frequency Response: 10 - 30K Hz - Total Harmonic Distortion (THD): 0.1% - THD% 4Ω: <1% - THD at Rated RMS Power: 0.1% - Signal-to-Noise Ratio: 85 dB Protection & Hardware: - LED Power/Protect Light - Extruded Aluminum Heatsink - Fuse Rating: 20A x 2 (Total Fuse Rating: 40) - Fuse Rating: 40A - Minimum Impedance Unbridged: 2 ohms - Minimum Impedance Bridged: 4 ohms Additional Info & Packaging: - Series: Street Edge Series - Amplifier Class: D - Number of Channels: 4-Channel - Sonic Certified Amplifier: Not Tested - Authorized Internet Dealer — 1-year Manufacturer's Warranty - UPC: 702588006039 - Dimensions L x W x H: 12.6" x 8.07" x 2" - Weight: 6
