Mastervolt 44321105 Boating Other sku-450160507 Plus

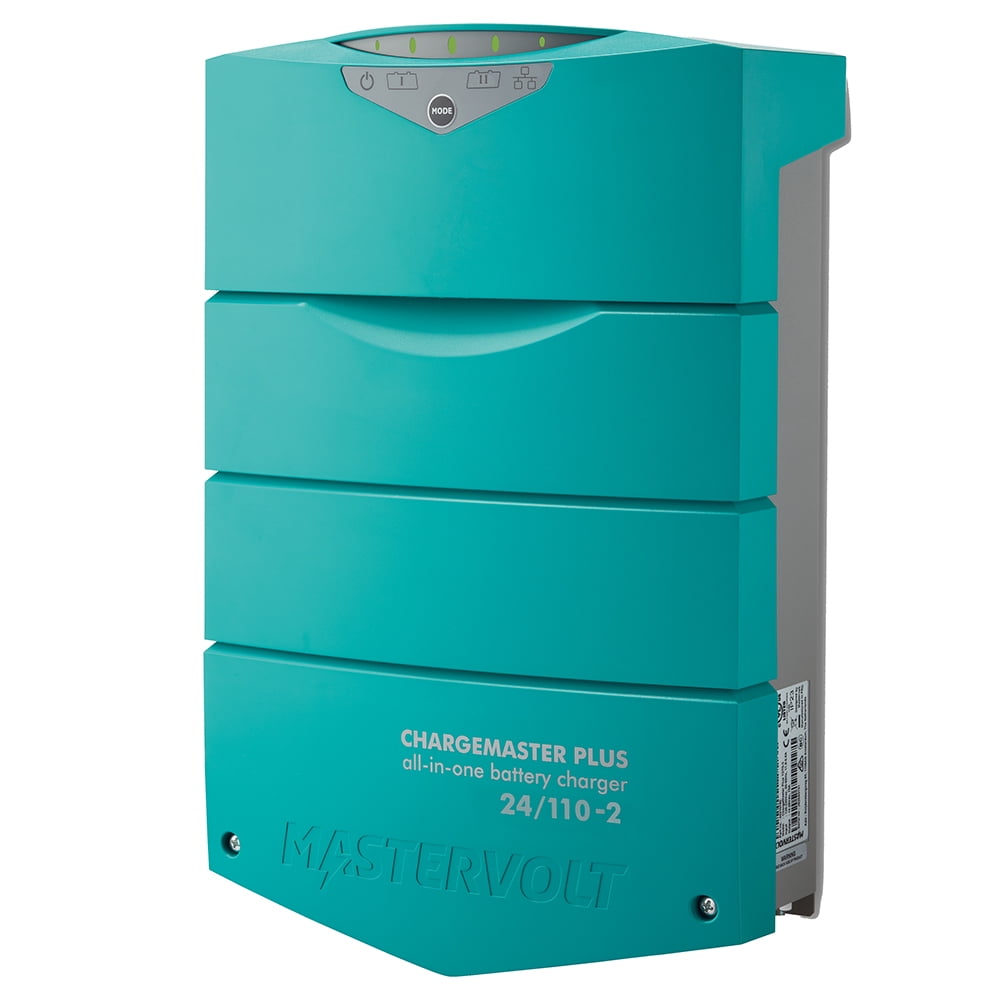

Mastervolt ChargeMaster Plus model 44321105 is a 24V, 110 Amp, 2 Bank battery charger listed under Boating in color Other. SKU: sku-450160507. UPC: 816882022432. The unit combines a two-output charger, DC-DC converter, current limiter and voltage-sensitive relay, replacing separate auxiliary chargers, battery isolators and VSR equipment.

It can charge combinations of battery chemistries, sizes and voltages, including Lithium Ion, Gel and AGM banks, using a 3-step+ charge method. Revival mode is designed for fully depleted batteries. Multi-voltage operation allows a 12 V starter battery to charge in a 24 V system without additional components. Priority Charge directs available power to the lowest battery.

The listing states 20 % more output at 14.4 V and 80 % charging power at 60 °C. It specifies an 80-275 V AC operating range at 35-70 Hz and also lists charger input voltage as 120/240v. Listed output is 110a at 12/24v across 2 banks. The charge phase is displayed for each output, and the connections are designed for installation.

MasterBus communication uses CAN and can connect to displays, shunts and power systems. CZone®, NMEA 2000 and CANopen are supported through additional interfaces; models with CZone can support CZone and NMEA 2000 without those interfaces and can accept a CZone configuration file. Modbus, CANopen and LinBus are available through additional interfaces.

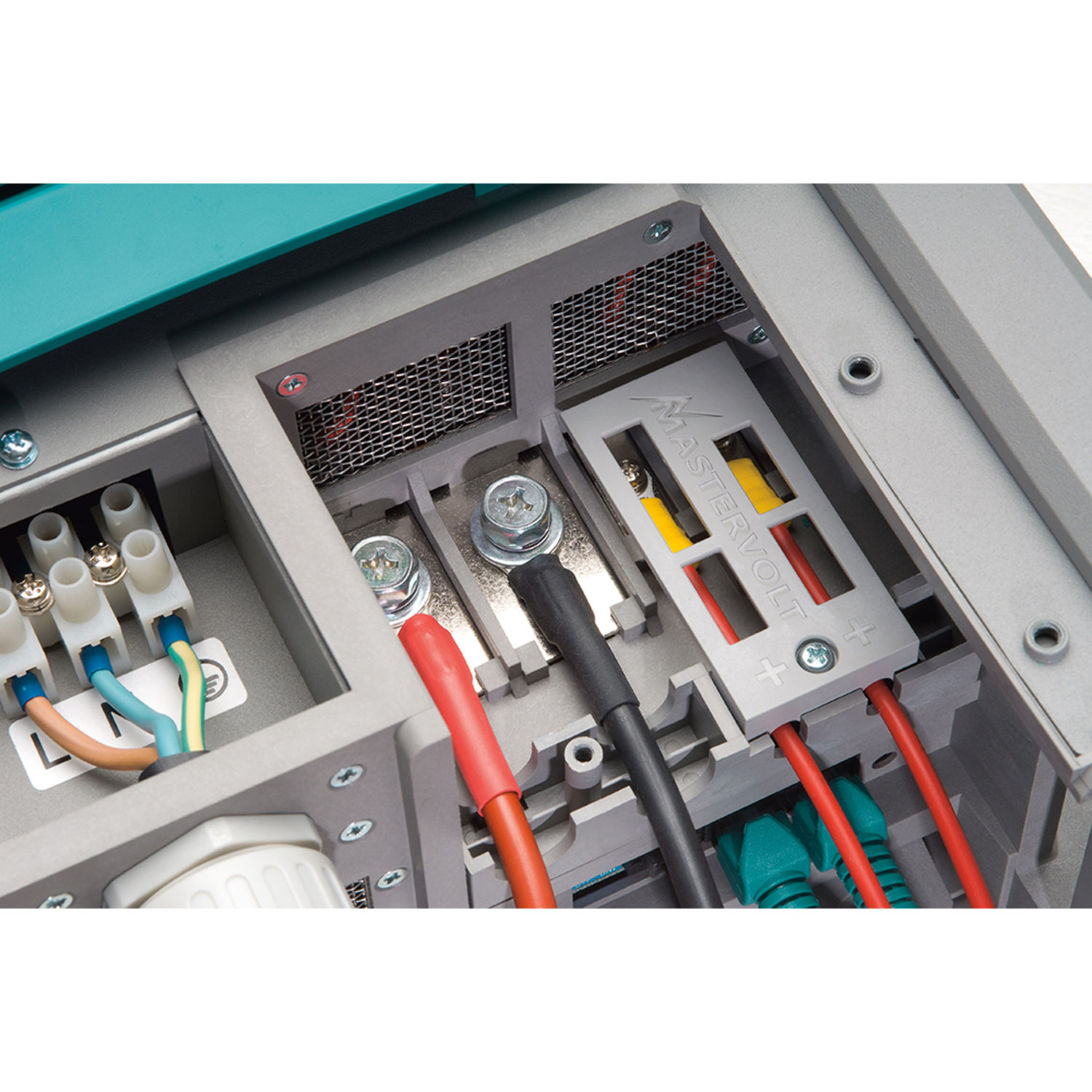

The charger can also operate as a power supply for communication equipment or during boat construction. The listing states compliance with CE, ABYC, UL, SAE, CEC/DOE and RCM/C-Tick. Box dimensions are 7"H x 13"W x 18"L; weight is 12.25 lbs. An owner's manual is listed as a PDF.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp), which is known to the State of California to cause cancer, birth defects or other reproductive harm. More information: P65Warnings.ca.gov.
