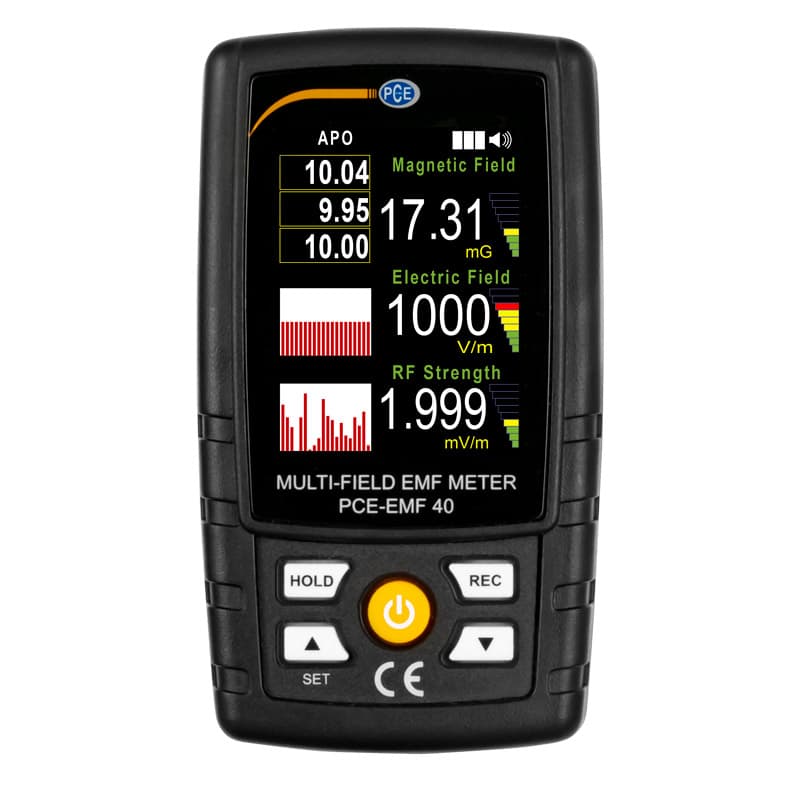

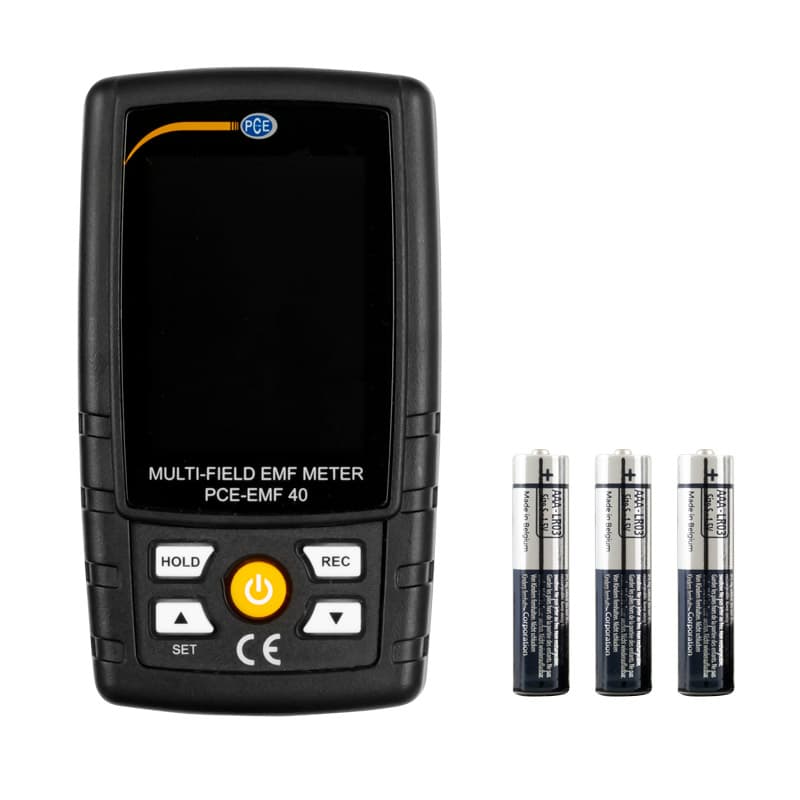

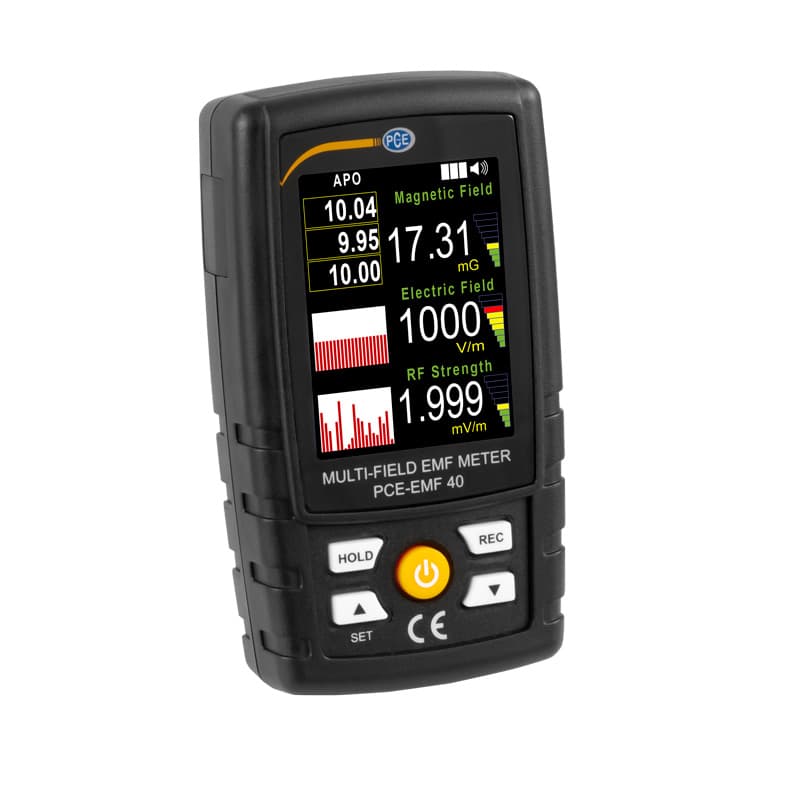

Magnetometer PCE-EMF 40

- Low frequency magnetic field Unit µT Measuring range: 20.00 ... 200.0 µT Resolution: 0.01 µT, 0.1 µT Accuracy: ± 12% + 5 digits at 50/60 Hz Unit mG Measuring range: 200.0 ... 2000 mG Resolution: 0.1 mG, 1 mG Accuracy: ± 12% + 5 digits at 50/60 Hz - Low frequency electromagnetic field Unit V / m Measuring range: 50V / m ...

2000V / m Resolution: 1V / m Accuracy: ± 7% + 20 digits at 50/60 Hz - High frequency electromagnetic field Unit mV / m, V / m Measuring range: 30.0 mV / m ... 11.00V / m, 0.01V / m Resolution: 0.01, 0.1 mV / m Accuracy: 1.0 dB at 1V / m and 900 MHz, > 1V / m are only used for reference Unit µW / cm² Measuring range: 0.02 ...

32.0 µW / cm² Resolution: 0.1, 1 µW / m², 0.1 mW / m² Unit µW / m², mW / m² Measuring range: 2.3 µW / m² ... 320.9 µW / m² Resolution: 0.1, 1 µW / m², 0.1 mW / m² Unit mA / m Measuring range: 0.07 ... 29.1-mA / m Resolution: 0.01, 0.1-mA / m - Three different measuring functions - Many different units can be set - Alarm when limit value is exceeded - Automatic shutdown - With three-axis measurement - For low frequencies and high frequencies
