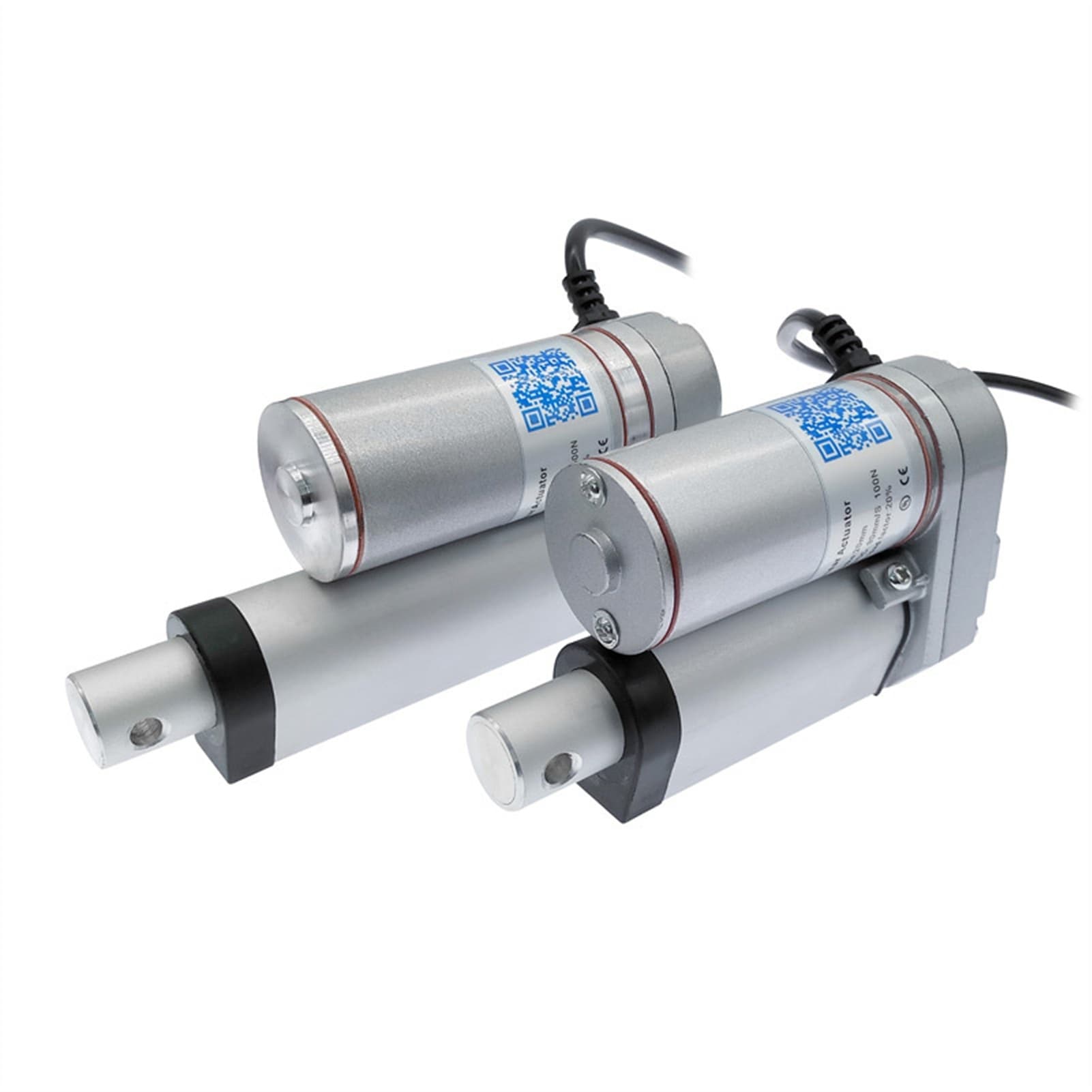

Laiye Stroke 20mm Electric Motors Other Linear Actuator

The Laiye Stroke 20mm linear actuator is listed under Electric Motors, with color Other and material designation Stroke 20mm. The title lists 12V and 24V options; 50mm, 30mm and 20mm strokes; and force ratings of 100N, 200N, 300N, 500N, 750N, 800N, 900N, 1100N, 1300N and 1500N. 1. The push rod has a 10%-20% operating frequency and is not intended to run continuously for long periods.

During short-term continuous use, it must not extend and retract more than 200 times in a day. 2. A built-in limit switch stops travel at either end; cutting power also stops the rod mid-travel. Reversing the two wire connections changes direction, so swap them if the rod does not respond. 3.

Stroke length is factory-set and cannot be adjusted without opening the rod and re-welding the limit switch, which is not recommended. 4. Once a speed is selected, lowering the voltage lowers the speed.
