Lepower YY03A-BL Black LED Floodlight sku-330380047

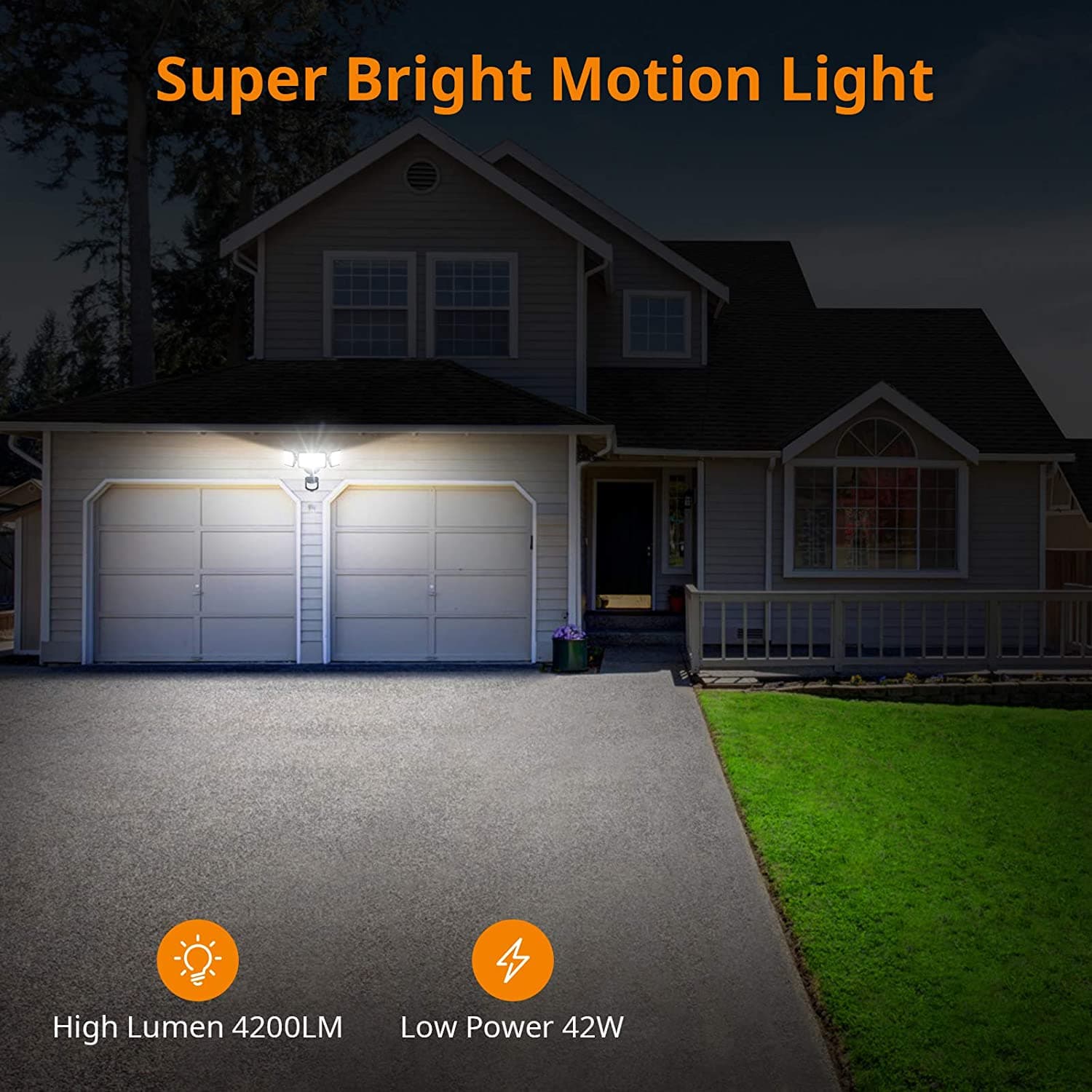

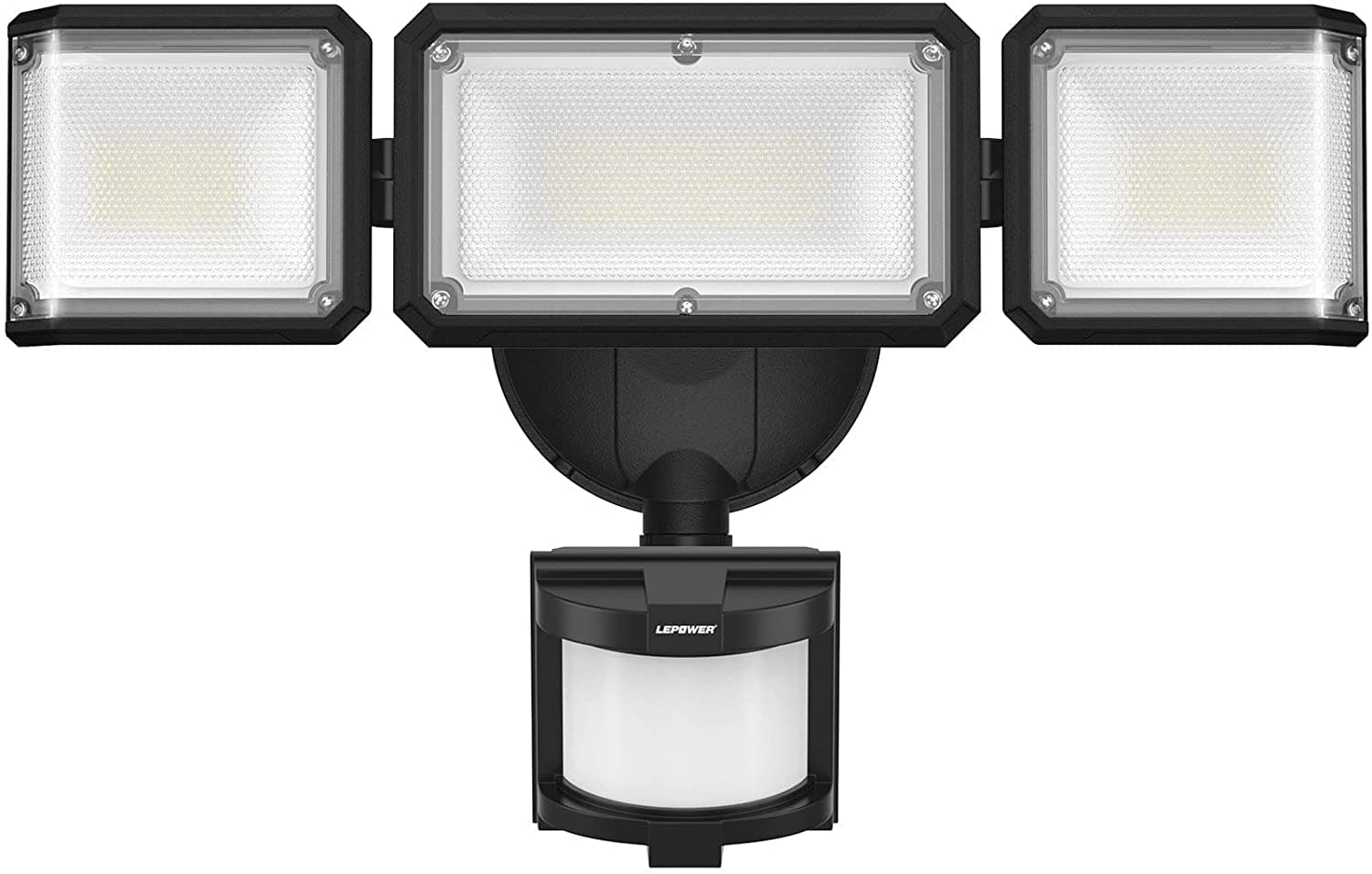

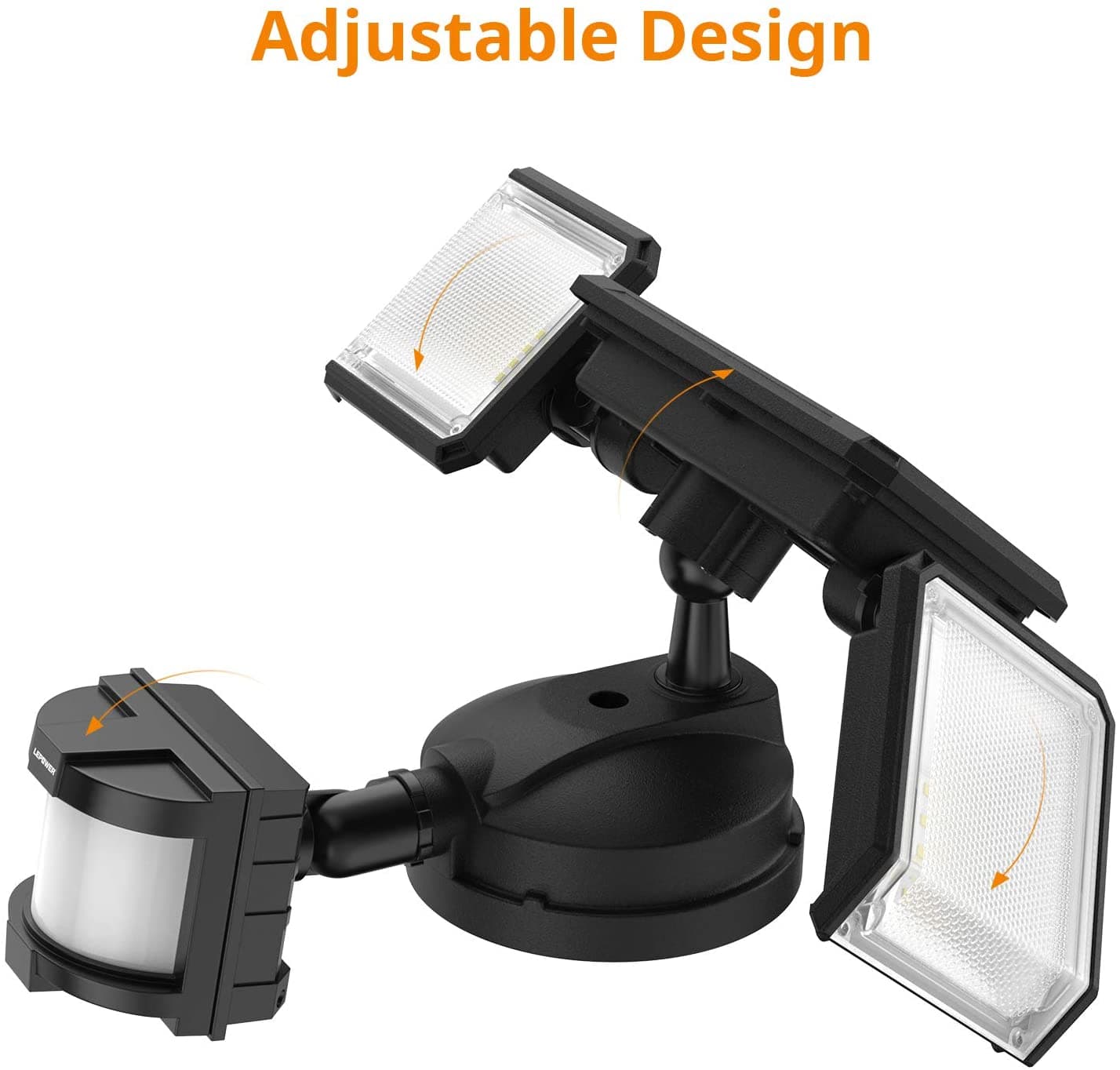

The Black Lepower YY03A-BL LED motion floodlight, SKU sku-330380047 and UPC 797648694431, is listed under Outdoor Security Lights. Its 42W LED fixture produces 4200 lumens; the stated electricity savings are more than 80% compared with a 210W halogen bulb. The two side lights use a folded-surface design that increases the beam angle from 180° to 220°.

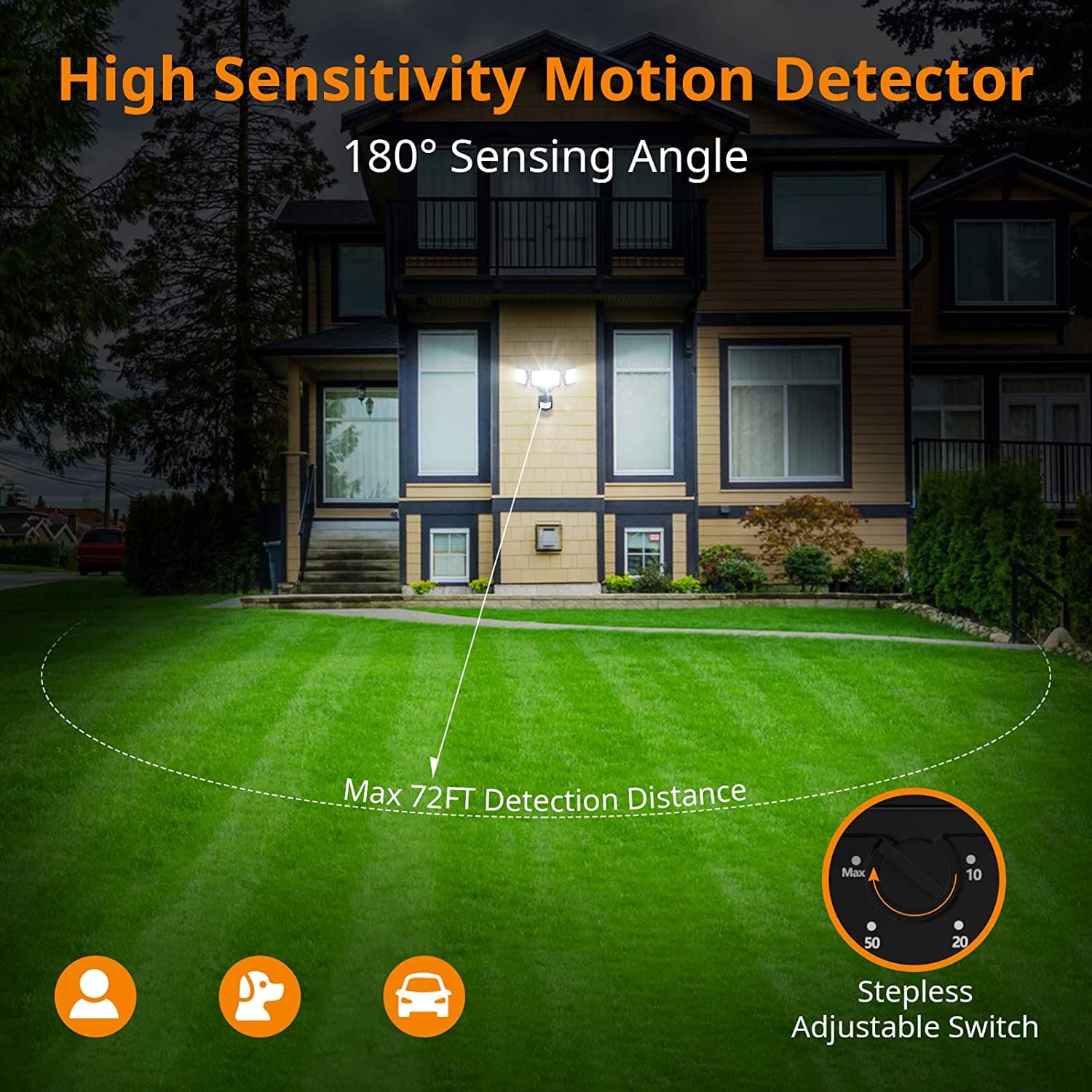

Motion detection reaches 72 feet, with an adjustable range of 0 to 72 feet and a lighting duration of 0 to 10 minutes. Its 3 modes are auto, dim light and dusk to dawn. Auto turns the light on when it detects people, animals or cars and off when motion stops. Dim light provides 700 lumens without motion and 4200 lumens when motion is detected.

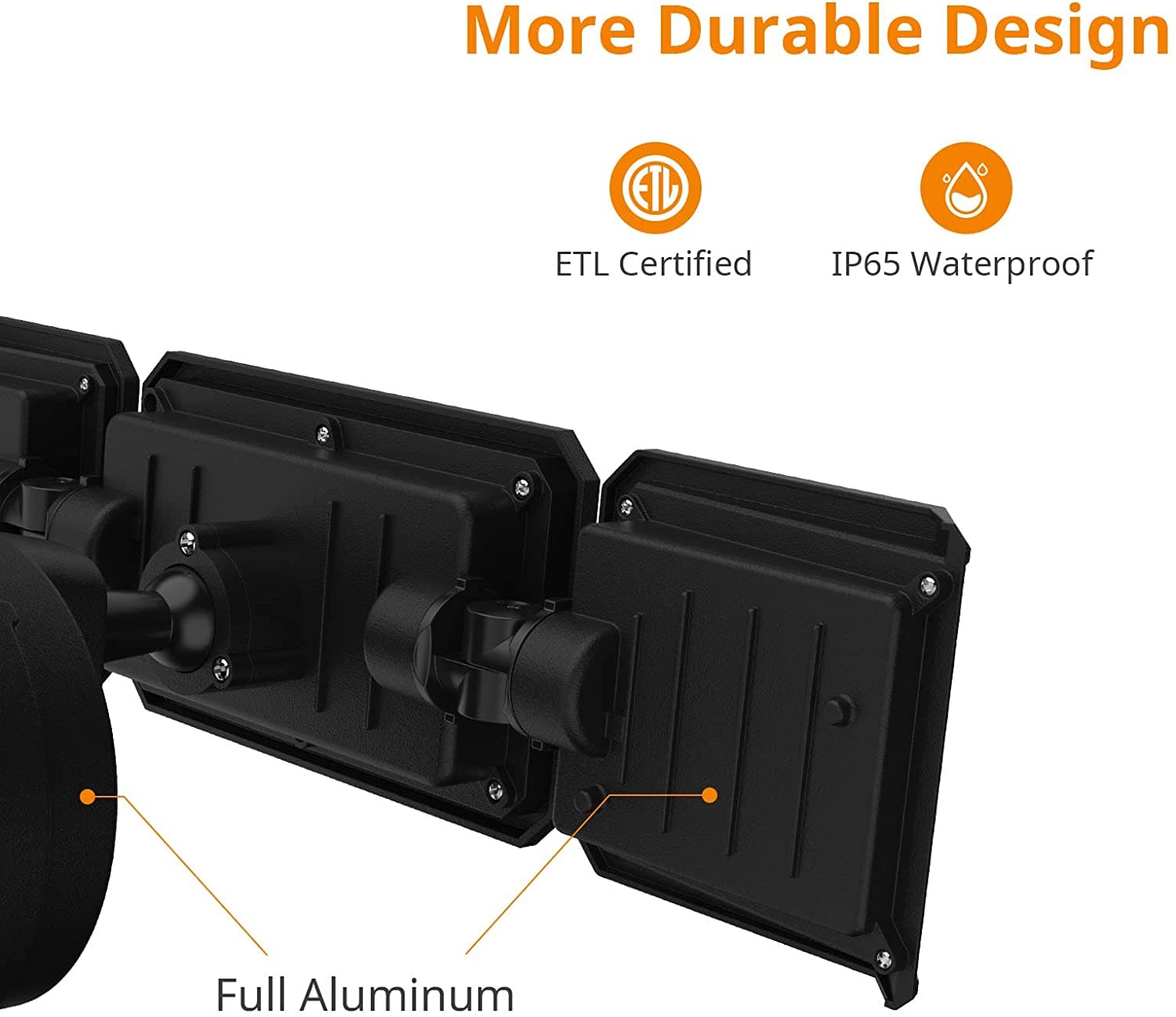

Dusk-to-dawn mode turns the light on at dusk and off at dawn. The aluminum housing dissipates heat, has an IP65 water-resistance rating and a stated life of up to 50,000 hours. Specifications: 42 W, 120 V, 4200 lumens, 5000 K color temperature, 180° sensing angle and 220° beam angle. The package contains 1 light, 1 bag of accessories and 1 user manual.

Installation tips 1 and 2 cover wiring and mounting height: Black is live, White is neutral, and Yellow and Green are ground. Recommended installation height is 7.2 to 14.8 feet; keep the lamp head parallel to the wall and angle the sensor downward more than 60°. The operating voltage is 120V (110V-130V); incorrect voltage may damage internal parts and create a safety risk.

To check operation before installation, turn the timer knob counterclockwise to the test area and confirm that motion activates the light by day or night. Keep the lamp head away from the sensor to prevent light from causing flicker.
