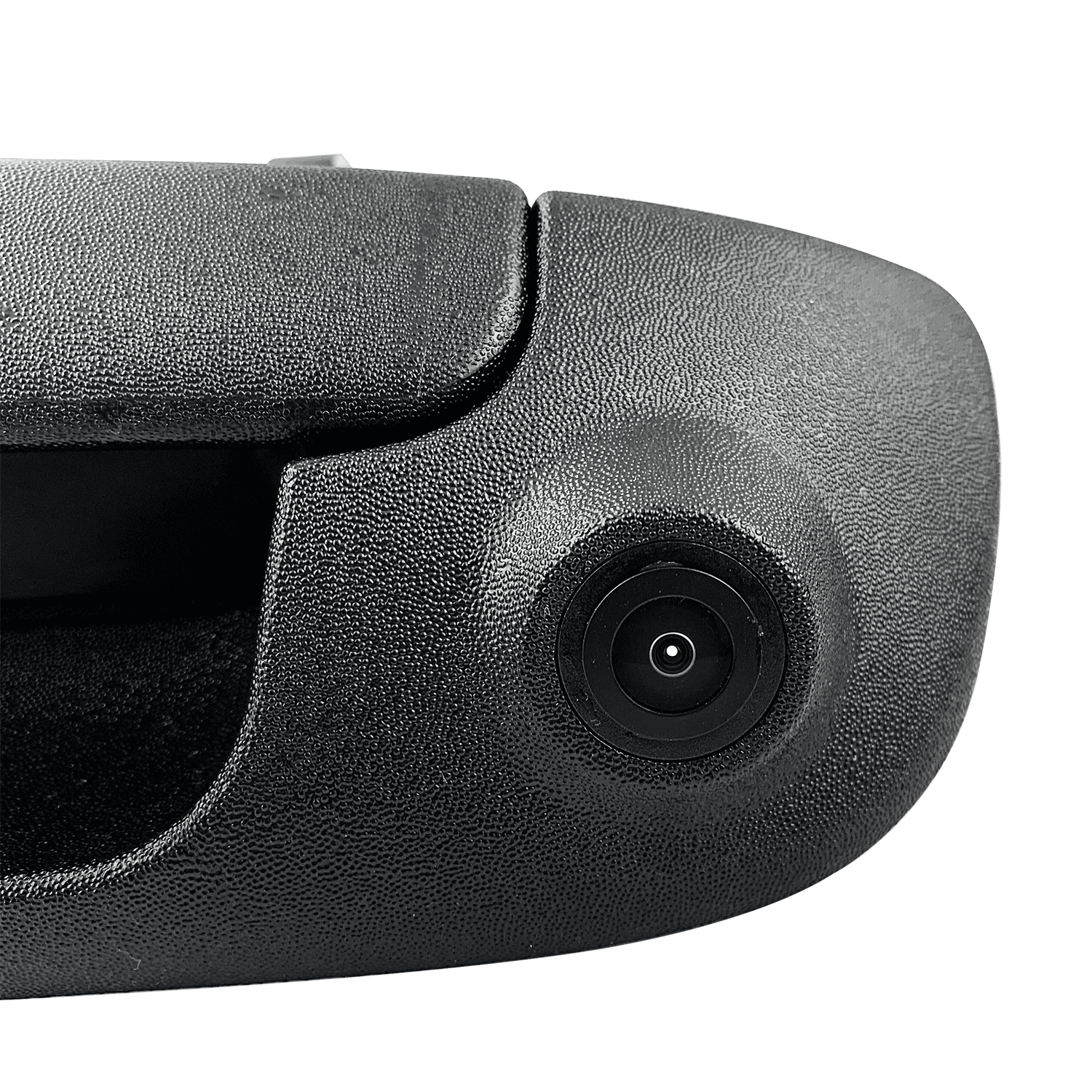

LEADSIGN Replacement Tailgate Handle with Rearview Backup Camera for Dodge Ram 1500 (2002-2008), 2500/3500 (2003-2009)

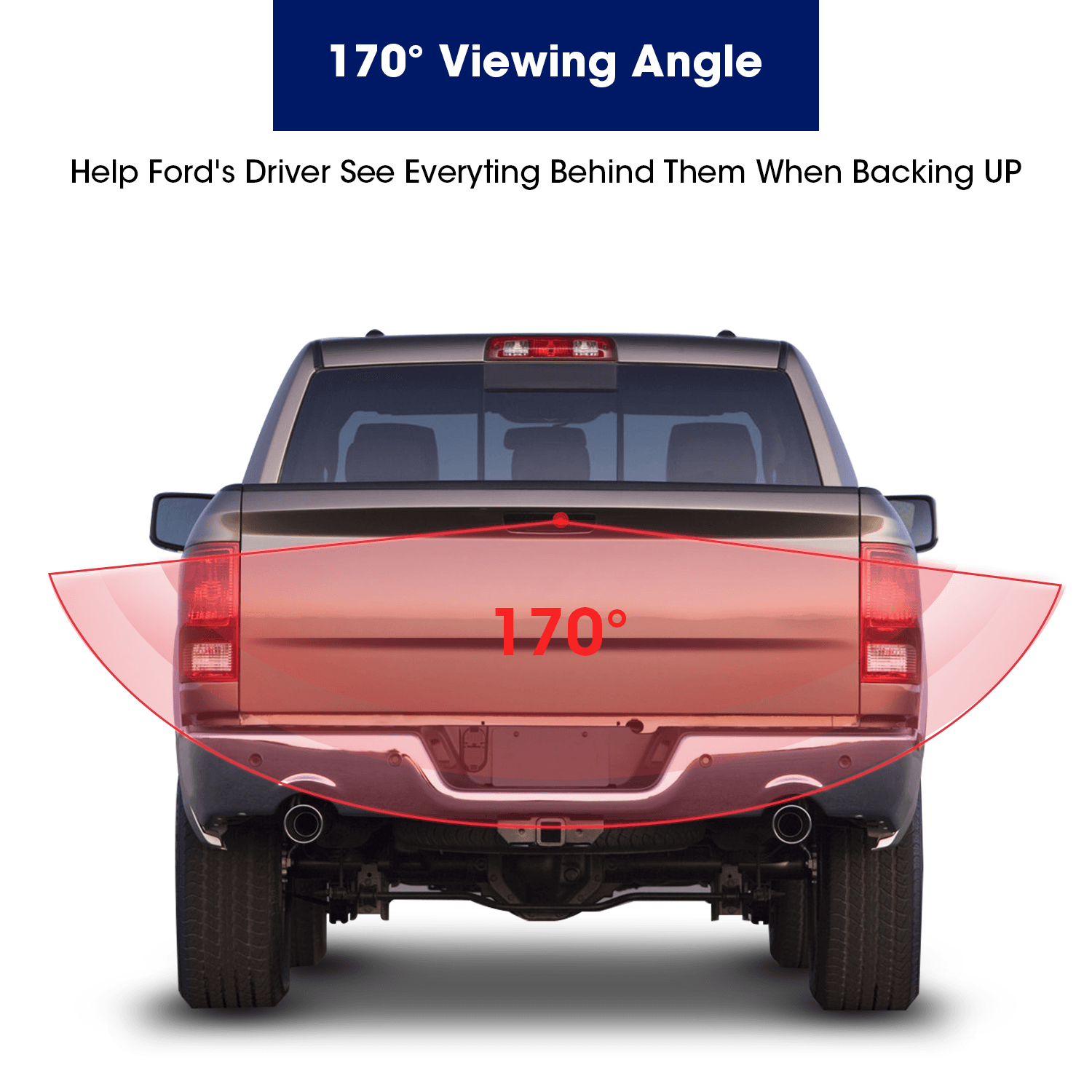

Overview: Aftermarket LEADSIGN tailgate handle assembly with integrated full-color reverse camera, color: Black. Designed to replace the factory handle and provide a wide-angle backup view. This unit is not OEM and requires a 12V power source for operation. Vehicle Fitment: Compatible with Dodge Ram 1500 (Years 2002–2008). Compatible with Dodge Ram 2500/3500 (Years 2002–2009). (Also listed for Dodge Ram 2500/3500 Years 2003–2009 in some specifications.) NOTE: Not compatible with the original factory monitor. Before ordering, verify your monitor/screen has a Yellow RCA input. Installation & Power: Supplied with a universal RCA video connector for straightforward hookup. Includes video and power extension cable, length 8 Meters (26.2 feet) to reach across the vehicle. The camera can be wired to any DC 12V source — connect to a constant 12V feed for continuous power or to the reverse taillight circuit so it activates only when backing up. Camera Positioning: The camera is angled slightly downward to give a clear view of the trailer ball hitch and rear area for safer coupling and reversing. Imaging & Optics: High-resolution output at 960(H) x 576(V) with 700 TV lines for detailed picture clarity. Wide 170° viewing angle (130° horizontal x 95° vertical x 170° diagonal) eliminates blind spots for a full rear view. Low-Light & Durability: Sensitive down to 0.05 Lux for improved performance in dim conditions. Housed in an IP69K waterproof enclosure to withstand harsh outdoor weather. Technical Specifications: - Image sensor: 1/3" PC1058 CMOS Chip - Signal system: NTSC/PAL - 960 x 576 resolution - Minimum illumination: 0.05 Lux - Electronic shutter: 1/50 to 1/100,000 s - Resolution: 700 TV line - Waterproof rating: IP69K - Viewing angle: 170 Degree [130(H) x 95(V) x 170(D)] - Current consumption: 70mA Max - Power: DC 12V Package Includes: Tailgate handle with integrated backup camera and 8 Meters (26.2 feet) video/power extension cable for installation.
