LASE PA Speakers Amplifier 810175750057 sku-11833967537

The LASE amplifier, sku-11833967537, is listed under PA Speakers and is intended for QSC KW181, KLA181 and K-Sub powered speakers. UPC: 810175750057. It has power, gain, reverse/normal polarity and normal/boost mode controls; front LEDs can be switched on or off and indicate limits. Other indicators show power, standby and limit status. Cooling uses an on-demand 50mm variable-speed fan.

Amplifier protection includes thermal limiting, output overcurrent protection and over-temperature muting; transducer protection includes thermal and excursion limiting. Nominal output is 1000 watts RMS. The listed frequency response is +0/-0.3 dB at 1W/8Ω, from 34 Hz to 143Hz. Output level is 135 dB, signal-to-noise ratio exceeds 112 dBA, and channel separation at 1 kHz exceeds 70 dB.

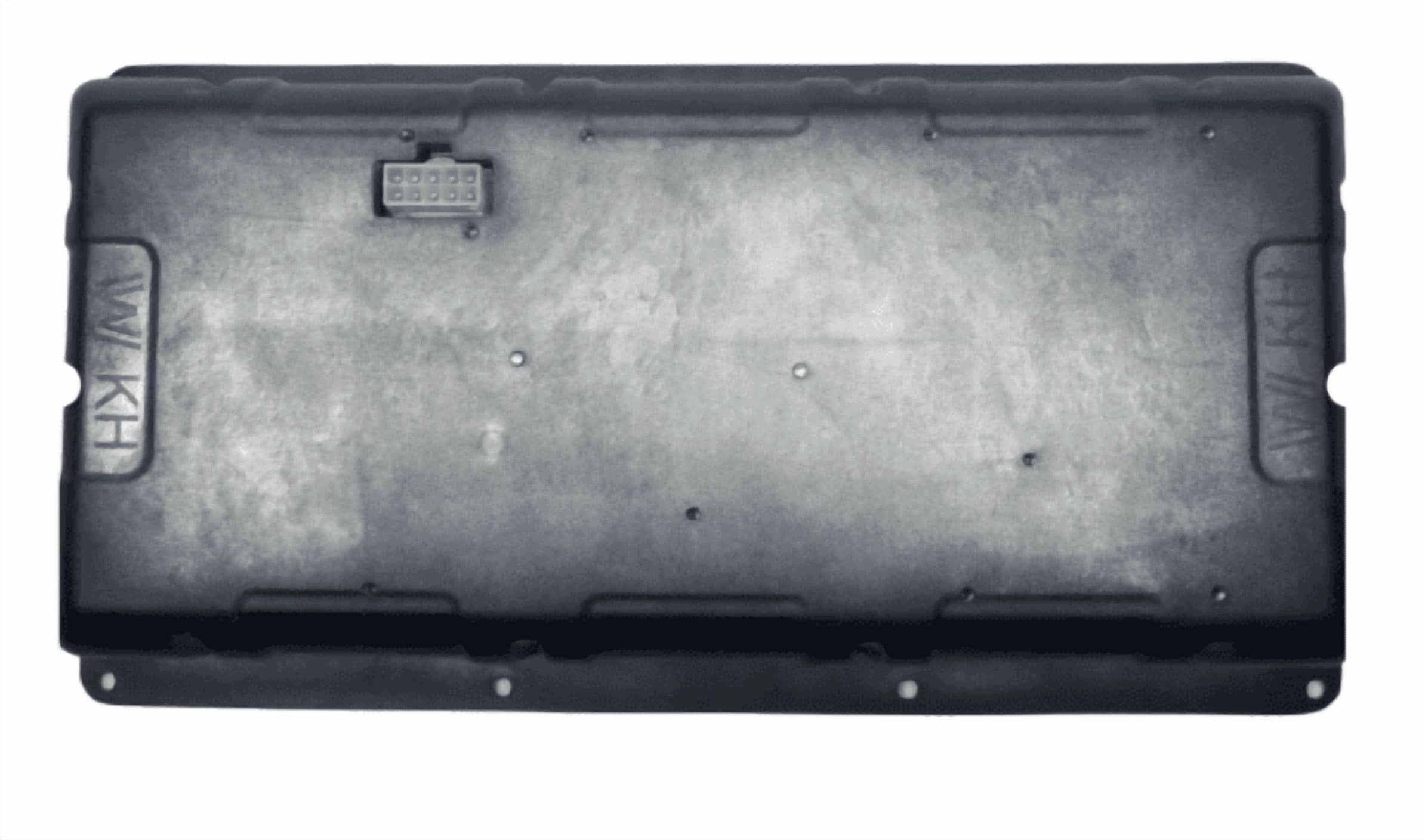

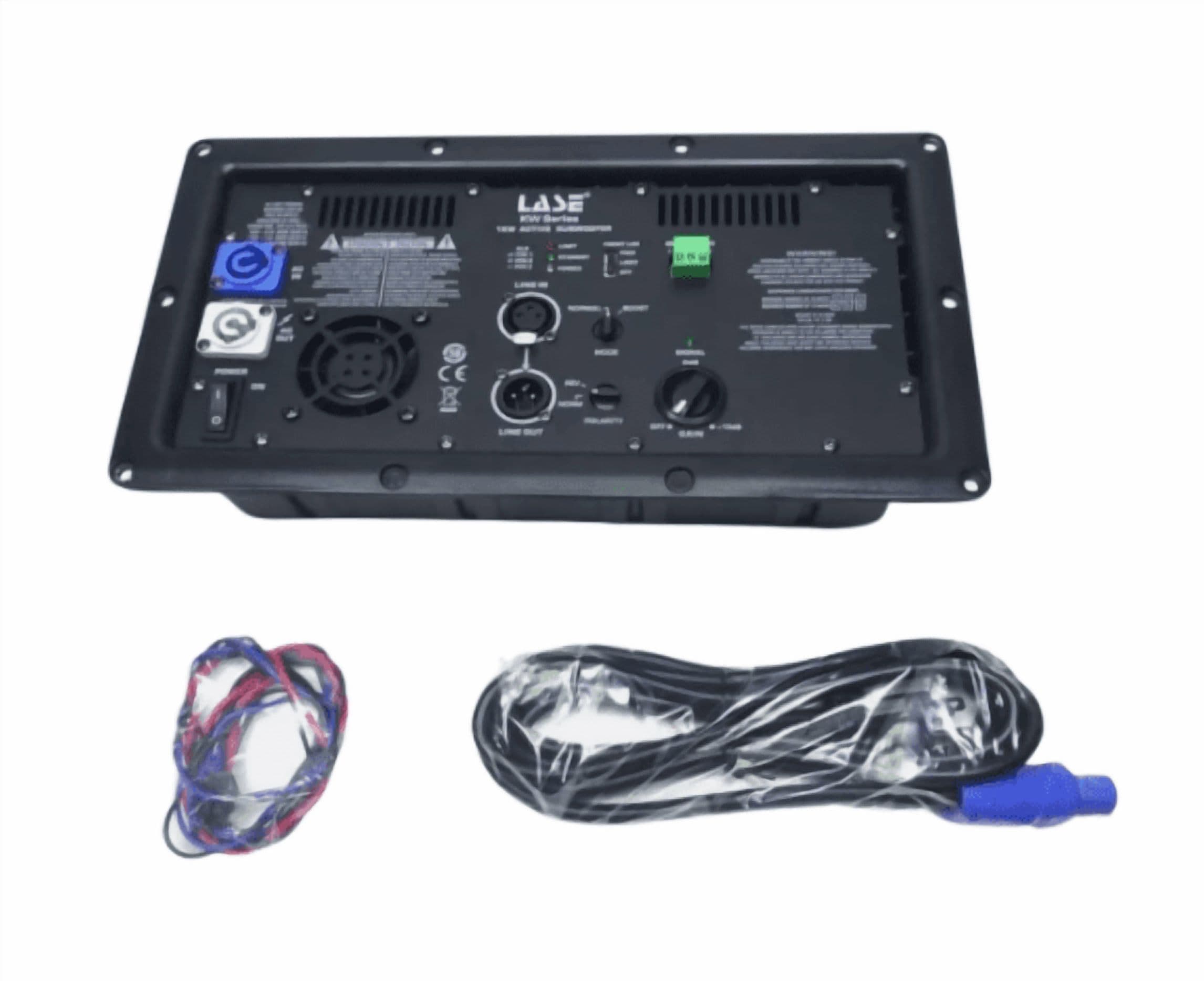

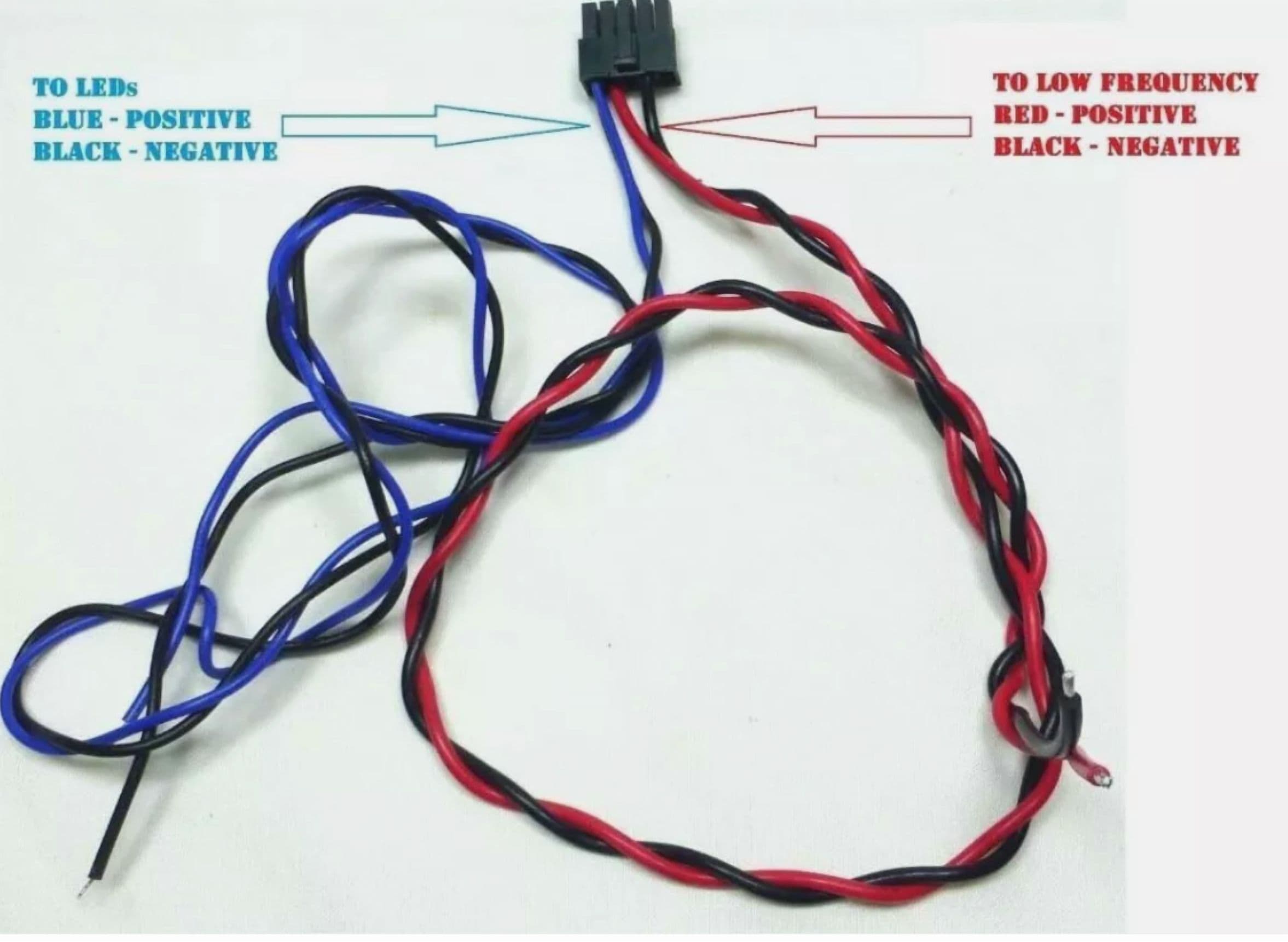

Connections include a balanced female XLR input, balanced male XLR line output, remote gain control and a locking IEC power connector. The specifications list Class D wiring and Class TD. Operating voltage is selectable between nominal 220 V and 110 V, with ranges of 190-240 V and 90-130 V. See the product images for module connection details.
