Kunray KR5V-6IN1 72V Brushless Motor Other sku-16577716642

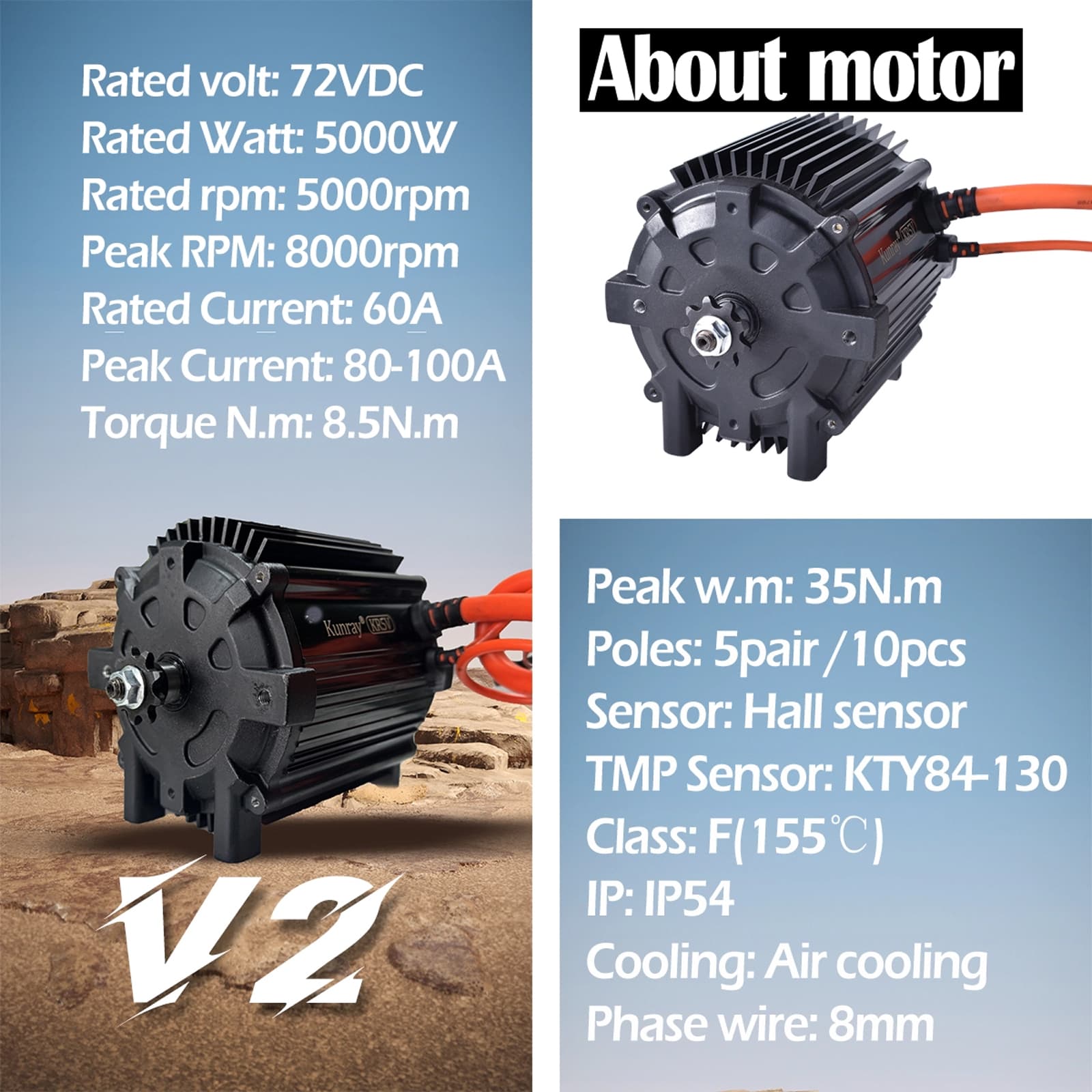

The Kunray KR5V-6IN1 motor kit is listed as color Other under Dirt Bike Parts & Accessories. SKU: sku-16577716642; UPC: 640486172718. Its 72V brushless DC motor is rated at 5000W, 6900rpm, 8.5N.m and 60A, with listed peaks of 10KW, 8000rpm, 35N.m and 80-100A. The copper-core motor has a stated maximum efficiency of 90%, high-temperature resistance and a T8F/25H sprocket fit.

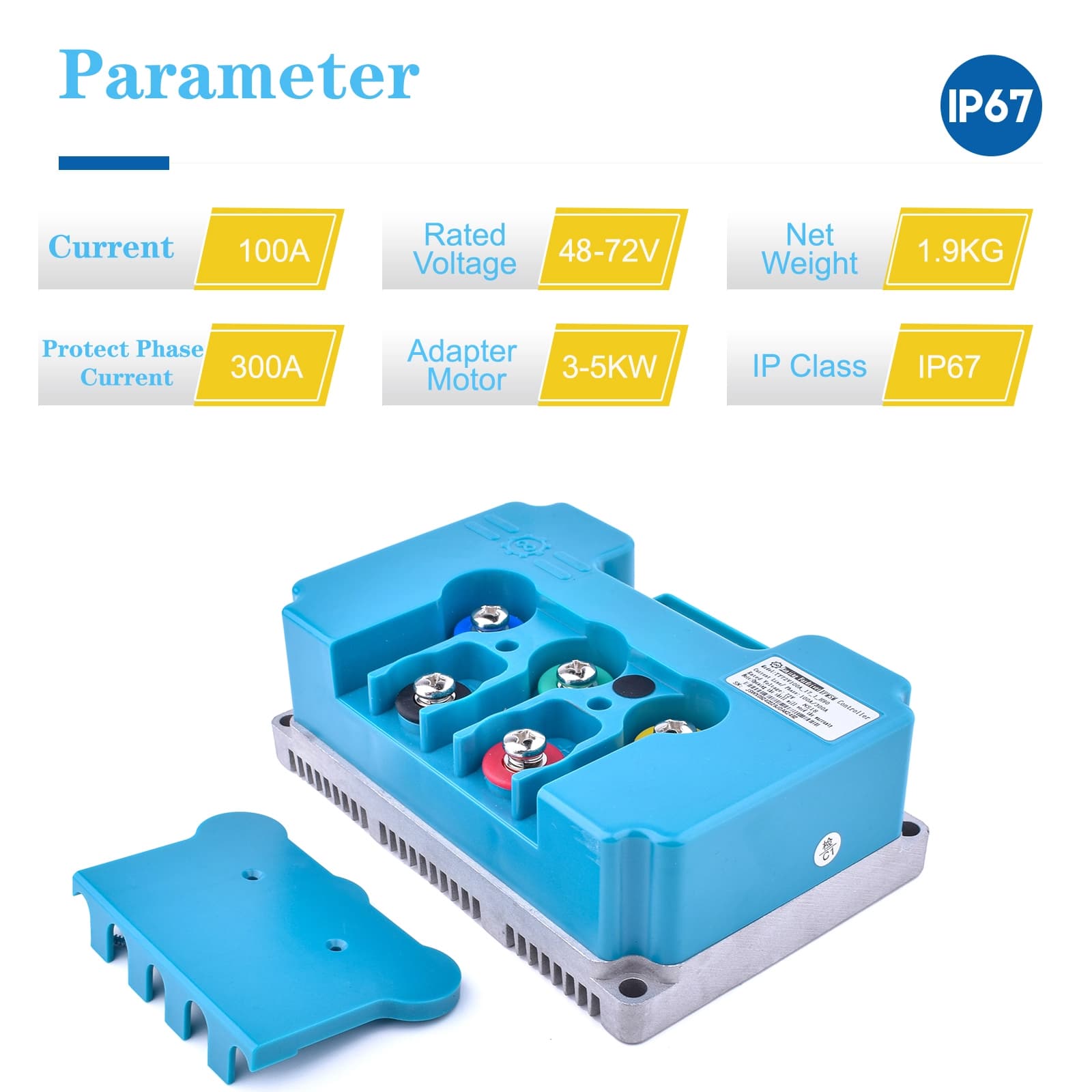

The upgraded V-magnet rotor has 5 pairs of magnet poles and a KTY84-130 temperature sensor for use with a programmable controller. The included Fardriver controller is rated at 100A current and 300A phase current; it has 18 MOSFETs and built-in Bluetooth. The listing recommends a motor maximum of 80-100A.

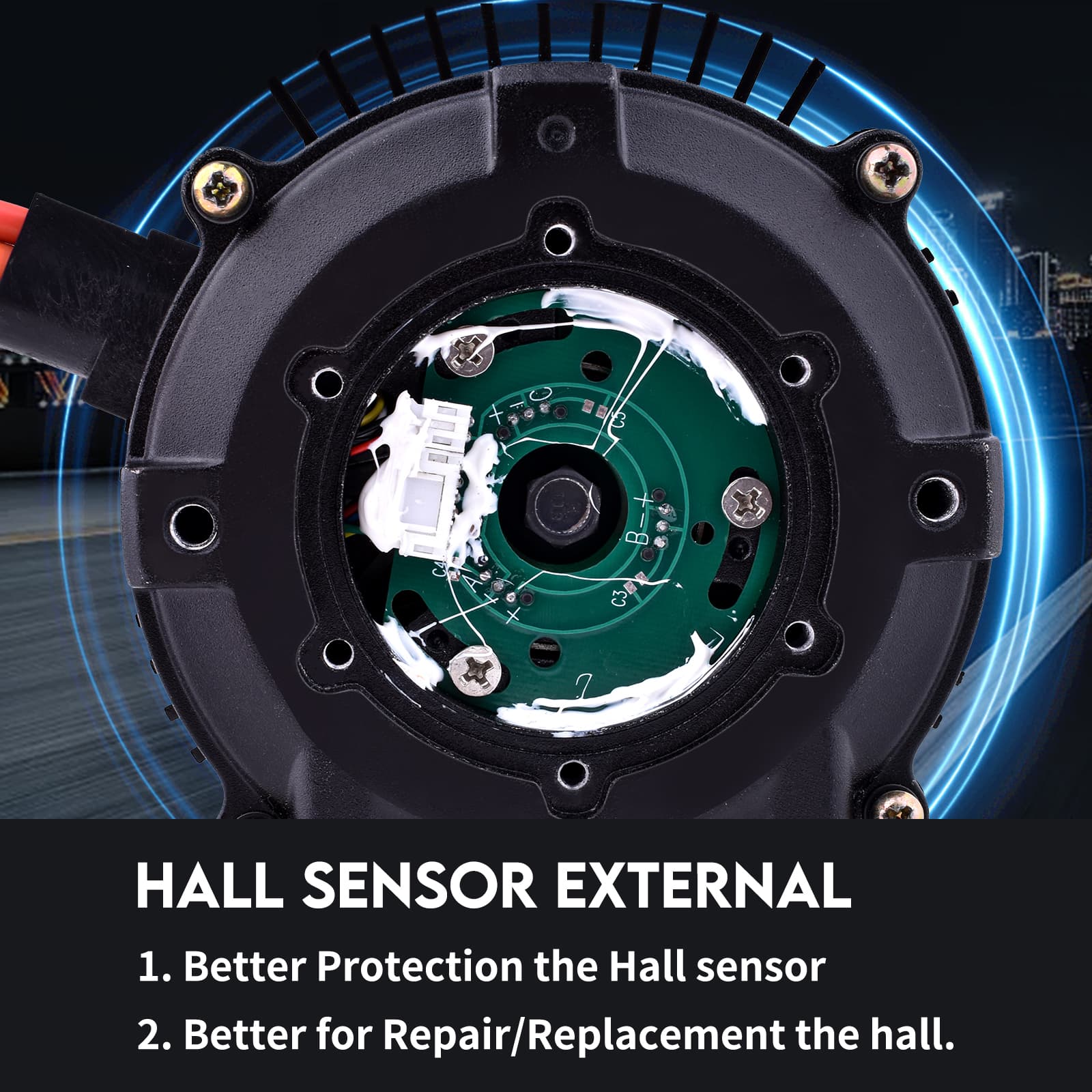

The external Hall sensor is fitted to the back cover; the listing warns against removing its screw or touching the motor when hot. Applications listed include go-karts, dirt bikes, electric motorcycles, scooters, ATVs and Razor MX500, MX650, SX500 and RSF650 upgrades. The half-twist throttle has a 12-96V LED battery display.

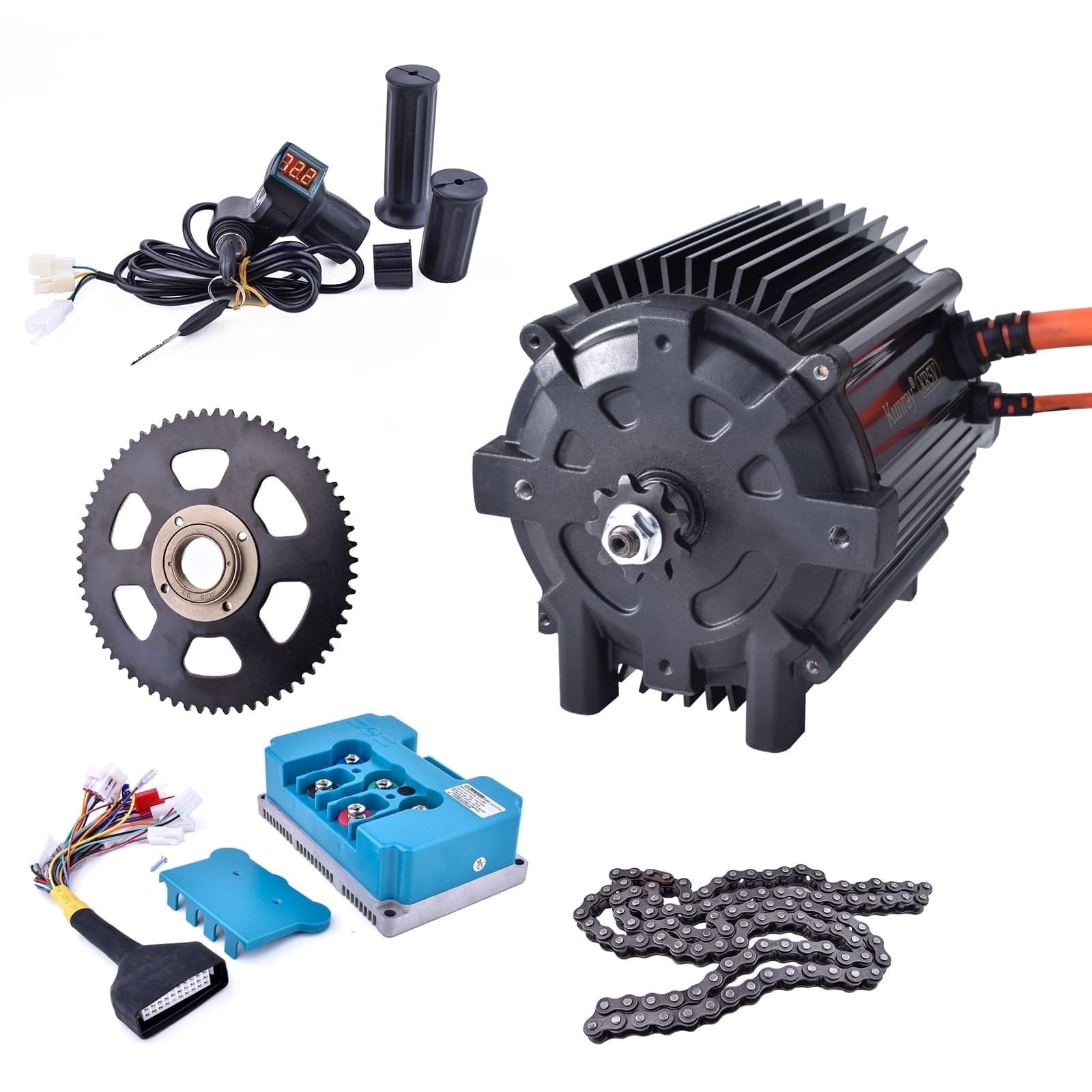

The kit also includes a #35 65-tooth rear sprocket, a #35 116-link chain and a non-gear freewheel.
