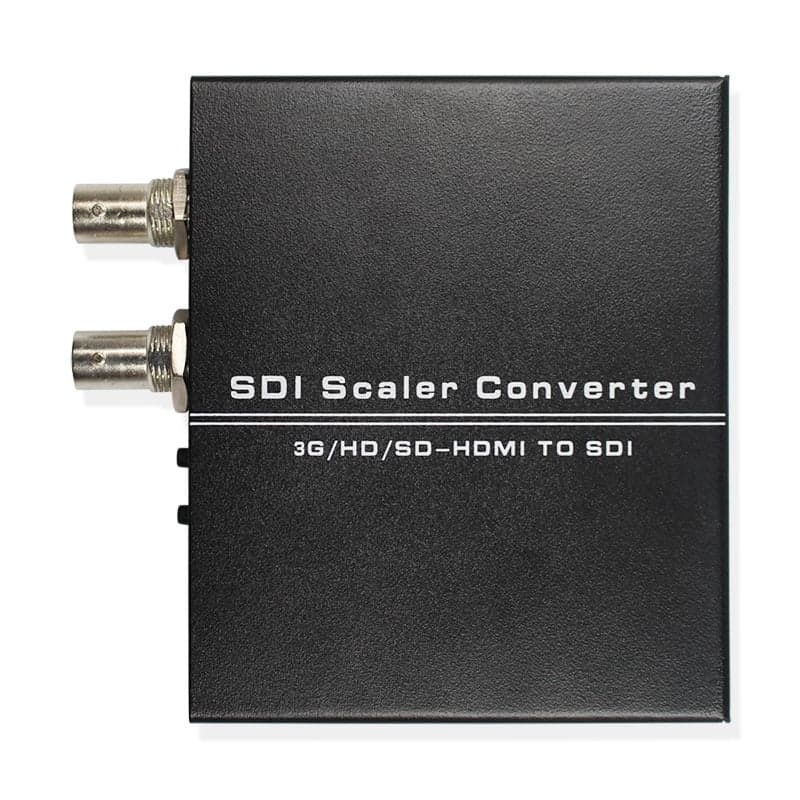

KIPLINK HDMI to Dual SDI Converter with Built-in Scaler — SD/HD/3G-SDI Outputs

Overview: Convert a single HDMI feed into two simultaneous SDI outputs for professional video applications. This compact KIPLINK converter includes a hardware scaler for up/down resolution conversion, selectable SDI output formats, and simple button controls for quick setup. It’s engineered for stable, long-run SDI transmission in studio, broadcast, or live-event environments. Key capabilities: - HDMI to dual SDI conversion: one HDMI input to two identical SDI (BNC) outputs. - Built-in scaling: up/down scaling on the SDI outputs to match downstream equipment. - Selectable output resolutions: pick from 480i, 576i, 720p, 1080i and 1080p modes. - SD/HD/3G-SDI support: compatible with SD-SDI, HD-SDI and 3G-SDI standards. - Long cable runs: theoretical SDI distances of up to 300m (SD-SDI), 200m (HD-SDI) and 100m (3G-SDI), depending on cable quality. - Simple controls: front-panel buttons allow easy selection of SDI output resolution. - Low power and rugged operation: designed for reliable professional use. Technical specifications: - Brand: KIPLINK - Input Port: 1x HDMI - Output Ports: 2x SDI (BNC) - HDMI Input Resolutions: 480i60, 576i50, 720p50/60, 1080i50/60, 1080p24/25/30/50/60, 1024x768x60, 1368x769x60, 480p60, 5760p50 - SDI Output Formats: SD-SDI (SMPTE 259M), HD-SDI (SMPTE 292M), 3G-SDI (SMPTE 424M) - SDI Data Rates: 2.970Gbit/s, 1.485Gbit/s - SDI Output Resolutions: 480i60, 576i50, 720p50/60, 1080i50/60, 1080p24/25/30/50/60 - SDI Cable Distance: SD: up to 300m; HD: up to 200m; 3G: up to 100m (dependent on cable quality) - Power Consumption: <5W - Power Supply: DC 12V/1A (5V~12V compatible) - ESD Protection: Contact Discharge: ±4KV; Air Discharge: ±8KV - Operating Temperature: -10℃ to 50℃ (14-122°F) - Operating Humidity: 5% to 85% RH (Non-condensing) - Dimensions: 83x100x23mm - Weight: 230g In the box: - KIPLINK HDMI to Dual SDI Converter - Power Adapter - User Manual
