KIPLINK HDMI over Coax Extender Kit — 500m/1640ft, Loop-Out, 1080p, HDMI 1.4 / HDCP 1.4

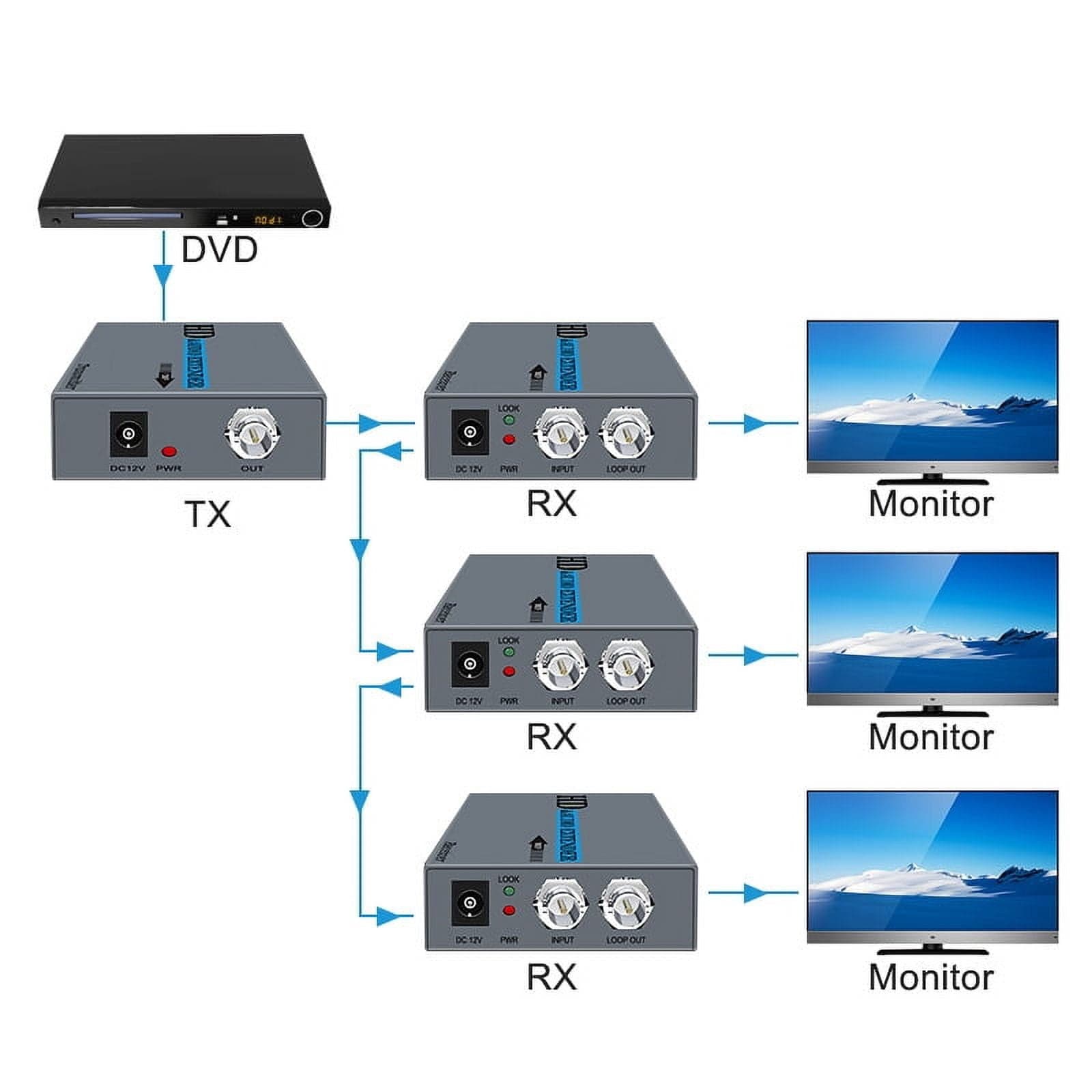

Overview: The KIPLINK HDMI over Coax Extender transmits HDMI signals over coaxial cable up to 1640ft (500m) while preserving image and audio fidelity. Designed for installations that require long-distance HDMI distribution, it includes loop-out options for flexible signal routing. Performance and Compatibility: - Maximum transmission distance: up to 1640ft (500m) over coax. - Supported cable: RG6/7/11 Coaxial Cable (75 Ohm with BNC connectors recommended, such as Belden 1694A). - Video resolutions supported: 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz (1920x1080 at 50/60Hz). - HDMI Version: 1.4. HDCP Version: 1.4. - Audio: PCM 48KHz. - Real-time transmission with minimal latency and very low signal degradation. Connectivity & Loop-Outs: - Transmitter (TX) I/O: 1x HDMI Input and 1x HDMI Loop Out. - Receiver (RX) I/O: 1x HDMI Output and 1x Coax Loop Out. - Loop-out functionality: HDMI loop-out available on the transmitter; coaxial loop-out available on the receiver to pass the signal onward. Power, Environmental & Physical Specs: - Power consumption: TX: <2.5W; RX: <2.5W. - Operating temperature: -10°C to +45°C. Storage temperature: -20°C to +60°C. - Operating humidity: 10-90% RH (non-condensing). Storage humidity: 5-95% RH (non-condensing). - Dimensions: TX & RX: 110 x 70 x 22 mm; Coax Distributor: 130 x 85 x 30 mm. - Weight: TX: 172g; RX: 177g; Coax Distributor: 295g. Important Notes & Troubleshooting: - Both the transmitter and receiver units are required for operation. A single transmitter can feed multiple receivers, but extra receivers must be bought separately. - If you encounter video-only output (no audio), try resetting the transmitter or unplugging and replugging the TX power to restore audio. Package Contents: - 1x HDMI Extender Transmitter (TX) - 1x HDMI Extender Receiver (RX) - 2x 12V DC Power Adapters - 1x User Manual
