KIPLINK HDMI Extender over Cat5e/6 — 60m (197ft) | PoE Receiver + TX HDMI Loop-Out

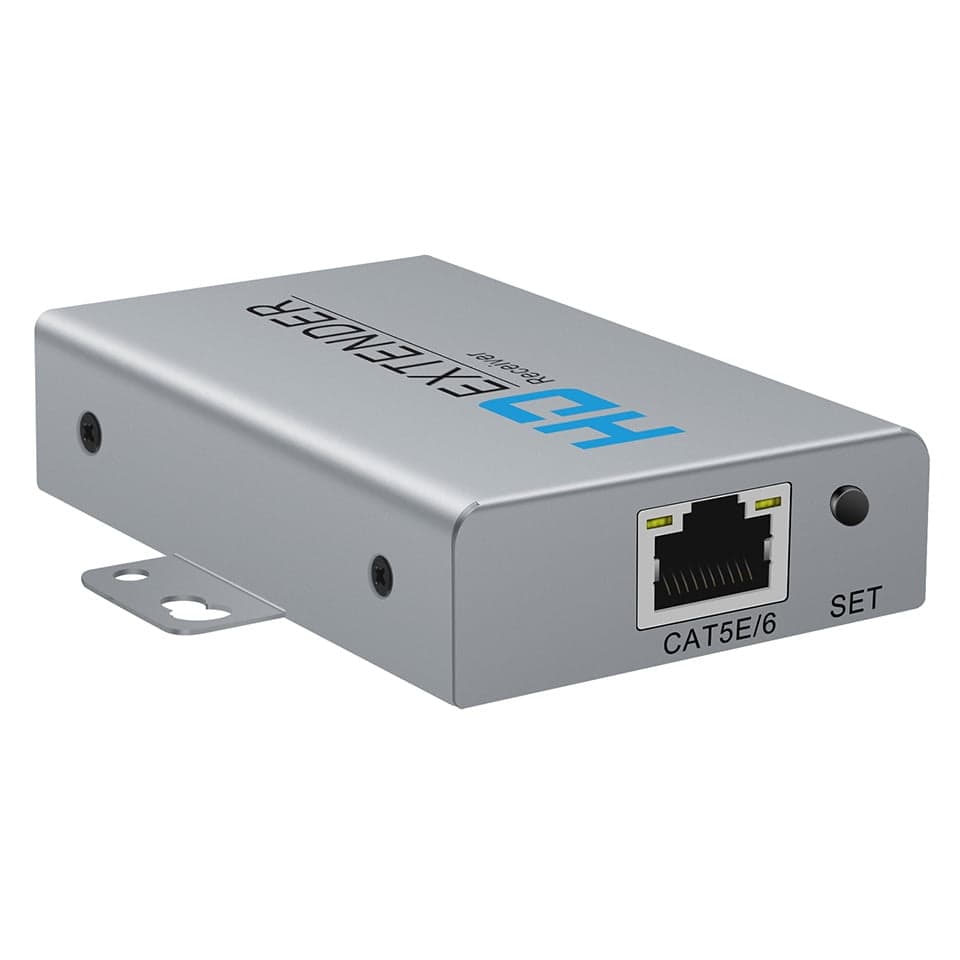

Overview: Extend an HDMI signal up to 197ft (60m) using a single Cat5e/6 cable with this KIPLINK HDMI Extender. The kit supports resolutions up to 1920x1200 and 1080p and complies with HDMI 1.3 specifications. The Transmitter (TX) includes a local HDMI loop-out for a nearby display, while the Receiver (RX) is powered via PoE to remove the need for a separate power adapter at the receiver end. Highlights: - 60m Extension: Transmits HDMI over a single Cat5e/6 run up to 197ft (60m). - High Resolution: Supports up to 1920x1200 and 1080p video. - Local Monitor Output: TX unit provides an HDMI loop-out for local viewing. - PoE Powered Receiver: RX receives power through Power over Ethernet, eliminating a dedicated RX power supply. - HDMI 1.3 Compatibility: Conforms to HDMI 1.3 standards for audio/video signaling. - Wide Format Support: Compatible with common DTV/HDTV formats including 1080p/1080i/720p/576p/480p/576i/480i. - Easier Installation: Uses Cat5e/6 cable, which is thinner and simpler to route than long HDMI runs. Technical Specifications: - Input Video Signal: 0.5-1.0 volts p-p - Input DDC Signal: 5 volts p-p (TTL) - Maximum Video Range: 1920x1200, 1080p - Output Video Signal: HDMI 1.3 - Supported Resolutions: 1080p/1080i/720p/576p/480p/576i/480i - Transmission Distance: Up to 197ft (60m) over Cat6 cable (Cat5e also supported) - Scanning: - Interlaced (50 & 60Hz): 480i, 576i, 1080i - Progressive (50 & 60Hz): 480p, 576p, 720p, 1080p - Dimensions (L x W x H): 95 x 40 x 19 mm (TX/RX) - Weight (Both Units): 375g - Package Dimensions: 210 x 150 x 50 mm Package Contents: 1x HDMI Extender Transmitter (TX) 1x HDMI Extender Receiver (RX) 1x Power Supply (for the Transmitter – RX is PoE powered) 1x User Manual
