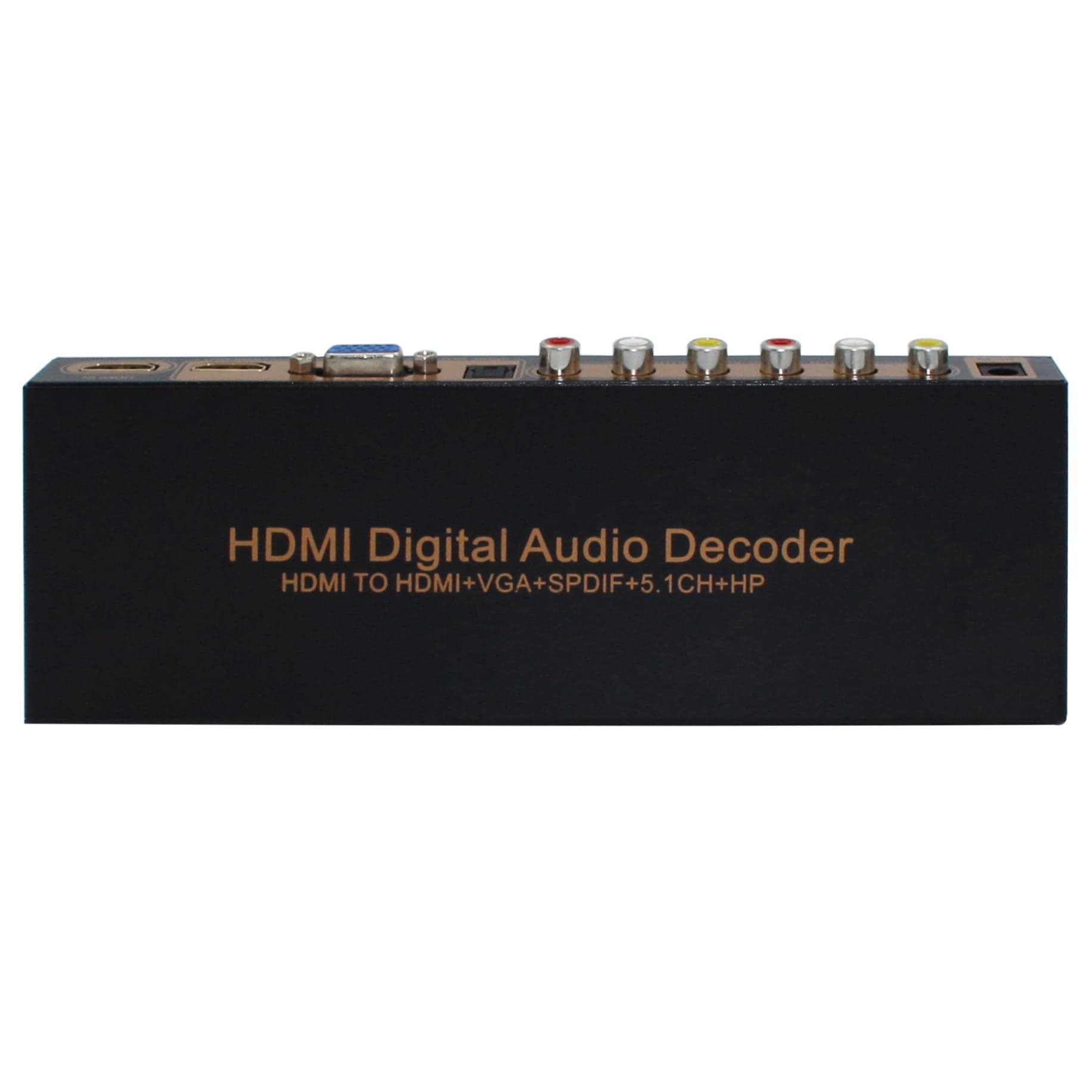

KIPLINK HDMI Audio Extractor — 5.1CH Surround, SPDIF, VGA & Headphone Output (MHL/HDMI)

Overview: Separate audio from an HDMI source while sending video to two displays. This compact KIPLINK unit extracts multi-channel sound from HDMI/MHL inputs and provides flexible analog, digital and headphone outputs while simultaneously outputting HDMI and VGA video. Audio outputs and processing: - Outputs: SPDIF optical, 6x RCA for 5.1CH analog, and a 3.5mm headphone jack. A built-in headphone amplifier can directly drive standard headphones. - Decoding: Supports Dolby Digital(AC3), DTS and LPCM digital audio decoding. Also compatible with DTS-HD, Dolby-TrueHD, LPCM7.1, DSD and Dolby-AC3. - Quality: Uses a 24-bit/96kHz audio DSP and a 24-bit/192kHz DAC for high-fidelity conversion. Video I/O and formats: - Inputs: 1x HDMI and 1x MHL (dual-mode accepts HDMI or MHL sources such as supported smartphones/tablets). - Simultaneous video: Provides both HDMI and VGA outputs at the same time to connect different display types. - HDMI resolution: Up to 1080p/60Hz (3D 24/30fs). - MHL resolution: 720p 60Hz / 1080p 30Hz / 1080p 60Hz (Pixel Combined Mode). - VGA resolution: Up to 1920x1080 @60Hz. Configuration and control: - EDID modes: Choose Pass, 2CH (stereo) or 5.1CH to match your desired audio output behavior. - Additional support: HDMI CEC control compatibility and HDCP content protection. Physical & power: - Power supply: DC 5V/1A (external adapter included). - Dimensions: 205 x 74.5 x 26 mm. - Weight: 365g. I/O summary: - Input ports: 1x HDMI, 1x MHL. - Output ports: 1x HDMI, 1x VGA, 1x SPDIF Optical, 6x RCA (5.1CH), 1x 3.5mm Headphone Jack. Supported HDMI audio formats: DTS-HD / Dolby-TrueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD Supported digital audio decoding formats: Dolby Digital(AC3) / DTS / LPCM What's in the box: - KIPLINK HDMI Audio Decoder - Power Adapter (DC 5V/1A) - User Manual
