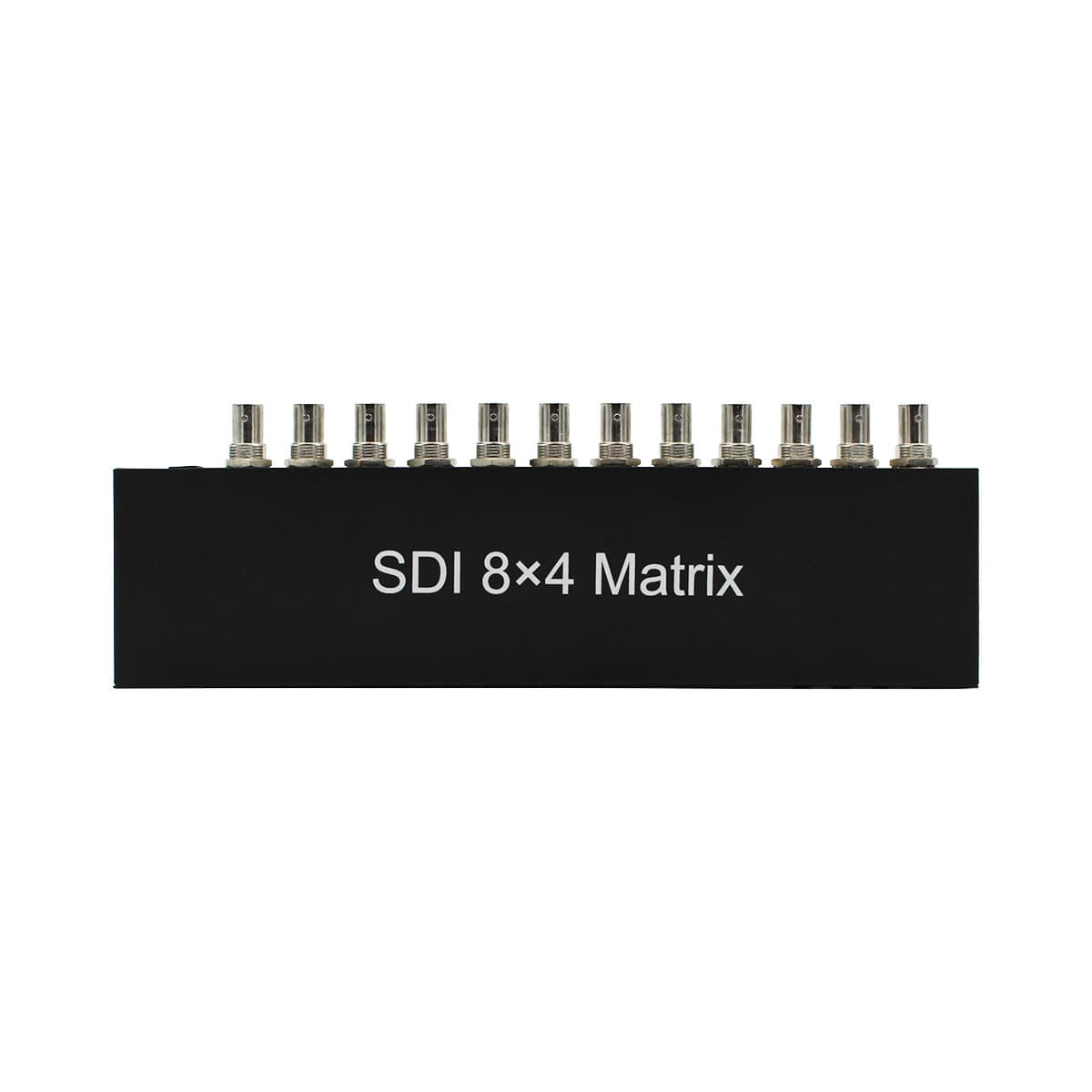

KIPLINK 8x4 SDI Matrix Switcher — Broadcast-Grade SDI Router with Seamless Switching (SD/HD/3G-SDI)

Overview: The KIPLINK 8x4 SDI Matrix Switcher provides professional, seamless routing of video signals by allowing any of the eight SDI inputs to be sent independently to any of the four SDI outputs. Built for stable, continuous operation, it is suited to demanding broadcast and pro-AV environments. Signal Compatibility: Supports SD/HD/3G-SDI formats — SD-SDI (270Mbps), HD-SDI (1.485Gbps) and 3G-SDI (2.97Gbps) — and delivers Full HD video up to 1080p. Connections & Standards: Input Ports: 8x BNC (SDI). Output Ports: 4x BNC (SDI). Compliant with SMPTE 424M, SMPTE 292M and SMPTE 259M-C standards. Operation & Build: Features easy-to-use controls for straightforward signal routing. The unit is housed in a robust metal enclosure for durability in production and studio settings and is engineered for high reliability under continuous use. Typical Uses: Ideal for broadcast studios, post-production suites, security monitoring systems and live presentation setups where flexible SDI routing and dependable performance are required. What's in the Box: KIPLINK 8x4 SDI Matrix Switcher, Power Adapter, User Manual.
