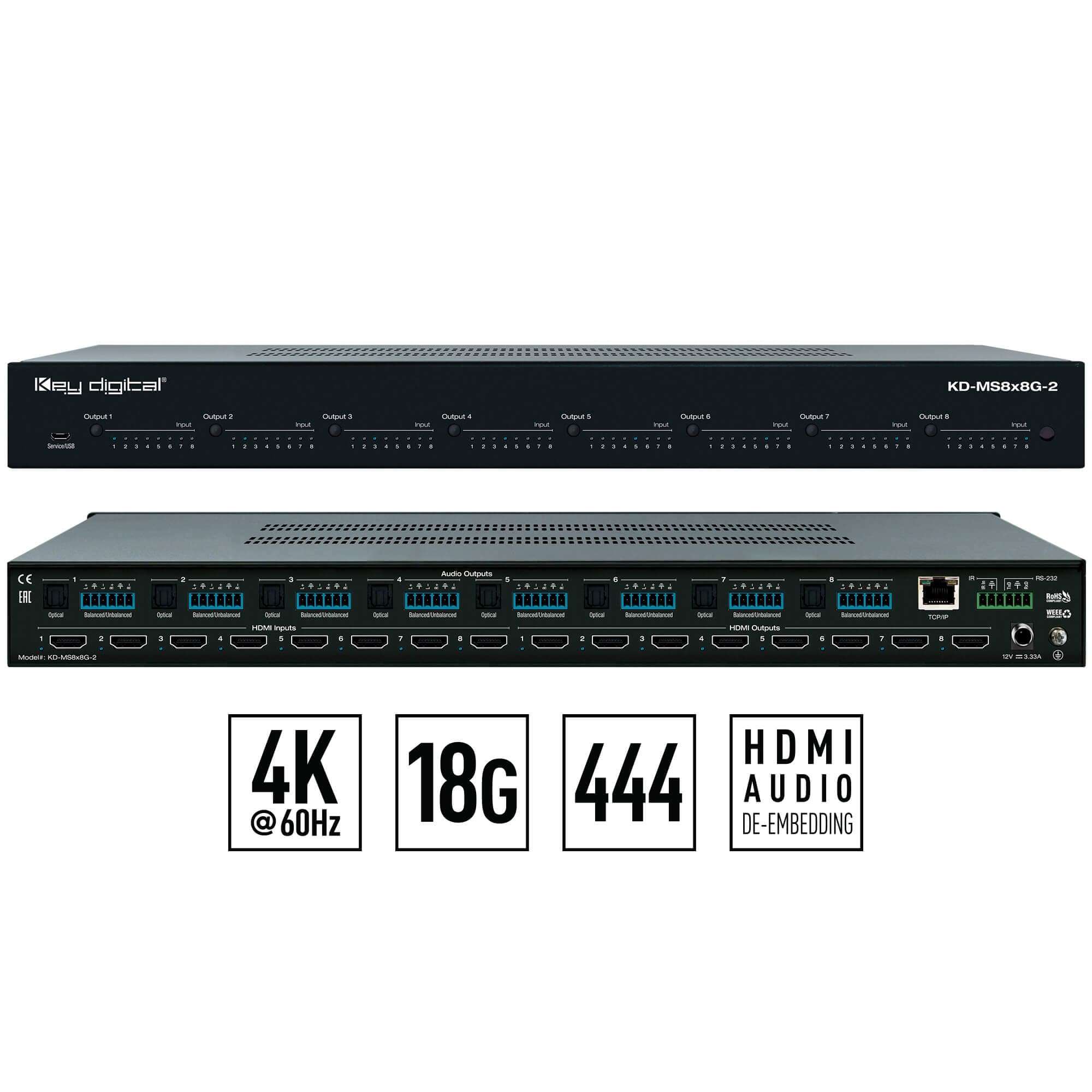

Key Digital KD-MS8x8G-2 8x8 HDMI Matrix Switch — Independent HDMI & Audio Routing

Overview: The Key Digital KD-MS8x8G-2 provides an 8 HDMI source to 8 HDMI output matrix with independent audio routing, allowing HDMI and de-embedded audio to be routed together or separately for flexible system designs. Ultra HD / Resolution Support: Delivers Ultra HD/4K performance at 4096x2160 or 3840x2160 at 24/25/30/60Hz with 4:4:4 chroma (signals up to 18Gbps bandwidth). It supports all SD, HD and VESA resolutions (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p. HDR & HDCP: Fully HDCP licensed and compatible with HDCP 2.2. Supports HDR10 and Dolby Vision® for extended luminance range and more realistic imagery. Color & Deep Color: Handles deep color up to UHD/4K 60Hz 4:2:0/12 bits and 60Hz 4:2:2/12 bits for rich, accurate color reproduction. Audio Features: Includes audio de-embedding with 6-pin balanced/unbalanced outputs and a digital optical output. The unit supports 2-channel and multi-channel surround formats including Dolby Digital®, DTS™ up to DTS-HD Master Audio™, DTS: X®, Dolby® TrueHD and Dolby Atmos®. Control & Management: Configure routing and basic settings from any web browser using the built-in Web UI. The matrix is Key Digital® App and KDMS® Pro ready — it can scan and detect connected devices for pre-built GUIs and TCP/IP control via the Key Digital® App and Key Digital Management Software™ Pro (KDMS™ Pro). PC setup Software provided.
