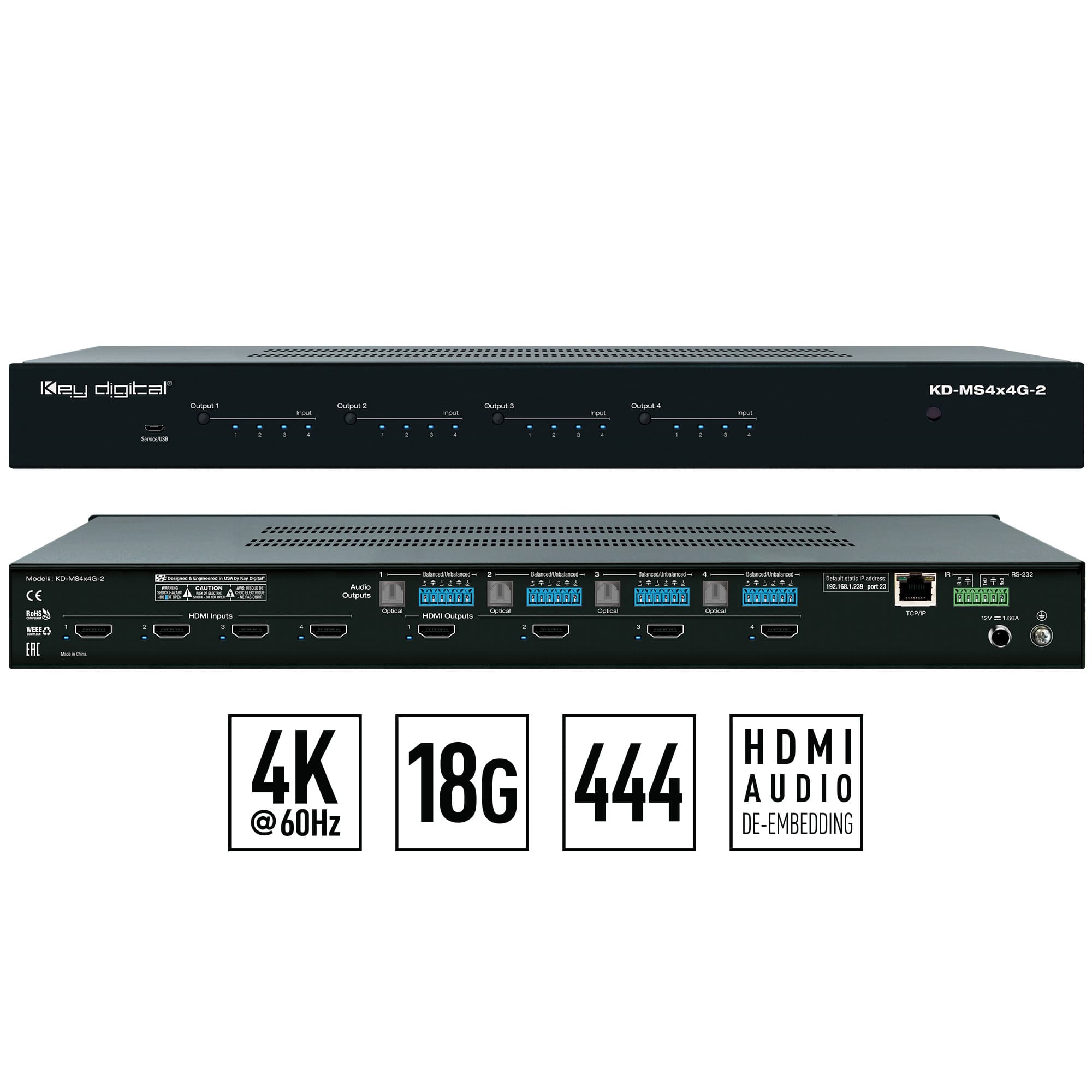

Key Digital KD-MS4x4G-2 4x4 4K 18G HDMI Matrix Switch — Independent Audio Routing, 8 Ports, 5.62lbs, Black

Overview: The Key Digital KD-MS4x4G-2 is a 4x4 HDMI matrix that connects 4 HDMI sources to 4 displays (totaling 8 HDMI ports) and provides independent audio routing for flexible AV configurations. Video Capabilities: Handles Ultra HD/4K signals at 4096x2160 or 3840x2160 with 24/25/30/60hz at 4:4:4, supporting signals up to 18Gbps bandwidth. Fully HDCP licensed and compatible with HDCP 2.2. HDR formats supported include HDR10 and Dolby Vision® for expanded luminance and more life-like images. Resolution coverage includes all SD, HD, and VESA modes (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p. Deep color is supported to UHD/4K 60Hz 4:2:0/12 bits and 60Hz 4:2:2/12 bits. Audio Features: The unit can de-embed audio via a 6-pin balanced/unbalanced connector and digital optical outputs. HDMI outputs and separate audio outputs may be routed together or independently, enabling versatile matrixed audio/video layouts. Supported audio codecs include 2-channel and multi-channel surround up to DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD and Dolby Atmos®. Control and Setup: Manage routing and basic functions from any web browser with the built-in Web UI. The KD-MS4x4G-2 is Key Digital® App & KDMS® Pro Ready — it can scan & detect population for a pre-built GUI and supports TCP/IP control via the Key Digital® App and Key Digital Management Software™ Pro (KDMS™ Pro) PC setup Software.
