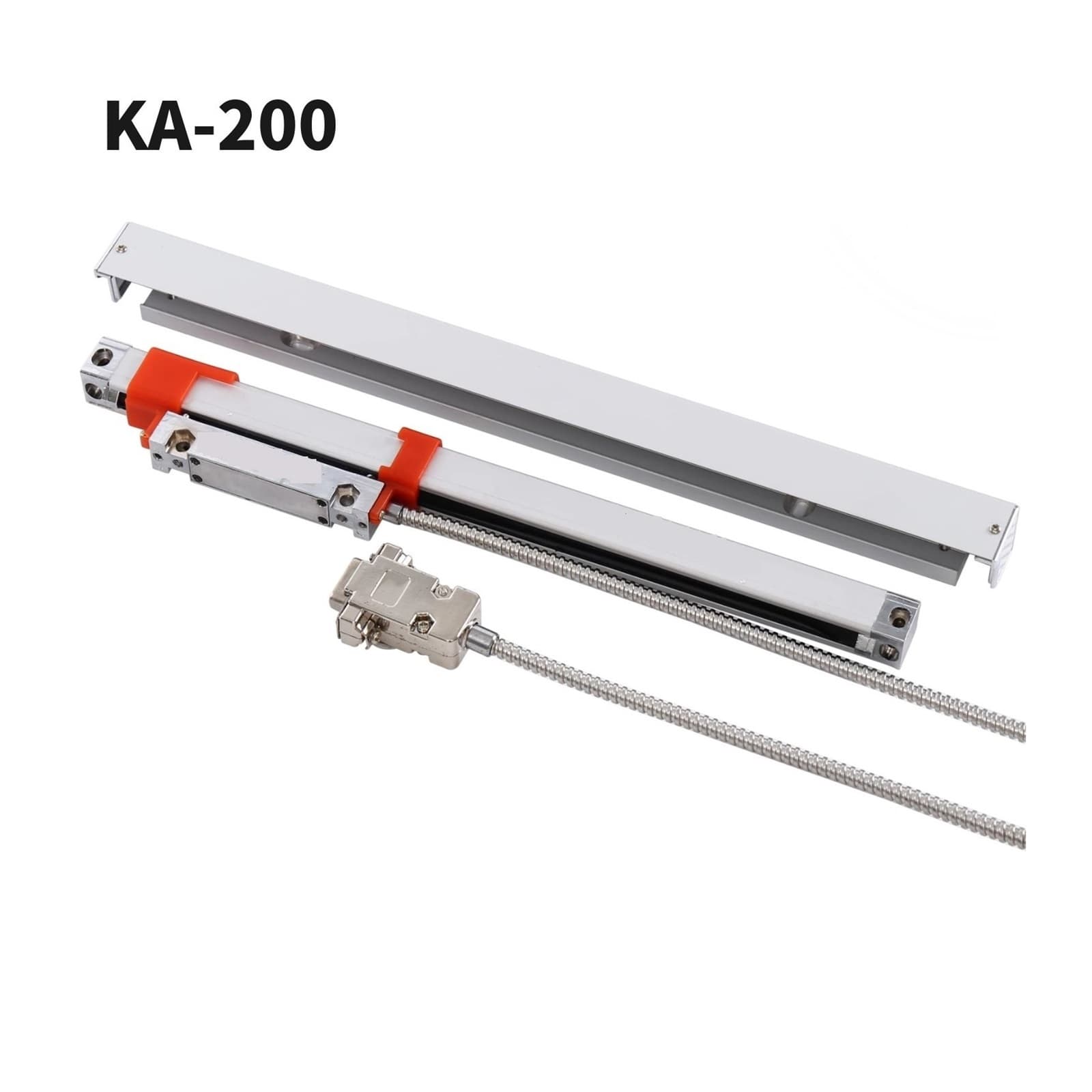

KA-200 16mm*16mm Slim Linear Scale KA200 30 40 50 60 70 80 90 100 110mm 0.005mm TTL Thin Grating Ruler Optical Encoder ,Precision

Professional design, beautiful appearance generous, counts the frequency response is fast and powerful. Die-casting alloy shell, the surface electric pensu processing, dustproof wear-resisting, good shielding. Professional design, independent power supply, to adapt to the range, high stability, strong anti-jamming capability.

Power supply and signal anti-interference ability, and panel of buttons, change is simple and convenient. Directly on the digital table for functional operation functions such as sine, cosine, tangent function, convenient KA-200 Parameter Available Measrus Length: 30mm-360mm Cross Section: 16mm X 16mm Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm) Reference Point: one unit per 50mm Max of Measuring speed: 60m/min Protection level: IP55 Resolution: 5um(0.005mm) Output signal: TTL Cable standard: 2 meters Bar Pitch: 0.02mm Power: +5V±5%, 80mA Operating temperature:0-45 egree centigrade Connetor: 9 Pins 1.

A, 2. 0V, 3. B, 4. Empty, 5. Z, 6. A, 7. +5V, 8. B, 9 . Z Package content: 1 piece KA-200 scale, 1 piece scale cover, 1 bag screws
