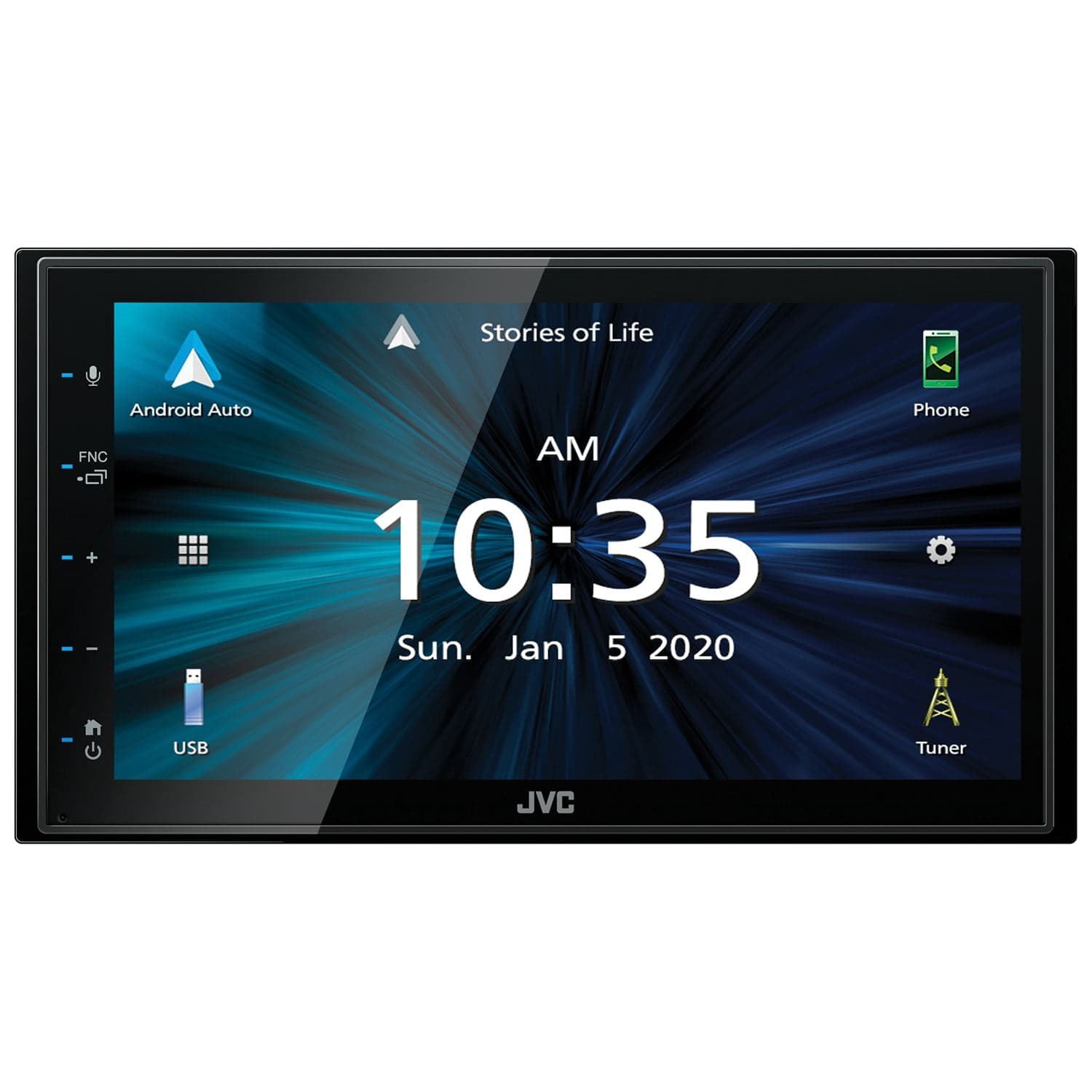

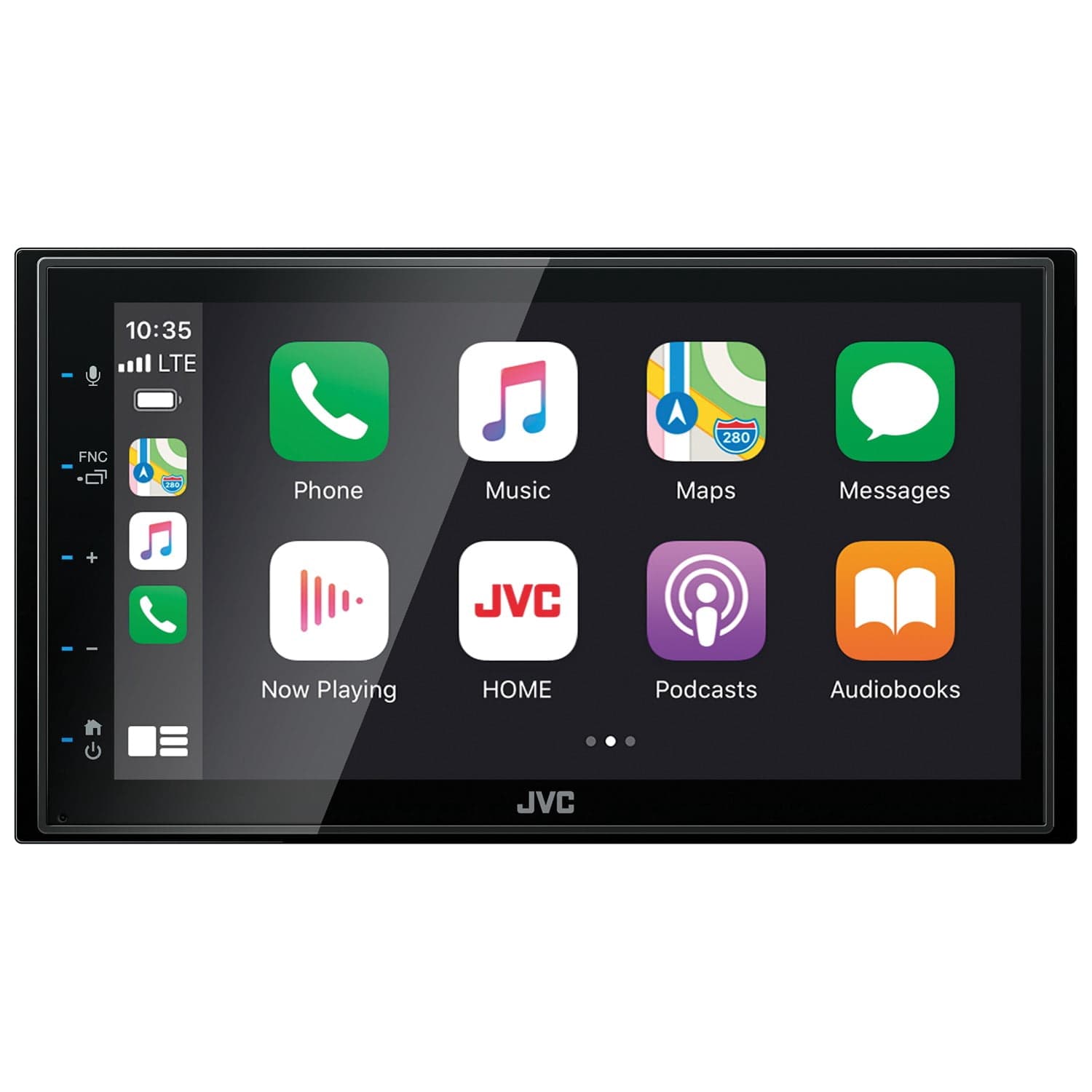

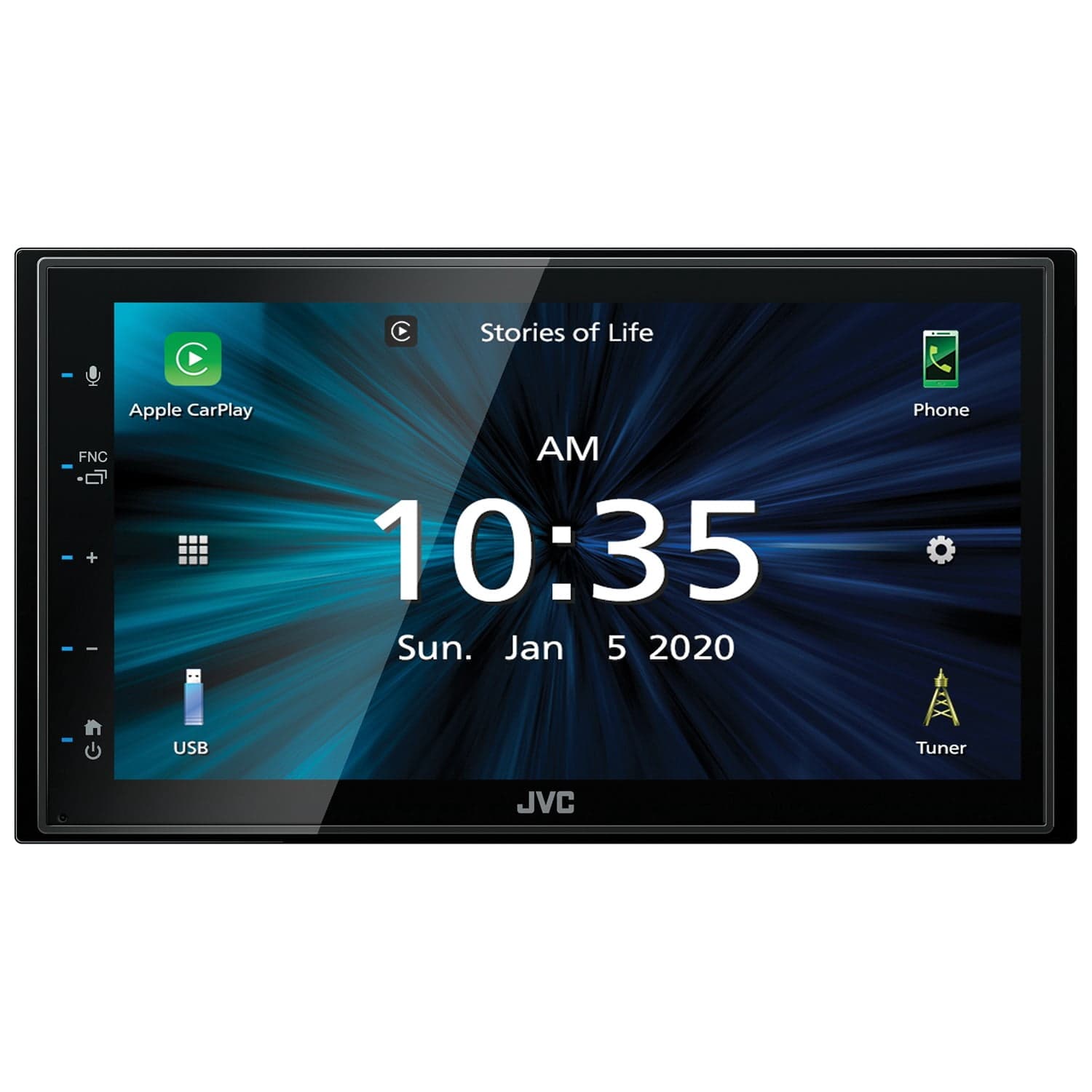

JVC KW-M560BT 6.8" Double-DIN Touch Receiver — Wired Apple CarPlay & Android Auto, Bluetooth, SiriusXM Ready
Compact, vehicle-friendly design: the JVC KW-M560BT features a shallow 3-inch chassis that fits a wide range of cars and trucks, plus an adjustable viewing angle for its capacitive 6.8" touchscreen. Connectivity and controls: built-in Bluetooth supports hands-free calling and audio streaming, while wired Apple CarPlay and wired Android Auto provide seamless smartphone integration. Android devices can also use wired USB mirroring, and a rear USB port offers additional connectivity. Camera and satellite support: includes one camera input for backup or front cameras, and is SiriusXM Ready (tuner and subscription sold separately). Powerful, customizable sound: delivers 22 Watts x 4 channels RMS and includes a 13-band equalizer for detailed tuning. For system expansion there are three pairs of 2-volt preamp outputs. What’s in the box: wiring harness; two 39-inch USB extension cables; microphone with bracket (attached 10 ft. cable terminated by a right-angle mono 3.5 mm connector); 7-inch male minijack to female RCA adapter cable; self-adhesive pad; six pan-head ISO-mount screws; six flat-head ISO-mount screws; and a quick-start guide.
