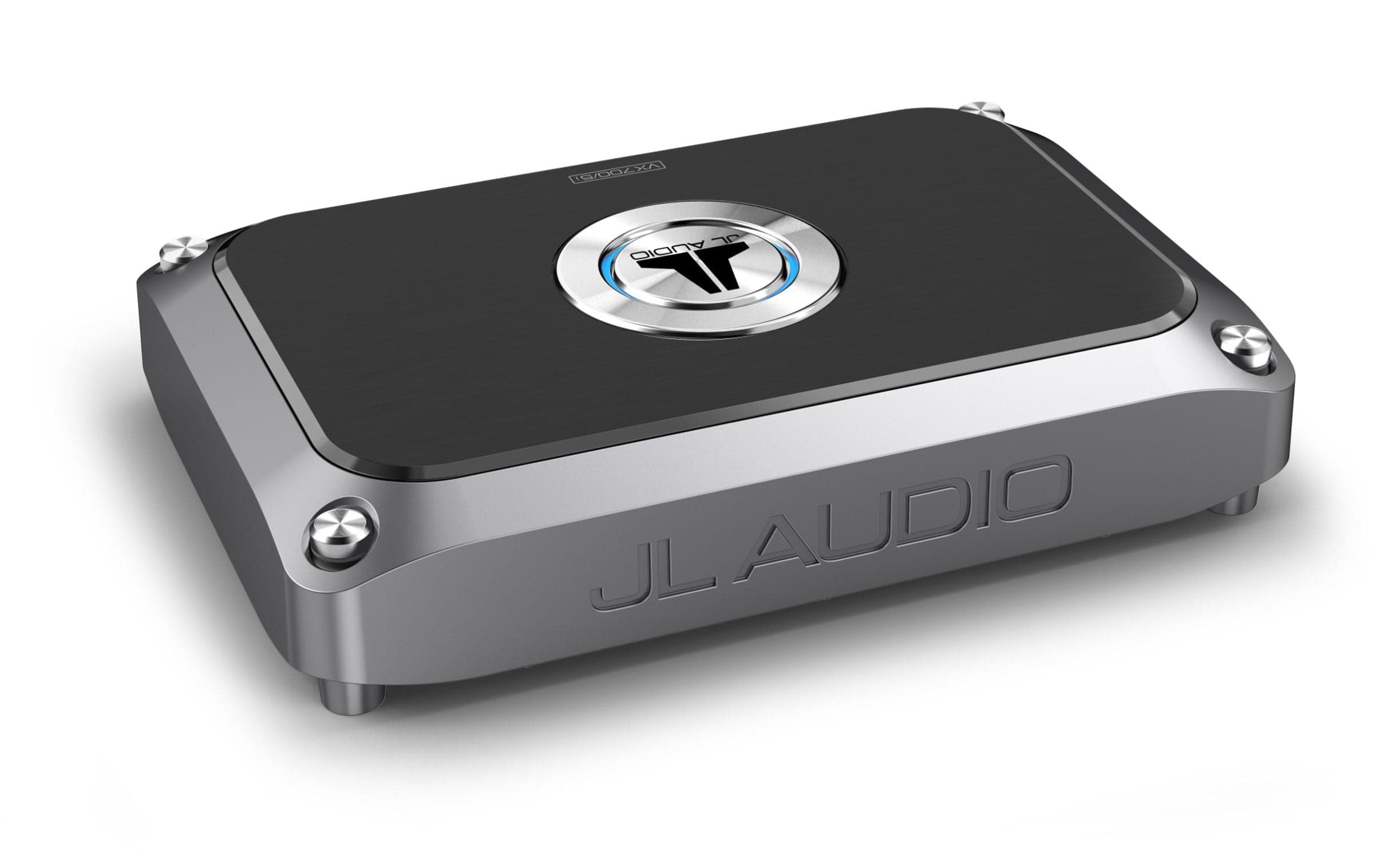

JL Audio VX700/5i 5-Channel Class D System Amplifier — 700 W with Integrated DSP

Integrated, precision DSP for each channel lets you set timing, frequency response and output levels to achieve outstanding audio performance. TüN™ Software provides a clear, easy setup experience and is available free for computers and most handheld devices, allowing fast adjustments from a familiar interface. 2nd-Gen NexD2™ Switching Amplifier Technology uses advanced high-speed switching plus a DSP-synchronized power supply and output stages to deliver reference-grade power, excellent efficiency and very low noise and distortion.

Inputs and outputs are highly flexible: Differential-Balanced Analog Inputs accept speaker-level signals up to 16V RMS (including factory-installed systems) and offer strong noise rejection to reduce alternator whine and other interference. Optical Digital (Toslink) Inputs accept S/PDIF sources directly—bypassing the A/D converter—and support up to 24 bit/192 kHz.

Analog and digital pre-outs are available as pass-through or fully configurable outputs: RCA Pre-Outs (4V RMS Max) plus an Optical (Toslink) Output at 24 bit/96 kHz. Automatic turn-on can be handled via signal-sensing or DC-offset sensing.

JLid™ System Command and Control provides the communications backbone for VXi amplifiers and compatible accessories, enabling networked control and preset management. Supported accessories include DRC-100 / DRC-205 (Digital Remote Controllers) for convenient DSP preset selection and level control from the driver’s seat, the VXi-BTC Bluetooth® Communicator for wireless configuration from compatible iOS® or Android® devices, and the VXi-HUB Optical Network Hub, which links up to six VXi amplifiers for full-system DRC control and preset selection (two VXi-HUBs can be daisy-chained to manage up to ten VXi amplifiers).
