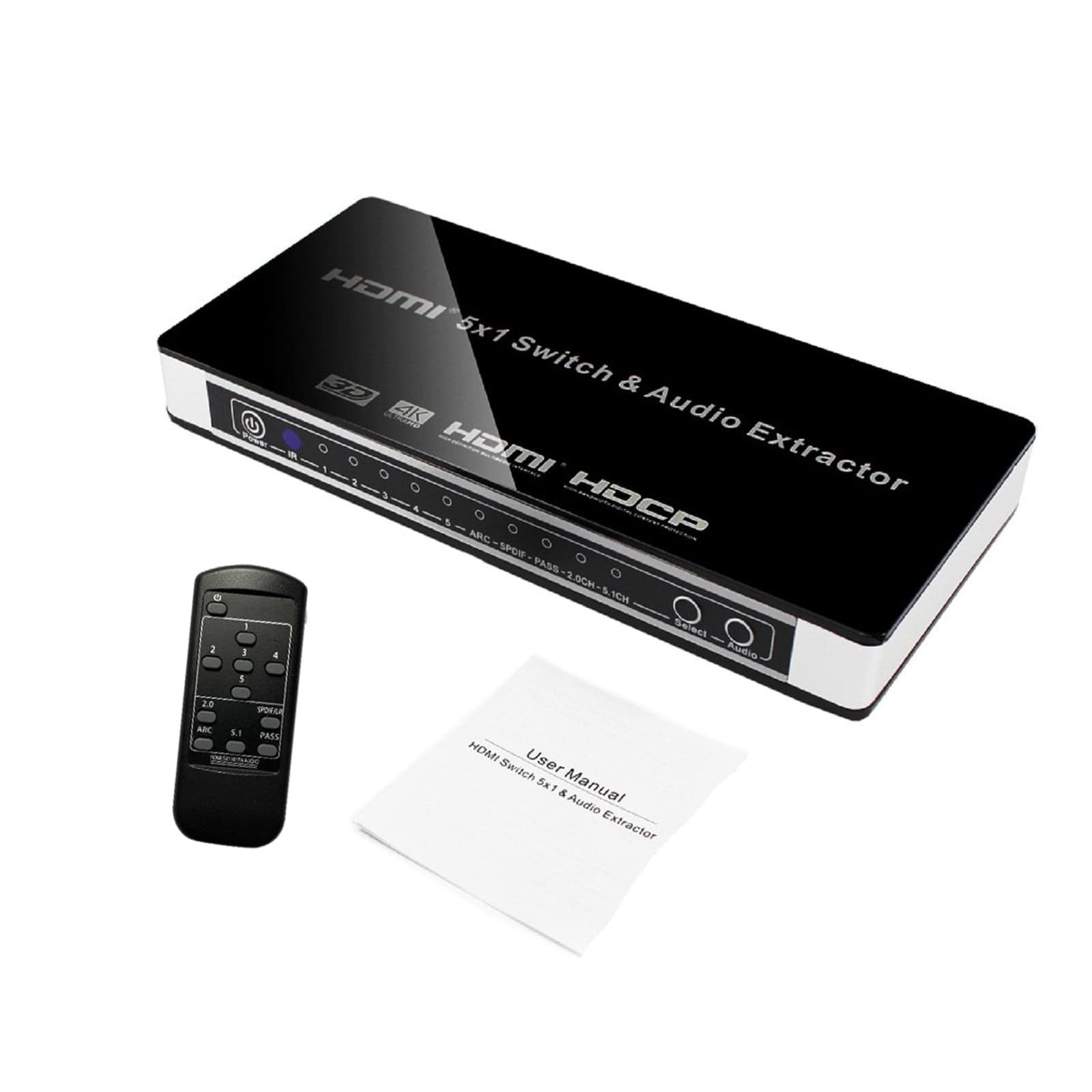

JIAHAOO 5-in-1 HDMI Switch & Audio Extractor — 4K 3D, ARC, Toslink & RCA Output for PS5/PS4/Xbox/TV Box to Monitor/Projector

Overview: This JIAHAOO 5-in-1 HDMI switch combines video switching and audio extraction for connecting consoles, set-top boxes and media players to monitors or projectors while providing multiple audio output options. Video specifications: Supports Ultra HD 4K2K resolution maximum and 3D up to 1080p/24 max. Video color is supported up to 36-bit Deep Color on all channels. Audio outputs: HDMI pass-through supports up to 7.1CH. Optical Toslink provides up to 5.1 ch output. RCA L/R offers stereo analog audio output. Signal and bandwidth: Maximum bandwidth per channel is 300MHz with a maximum baud rate per display of 9.95Gbps. Input/Output TMDS signal level: 0.5~1.5v p-p (TTL). Input/Output DDC signal level: 5V p-p (TTL). Cable distance guidelines: Input cable distance: <15m using 24AWG HDMI high speed Cable at 1080P@24bit 60Hz. Output cable distance: <15m using 24 AWG HDMI high speed Cable at1080P@24bit 6OHz.
