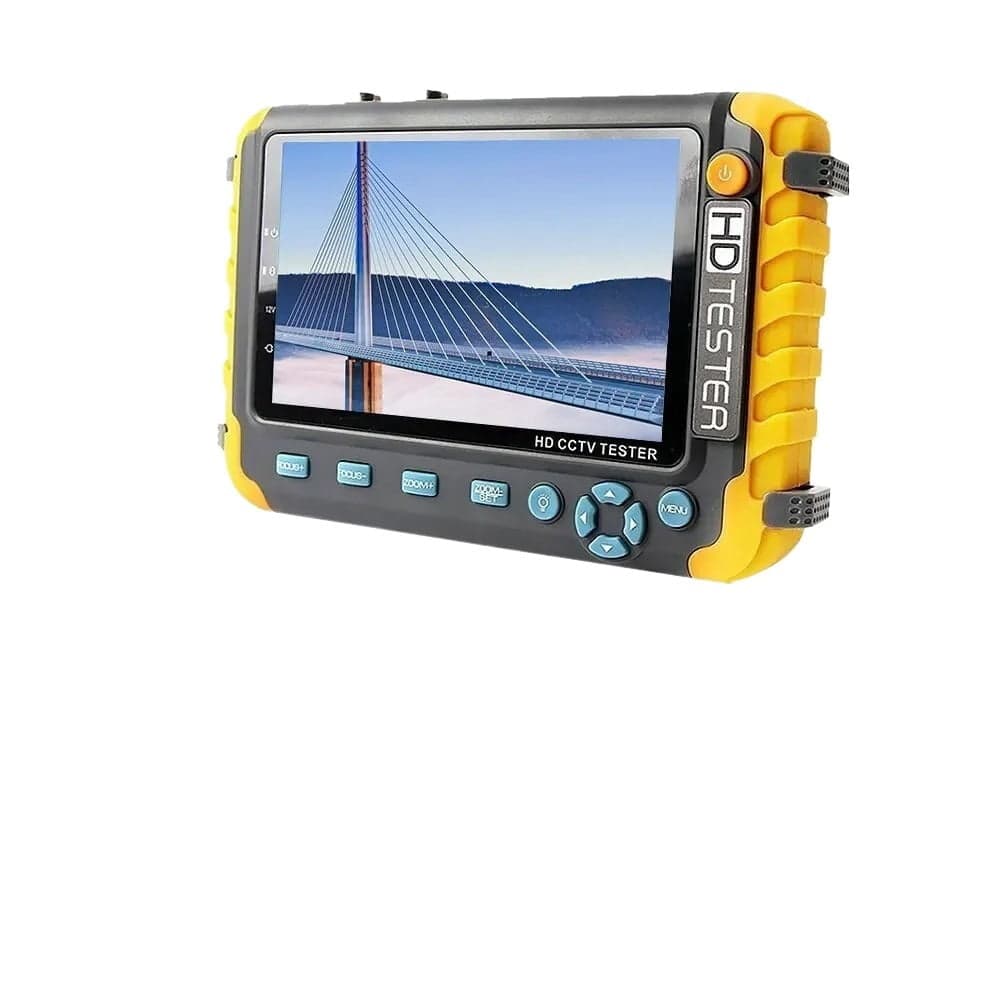

IV8W 4K 5 Inch 8MP Camera Tester — AHD/CVI/TVI CVBS Analog with VGA Input & UTP CFTV for Video Surveillance Testing

Designed for field installation and maintenance of Analog Camera (CVBS) and HD coaxial cameras with AHD (NOT Support IP Camera), this IV8W tester combines a compact 5-inch display with multiple on-site diagnostic tools. The unit provides video display, PTZ control, DC12V (1A) power output for camera powering, test functions, image generator, RS485 data searching, cable testing and an LED lamp. Video inputs include AHD/CVI/TVI/CVBS and a VGA 11 compliant digital input — once VGA video is connected, switch the selector to VGA/Mode. The maximum VGA input resolution supported is 1920*1440 and the tester also accepts 1.0 signal input. The video monitor features a high-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display and supports PAL/NTSC standard video signals. Built-in Pelco-D / P PTZ control protocols over the RS485 interface let you move the camera up, down, left and right, and adjust zoom and aperture size from the unit. This tester is useful for demos and troubleshooting when an external power source is not available thanks to its DC12V (1A) output.
