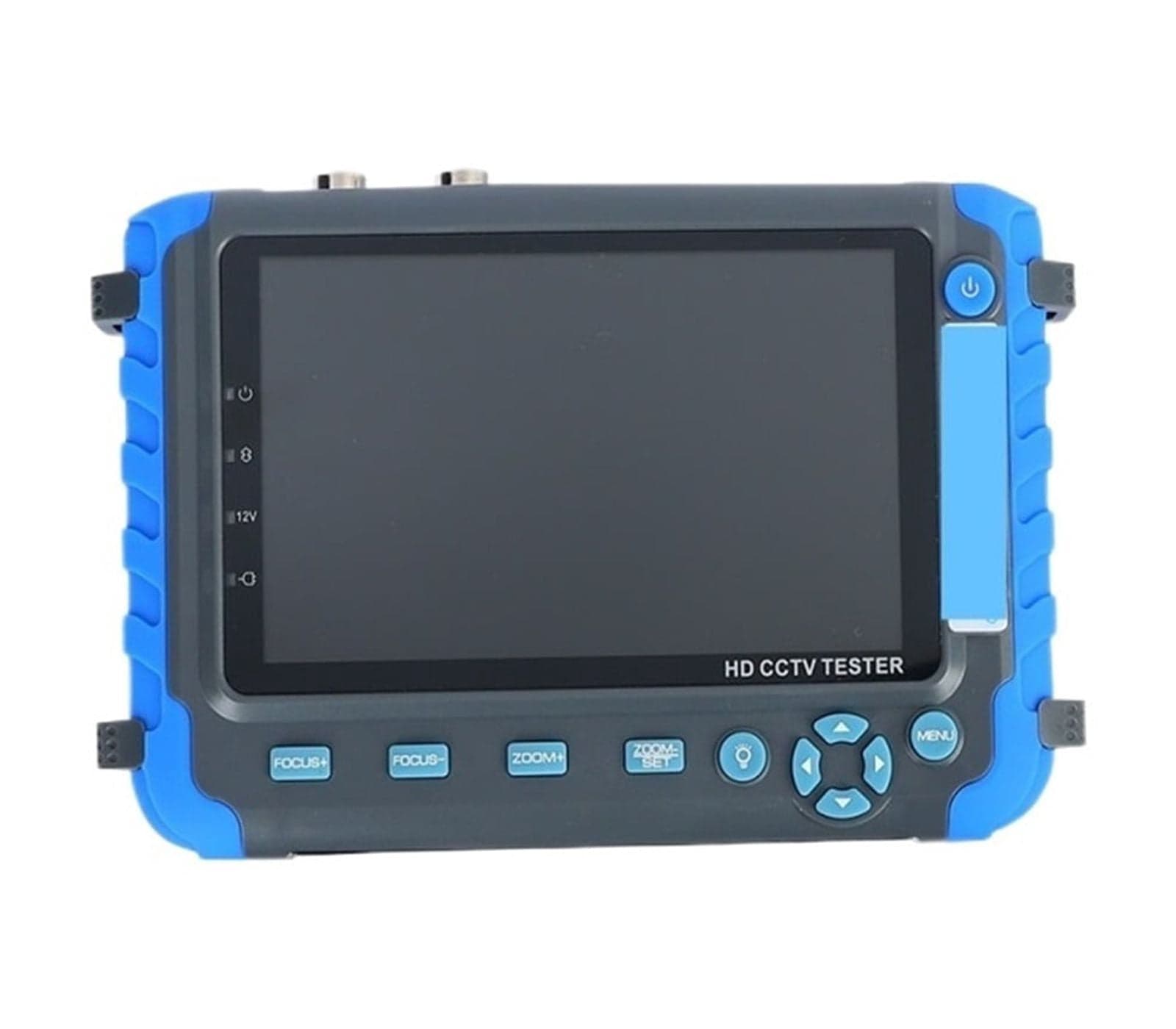

IV8C plus CCTV Tester — 8MP AHD/TVI/CVI/CVBS Coaxial Camera Tester with PTZ Controller, UTP Cable Test & DC12V 1A Output

Note: IV8C plus does not support VGA input. It supports CVBS plus AHD (8MP), TVI (8MP) and CVI (8MP) camera signals. Camera video test capabilities: AHD — 8MP, 7MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P; TVI — 8MP, 7MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P; CVI — 8MP, 7MP, 6MP, 4MP, 3MP, 1080P, 720P. Product overview: Designed for field installation and maintenance of HD coaxial cameras (TVI, CVI, AHD, Analog/CVBS), this tester combines video display, PTZ control, DC12V output, image generation, RS485 device search, cable diagnostics and an LED work light. Main features: - Display: Built-in high-resolution 5.0 inches 800 (RGB) x 480 wide viewing angle screen. - Video standards: Supports PAL/NTSC and CVBS testing. - PTZ control: Supports Pelco-D / P protocols via RS485 to drive PTZ up/down/left/right, control zoom and adjust aperture. - Image generator: Multi-format video OUT port for sending various standard color test patterns (e.g. PAL, NTSC). - Power output: DC12V 1A output to power cameras directly from the tester. - Signal testing: Accepts input from pickup devices for on-site verification. - Cable test: Inspect UTP, telephone and similar cables for pair order and continuity; testing reports can be saved. - HD camera support: Tests HD TVI, CVI and AHD cameras, up to 8MP; when a compatible signal is present the unit displays the camera image. - LED lamp: Built-in LED light with On/Off button to assist installation and maintenance in low-light environments.
