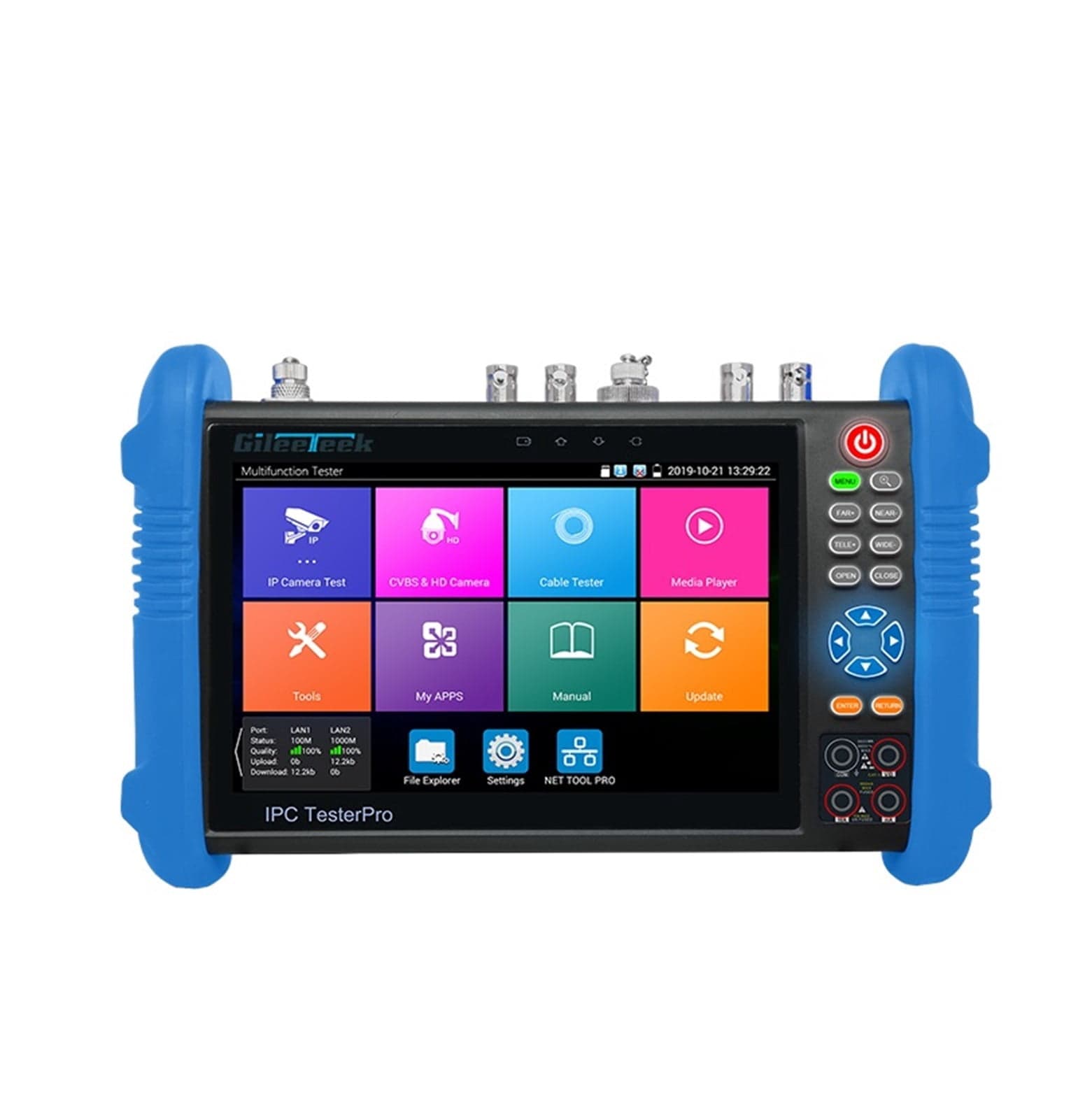

IPC-9800 7-inch IPS Touch Screen CCTV Tester — 12MP IP & 8MP HD-TVI/AHD/CVI/SDI Tester Plus

Overview: The IPC-9800 is a 7-inch IPS touch screen field monitor and CCTV tester designed for both IP and coaxial camera systems. It supports advanced video codecs and provides tools for inspection, troubleshooting and reporting on-site. IP Camera Testing: Supports IP camera test up to Max 12MP 4K with H.265/H.264. Compatible with IP/Quick OVIF/RTSP play/Client APK. Rapid Video function enables Auto view the video and create testing report for swift verification. Coaxial & Analog Camera Testing: Performs coaxial HD camera test up to Max 4K 8MP for TVI/AHD/CVI/SDI models at 3840 x 2160P. The unit supports coaxial PTZ control & call OSD menu. For CVBS camera test there is 1 BNC input NTSCPAL (Auto adapt). It also supports PAL/NTSC color bar test. PTZ & Protocols: PTZ control is available via RS485 control with Baud 600-115200bps. The tester is compatible with more than 30 protocols, such as PELCO-D/P etc., providing broad support for legacy and modern devices. AXIS Camera Support: To test AXIS IP cameras, install the APP "Axs test tool" (suitable for AXIS testing through automatic update before testing) to enable direct compatibility and streamlined checks. TDR Breakpoint Test (Hardware Support): Built-in TDR cable Breakpoint Test quickly measures the length of power, BNC cable, network cable, telephone cable, RVV cable and elevator cable, and cat 5/6 cable's over a distance of up to1200 meters. The function detects whether a cable is unblocked and locates breakpoints precisely. The included cable tester tool can check network cable arrangementtype and continuity. Optical Power Meter: Detector type: InGaAs; Calibration wavelength: 1625nm, 1550nm, 1490nm, 1310nm, 1300nm, 850nm; Power measurement range (dBm): -70 to +10; Measurement accuracy: <±3%dB (-10dBm, 22), <±5%dB (full scale, 22); Display resolution: Linear display 0.1%, logarithmic display 0.01dBm; Connector: Active FC/PC; Working temperature: -10 to +50(14~122); Storage temperature: -20 to +70(-4~158). Red Visible Light Source: Type: LD; Calibration wavelength: 650nm; Output power: 10mW; Modulation mode: CW/1Hz/2Hz; Measuring range 8000 meter; Connector: Active FC/PC; Working temperature: -10 to +50(14 to 122); Storage temperature: -20 to +70(-4 to 158). Use Cases & Keywords: Ideal as a touch screen monitor cctv, CCTV Monitor, CCTV Monitor & Display for video surveillance installations, diagnostics and field service work.
