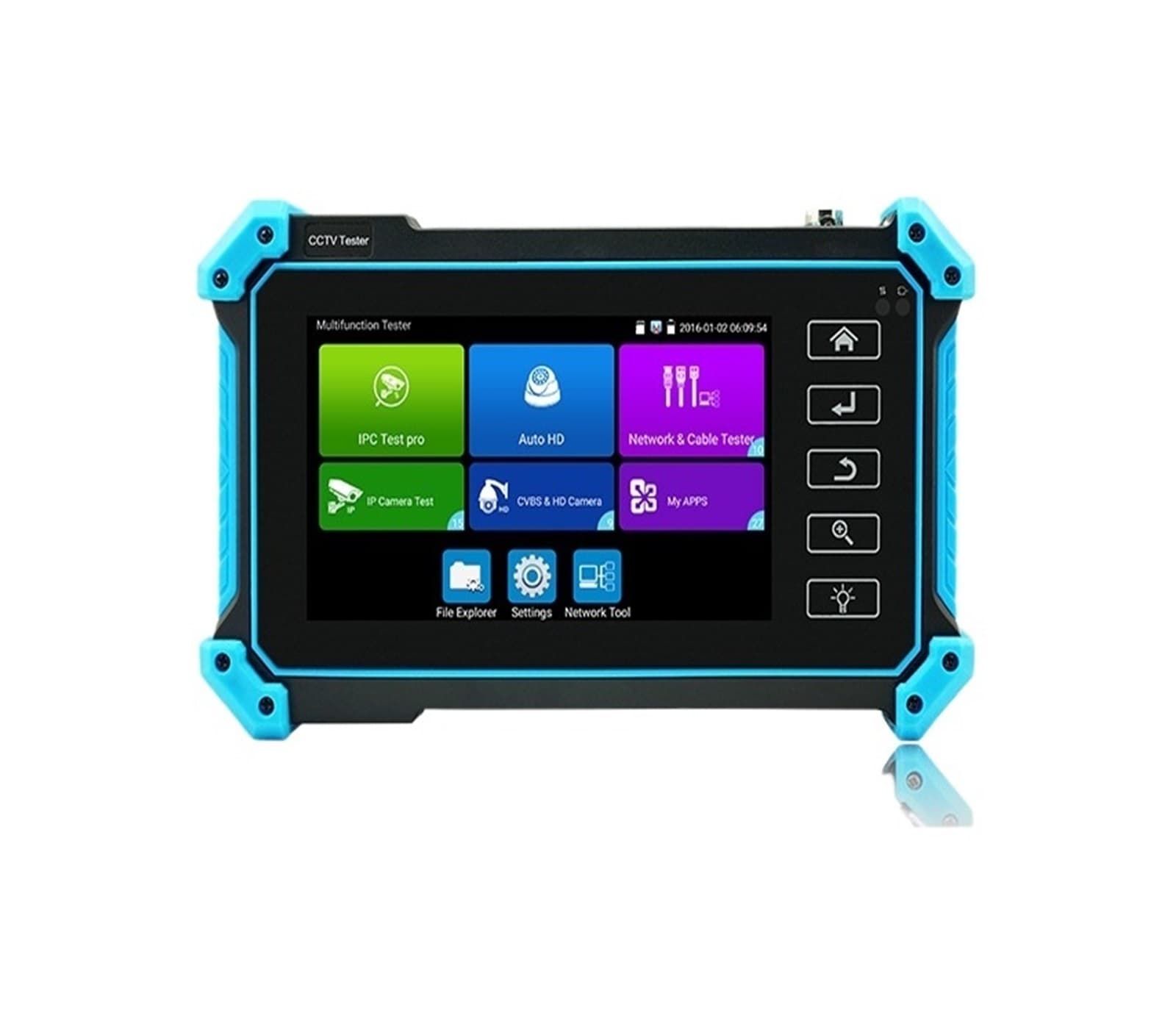

IPC-5200 Plus 5.4 Inch IPS 8MP 6-in-1 IP/Analog Camera Tester — CVI/TVI/AHD/EX-SDI/HD-SDI/3G-SDI, VGA & 4K HD Input

Overview: The IPC-5200 Plus is a compact 5.4-inch IPS touchscreen tester built for installation and maintenance of IP, analog and HD coaxial surveillance cameras. Its 1920*1080-capable display lets you view network HD and analog camera feeds in high detail. Video input & codec support: Compatible with up to 8MP CVI/TVI/AHD cameras and up to 8MP EX-SDI, HD-SDI and 3G-SDI devices. Supports H.265/H.264 decoding and can display 4K video via standard VGA input. Input frame rates include 1920 x 1200P 60FPS and 4K 30FPS. Power & report features: Provides DC12V 3A and 48V POE power output to power cameras on-site. Includes tools to create test reports and to modify IP addresses for network devices. Camera detection & control: Automatically detects HD coax camera type and resolution (Auto HD) and supports a wide range of PTZ and analog PTZ control protocols. Cable diagnostics: Built-in RJ45 TDR cable testing and UTP cable quality checks identify near-end, mid-end and far-end fault points on RJ45 cabling. Languages: Interface supports English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish and Portuguese. Applications: Designed as an all-in-one field tester for CCTV installers, the IPC-5200 Plus reduces the need to carry multiple tools, improves safety on site and speeds up troubleshooting and deployment.
