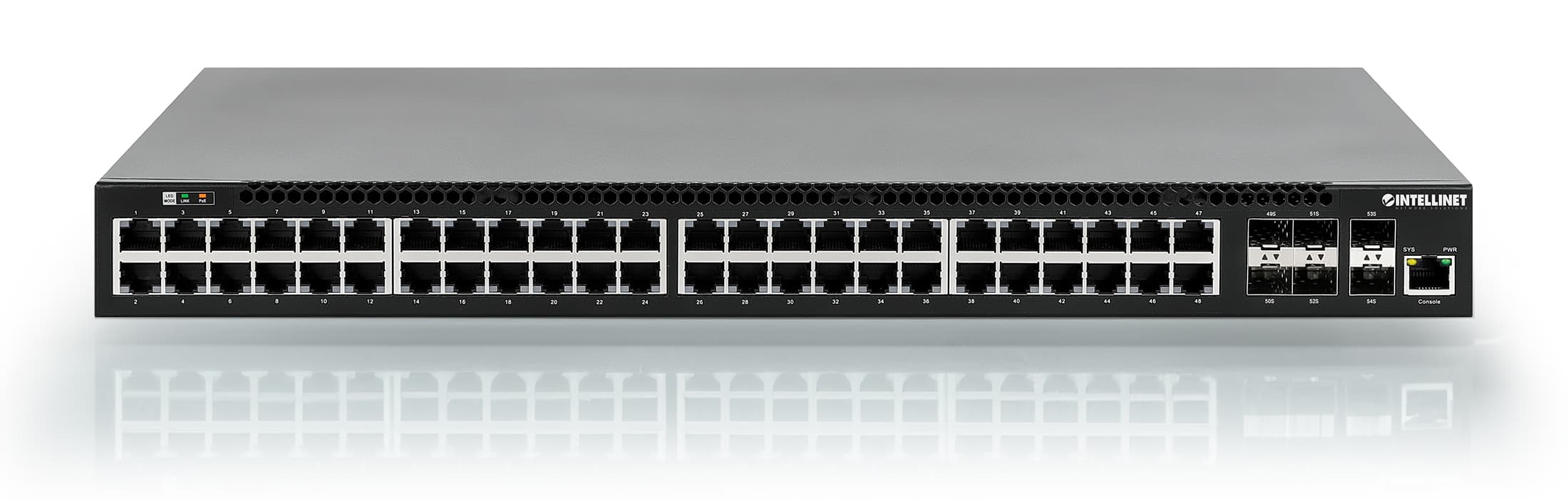

Intellinet 54‑Port Layer 3 Managed PoE+ Switch — 48 PoE+ Ports, Six 10G SFP+ Uplinks, 850W PoE Budget, OSPF & VRRP, NDAA-compliant

Overview: Enterprise-grade Layer 3 managed switch with 54 ports, including 48 PoE+ interfaces and six SFP/SFP+ slots for 10G uplinks. Provides an 850W PoE budget to support up to 48 powered devices, delivering up to 30 watts per port. Ideal for converged networks requiring high PoE capacity and high-speed uplink connectivity. Routing & Protocols: Supports static and dynamic IP routing with full RIP and OSPF support and VRRP for high-availability routing. The switch handles a broad set of network protocols to optimize traffic flow across complex environments. PoE & Resiliency: High-power PoE support (IEEE 802.3at/af compliant) with surge protection. Includes a Powered Device Monitor (PDM) that can automatically restart unresponsive PoE devices — also referred to as a PoE Watchdog or the PD Alive function — for self-healing deployments. Uplink & Multicast: Six SFP/SFP+ module slots provide 10G uplink flexibility. Multicast traffic is managed efficiently using IGMP and MLD Snooping. VLANs & Security: Supports 802.1Q VLANs (tag-based and port-based) for traffic segmentation. Advanced security features include ACL support, Dynamic ARP Inspection (DAI) to drop ARP packets with mismatched MAC/IP bindings, DoS attack prevention, and integrated surge protection. Remote & Local Management: Flexible administration via web GUI, CLI, SNMP, Telnet, SSH (SSHv2 supported) or the console port. Cloud-capable management through Domotz compatibility for remote monitoring and control. PoE management options: - Port link speed: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation - PoE on/off per port - PoE maximum power per port - PoE mode per port - PoE priority per port: low, medium, high - PoE alarm notification via SNMP traps - PoE delay start configuration per port - PoE restart time configuration per port - PoE status monitoring - PD monitor function, watch guard Switch management options: - Flow control on/off per port - Rate Limiting (ingress rate and egress rate) - Port Mirroring: one-to-one or many-to-one - Port Aggregation/LACP - Broadcast Storm configuration - IGMP Snooping - Access management filtering: SNMP, HTTP, HTTPS, SSH, TELNET - Quality of Service (QoS): CoS or DSCP - Link Layer Discovery Protocol: LLDP and LLDP-MED - Integrated ICMP Ping client sends ping requests to other network nodes - SNMPv1/v2c/v3 (Simple Network Management Protocol) - Built-in RADIUS client to cooperate with the RADIUS servers - Access Control List: MAC-based and IPv4/IPv6 IP-based ACL - Dynamic ARP Inspection (DAI) discards ARP packets with invalid MAC-address to IP-address binding - DoS attack prevention - DHCP: client/relay/server/snooping - LAN settings (IP address, Gateway, etc.) - SSHv2 Certifications: FCC, CE, RoHS, UKCA, NDAA.
