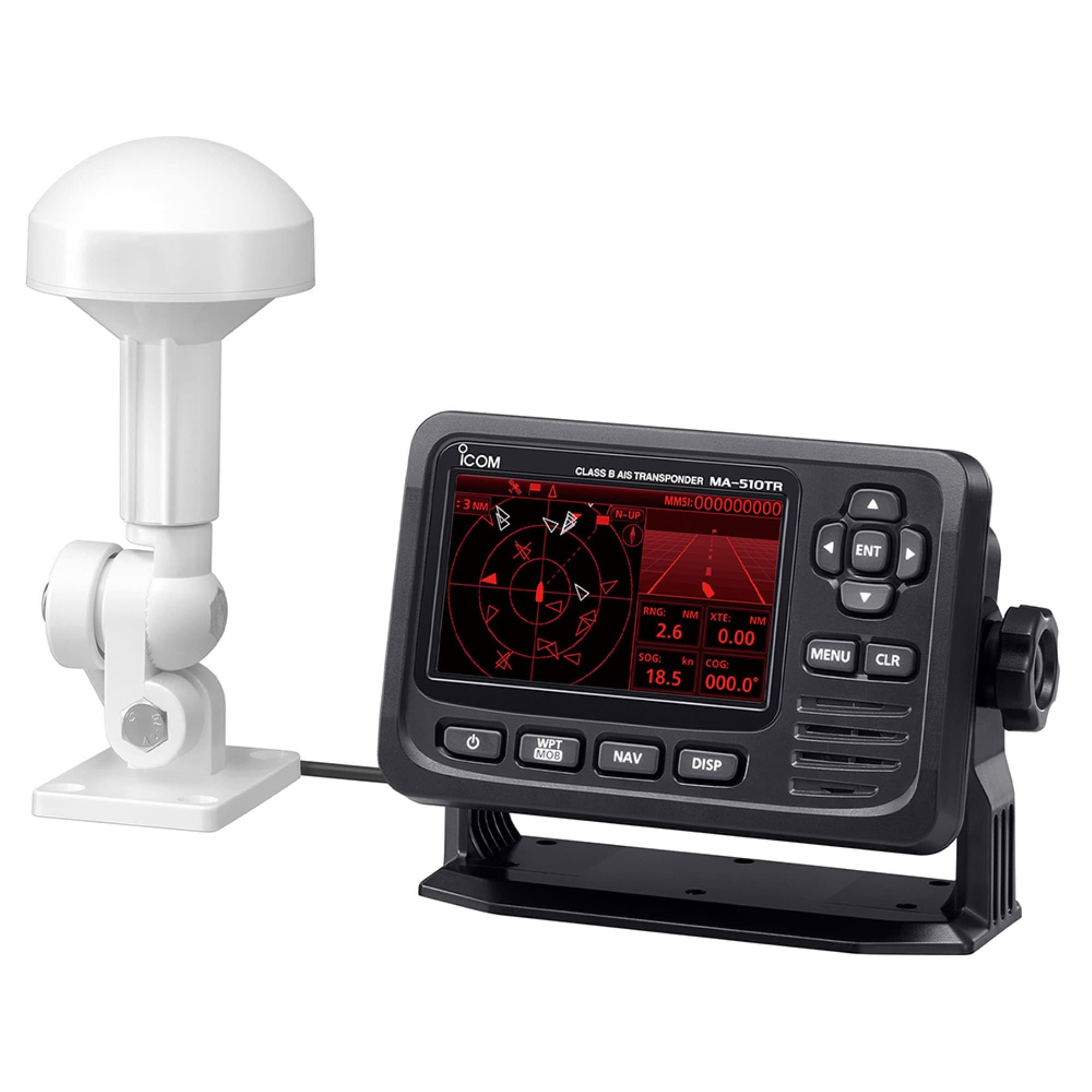

Icom MA510TR AIS Transponder w/GPS Antenna [MA510TR]

Icom MA-510TR Class B AIS Transponder Model: MA-510TR 13 class="wtul"> Collision Alarm Function Anchor Watch Alarm Man Overboard Individual DSC Call available with a compatible Icom VHF with an accessory cable USB connectivity Multi-lingual user interface 12V and 24V compatible The Class B AIS Transponder with GPS navigation function and NMEA 2000™-connectivity and receives both A and B AIS signals. With both A and B AIS signals, the range of detection increases safety. Leisure, fishing or cruising vessels can stay safe and informed on the open sea with this feature-packed transponder. The MA-510TR comes with a 4.3" color TFT LCD. The wide-viewing angle screen provides clear navigation details such as potential collision vessels marked as red, and registered friends marked as yellow. All vessels that are within 6NM CPA and 60 minutes TCPA from a vessel are put into a respective danger or friend list. The day-mode function allows visibility in direct sunlight. Night-mode provides optimal viewing brightness for comfortable operation. The built-in GPS Navigation function guides users to waypoints or AIS targets. Assign up to 100 destinations or fishing spots. Operate securely and privately with the silent mode function. Switch off the AIS transmitter to temporarily stop sending out position location. Other AIS signal reports art still received when silent mode is on. Keep fishing spots privately from other vessels by utilizing silent mode. The MA-510TR can connect to both NMEA 2000™ and NMEA 0183/-HS. Connect to a NMEA 2000™ network such as an external plotter, marine radar and VHF radios. With NMEA 0183/-HS, connect to a transceiver, plotter device, marine radar, external GPS receiver and a switch button. Specifications style='border-collapse: collapse' width='95%' border='1'>GeneralFrequency coverage161.500 MHz to 162.025 MHzType of emission16K0GXW (GMSK)Antenna impedence50 Ohms nominalOperating temperature range-20°C to +60°C; -4°F to +140°FPower supply requirement Negative ground: 12V or 24V DC nominal (9.6V to 31.2V)Current drain (at 12V DC)tx - 1.5A Rx - 0.7ADimensions (approximate) (Projections not included)6.5 (W) 4.3 (H) 3.6 (D) inchesTransmitterOutput power2WModulation16K0GXW (GMSK)Conducted spurious emissionLess than —36 dBm (9 kHz—1 GHz) Less than —30 dBm (1 GHz—4 GHz)Receiver (AIS)SensitivityLess than —110 dBmAdjacent channel selectivityMore than —31 dBmSpurious responseMore than —31 dBmIntermodulationMore than —36 dBmConducted spurious emissionsLess than —57 dBm (9 kHz—1 GHz) Less than —47 dBm (1 GHz—4 GHz)Blocking More than —15 dBm (±0.5 MHz ±5 MHZ) More than —23 dBm (±5 MHz — ±10 MHz)Co-channelMore than -111 dBMReceiver (DSC)Frequency coverage156.525 MHzType of emission16K0G2BSensitivityLess than —110 dBmAdjacent channel selectivityMore than 70 dBmSpurious responseMore than -34 dBmIntermodulationMore than -39 dBmBlockingMore than -20 dBmGPS AntennaReceived frequency1575.42 MHzAcquisition72 ch (maximum)Differential satellitesWAAS, EGNOS, MSAS, GAGANDimensions (approximate)96.2 225 (H) mm, 3.8 8.9 (H) inchesCable length (approximate)32.8 ftData InterfaceUSB (Type-B Mini)GGA, GNS, GLL, GSA, GSV, RMC, VTG, VDM, VDO, ACA, ACS, ALR, TXTNMEA 2000™ Input059392/904, 060160/416/928, 065240, 126208/996, 129026/029/545NMEA output059392/904, 060416/928, 126208/464/993/996/998, 129026/029/038/039/040/041/539/540/545/792/793/794/797/798/801/802/803/805/806/807/809/810/811NMEA 0183 NMEA Input/Outpu4800—38400 bps Input/Output, sentence format (Output: GGA, GNS, GLL, GSA*1, GSV*1, RMC, VTG, GBS, DTM, DSC)External GPS Input4800—38400 bps Input, sentence format (GGA, GNS, GLL, RMC, VTG, GBS*2, DTM)AIS Output38400 bps Output, sentence format (VDM, VDO, ACA, ACS, ALR, TXT)*1 Only 38400 bps.*2 When a received GPS signal does not include a GBS sentence, the transponder will not receive the signal from the external GPS receiver What's in the Box: class="wtul"> MA510TR GPS antenna DC power cable Mounting bracket kit Accessory connector
