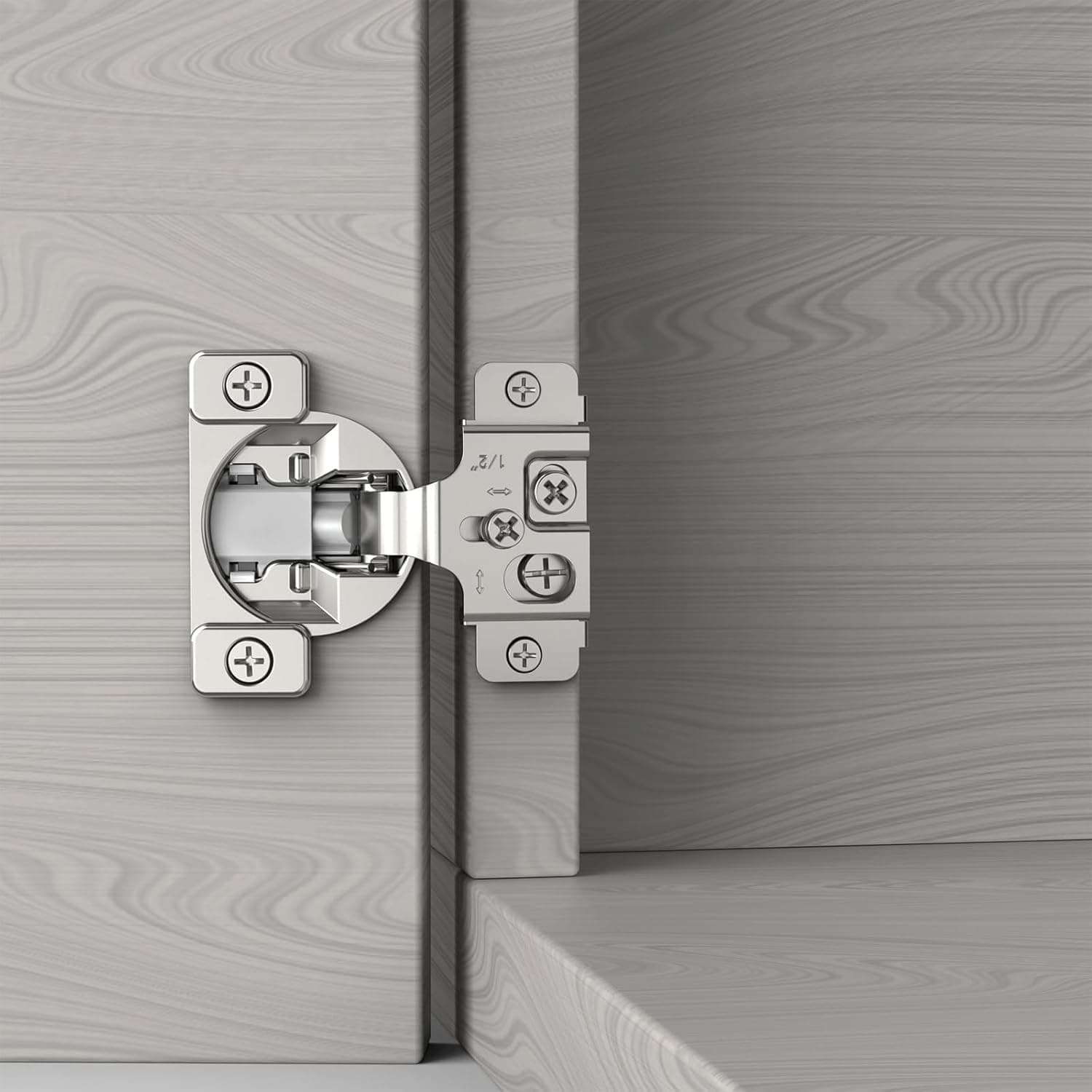

Highcool 30 Pieces 1/2 Inch Overlay Soft Close for Face Frame Door, 105-Degree Open Angle Steel Hinges for Face Frame Door, Soft Close Cabinet

3D Adjustment : Use screwdriver to turn the adjustment screw the to easily adjust the cabinet door (vertical, horizontal, depth) ensuring it is perfectly aligned. We also the base with two screw holes for greater stability and longevity post-installation. Specifications: The cup diameter is 35 mm (1-2/5"), cup depth is 11.6mm (9/20"), hole spacing: 45 mm (1-4/5"), opening angle is 105 degrees, most cabinet door styles. Each overlay comes with 4 self-tapping wood screws and 2 dowels for installation. : Our cabinet hinges are made from top-grade steel, and double electroplating (nickel surface, plating bottom) boosts rust resistance and durability. These hinges are for face frame cabinets and are useful in kitchen cabinets, wardrobes, TV units, bookcases, and other door applications. Noise: Each 1/2 inch Overlay Soft built-in nylon damper that reduces the speed of the cabinet door, slamming and noise while safeguarding your fingers. How to : You should the thickness of the cabinet side panel (measure the overlap distance of the door panel the cabinet face) rather than the cabinet door thickness. You must pick cabinet hinges that match the side thickness of your cabinet. For instance, if the cabinet side panel is 1/2 inch thick, opt for the corresponding 1/2 inch .
