High Voltage Clamp Current Sensor FR050HV

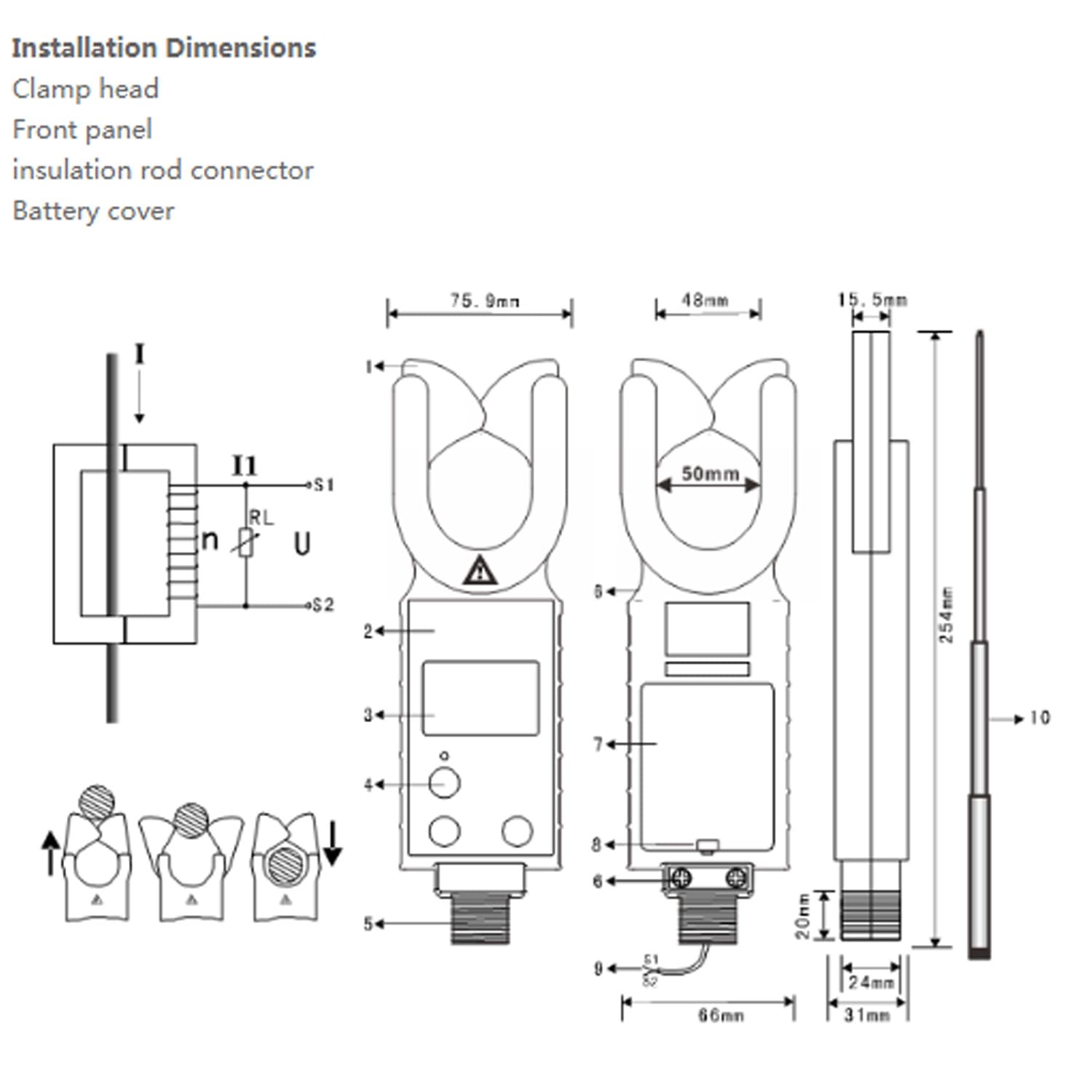

Function：current, leakage current, transformation ratio, higher harmonic current, phase, electric power, power, power factor of the High and low voltage lines Features：CT clamp structure output Method：Current sensing output Jaw Size：Φ50mm Secondary Development Display Window：46*30mm Range：AC 0.0mA~1200A Resolution: AC 0.1mA Accuracy: ±1.0%FS(50Hz/60Hz; 23 °C±2 °C) The wire is in the center of the jaw Phase Error：≤3°(50Hz/60Hz;23 °C±2°C) Turn Ratio：4000：1 (can be customized) Reference Load：RL: 0~10A≤50Ω; 0~100A≤5Ω; 0~1200A≤0.5Ω Weight：300g Dimensions：L/T/H 87mmX 37mmx 262mm Output Interface：10cm long, can be connected by opening the upper and lower covers Electric field Interference：about 10mA when the external electric field 100A approaches 30mm Current Frequency：45Hz~65Hz (measured current frequency) Line Voltage：AC60kV and below, circuit test telescopic insulation poles should be fully opened Working Temperature：-25°C~55 °C Medium Strength：AC3700V/rms (between iron core and shell) Current Frequency：45Hz~65Hz(measured current frequency)
