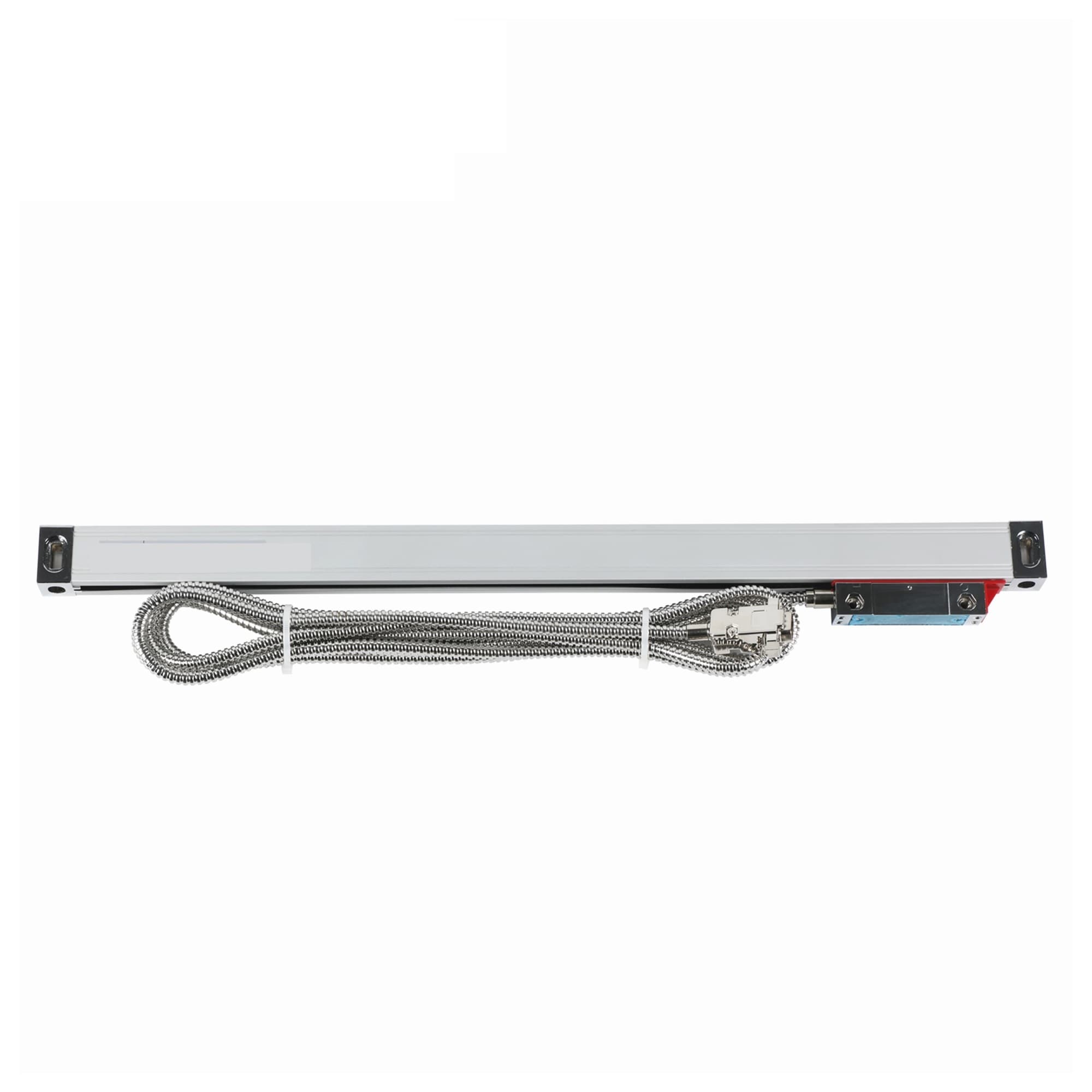

High Precision 0.005mm Slim Linear Scale TTL 50 100 150 200 250 300 350 400mm 20x28mm Small Linear Encoder Grating Ruler Sensor

0.005mm 50 100 150 200 250 300 350 400mm Slim Linear Scale 20x28mm Thin Small 1um Lathe Linear Encoder Grating Ruler Sensorsor scale widely used for turning lathe, milling, boring, wiring cutting machine and CNC equipment etc. 20mmx28mm slim size suitable mini lathe milling and CNC machine. What in package -1 piece scale, scale cover, mounting bracket, screw bag Parameter Available measurement: 50mm to 400mm Total length: measurement+142mm Size cross section size: 20mmx28mm Input voltage: 5VDC Output signal: TTL Resolution: 5um/0.005mm Cable length: 3meters Scale wiring diagram Scale drawing L means scale travel(working) length Procut name slim linear scale Input voltage 5VDC Resolution 0.005mm/5um scale overall length Travel+142mm Travel length 50,100,150,200,250,300,350,400mm Output signal TTL Cable length 3 meters Cross section size 20mmx28mm
