Heating element for baking in the oven for GE models EER3000H01TW, EER3000H02BB, EER3000H02KC, EER3000H02TW, EER3000K01BB, EER3000K01KC, EER3000K01TW, EER3000K02BB, EER3000K02KC

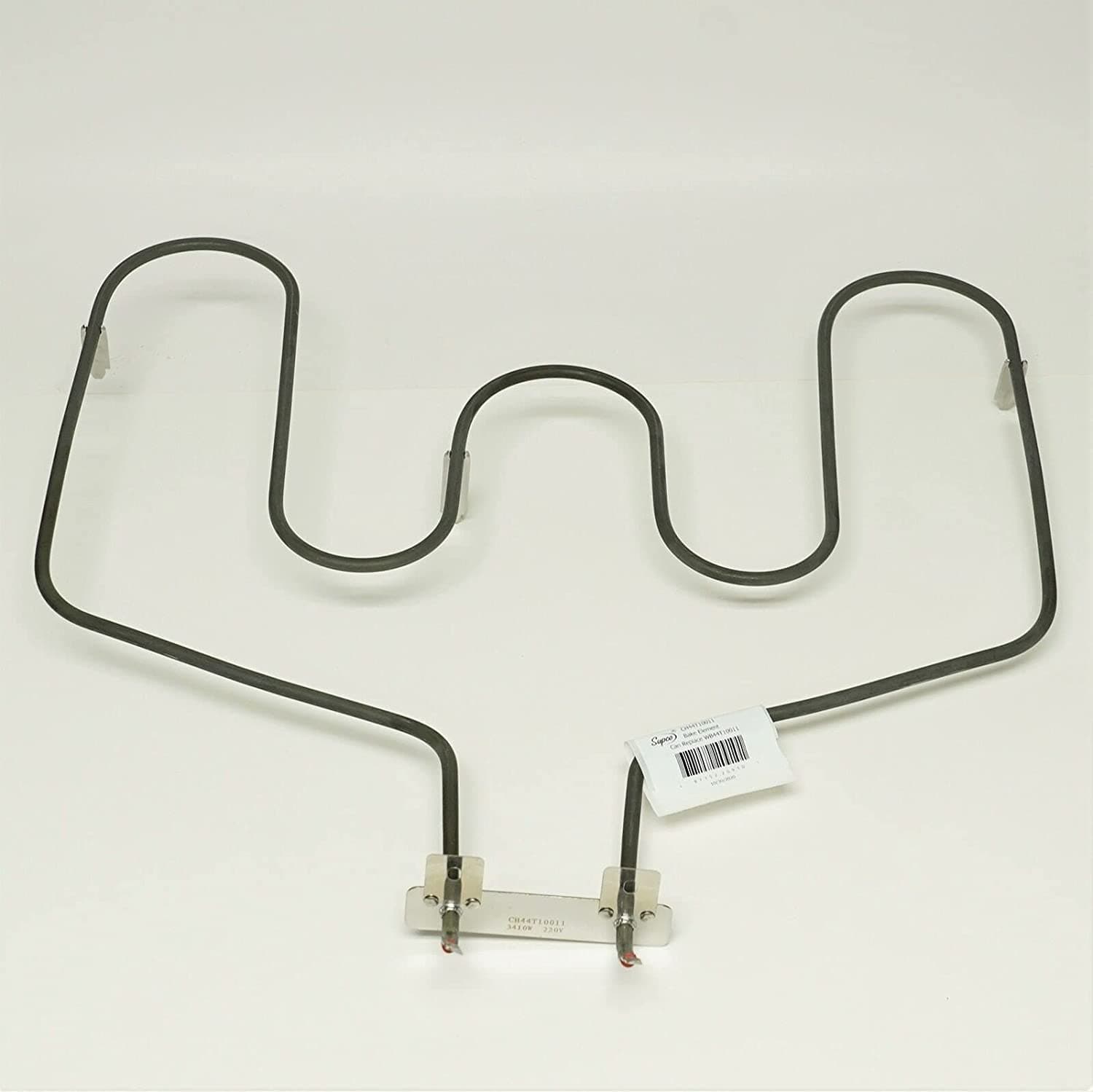

Oven Bake Element for GE Part Number WB44T10011. It is rated at 240V 3410 Watts & has 3 mounting legs. The following are the dimensions of the element : 18" Wide 16-1/2" Long from Mounting Bracket to end of Element 2-1/2" Long (bent at 30 degree angle) from Bracket to terminal end Terminals are male spade Mounting bracket has 2 holes on either end for mounting to back of range 2-7/8" centers
