Hayear 1 Microscopes HDMI Camera USB sku-18237700915

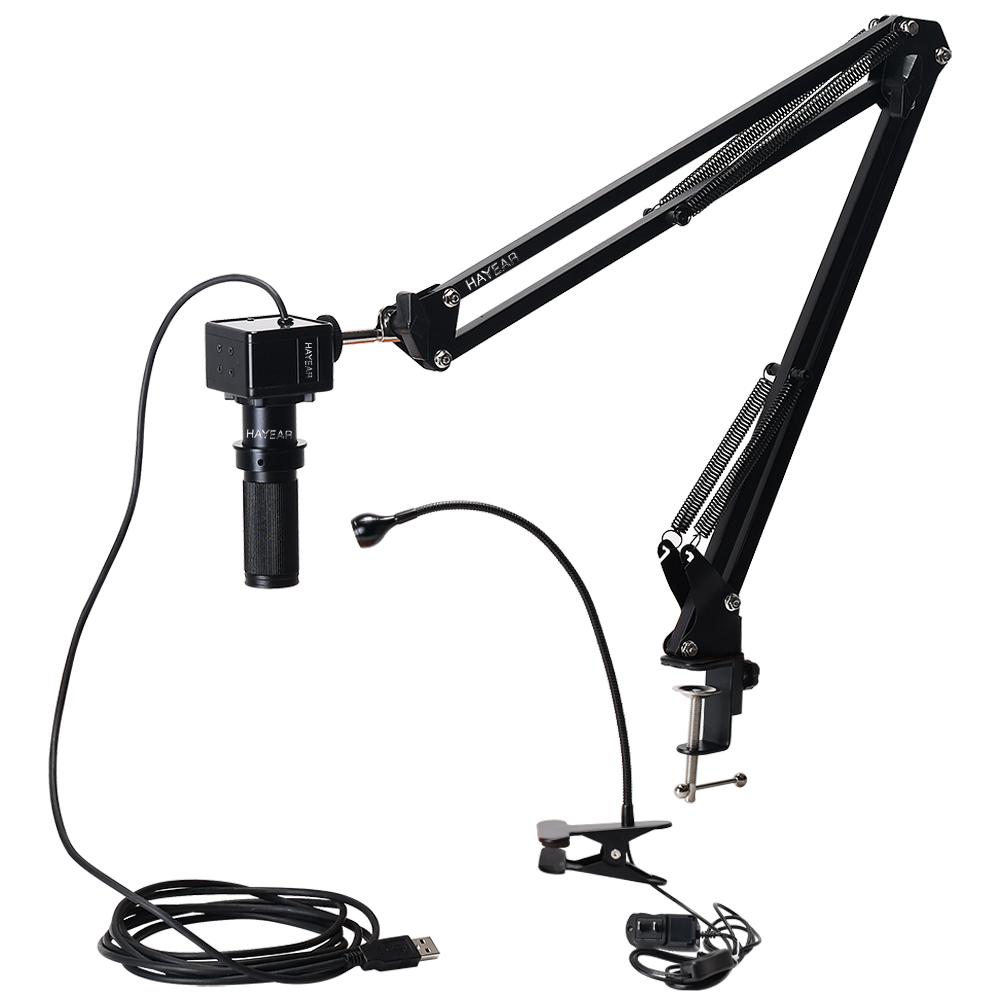

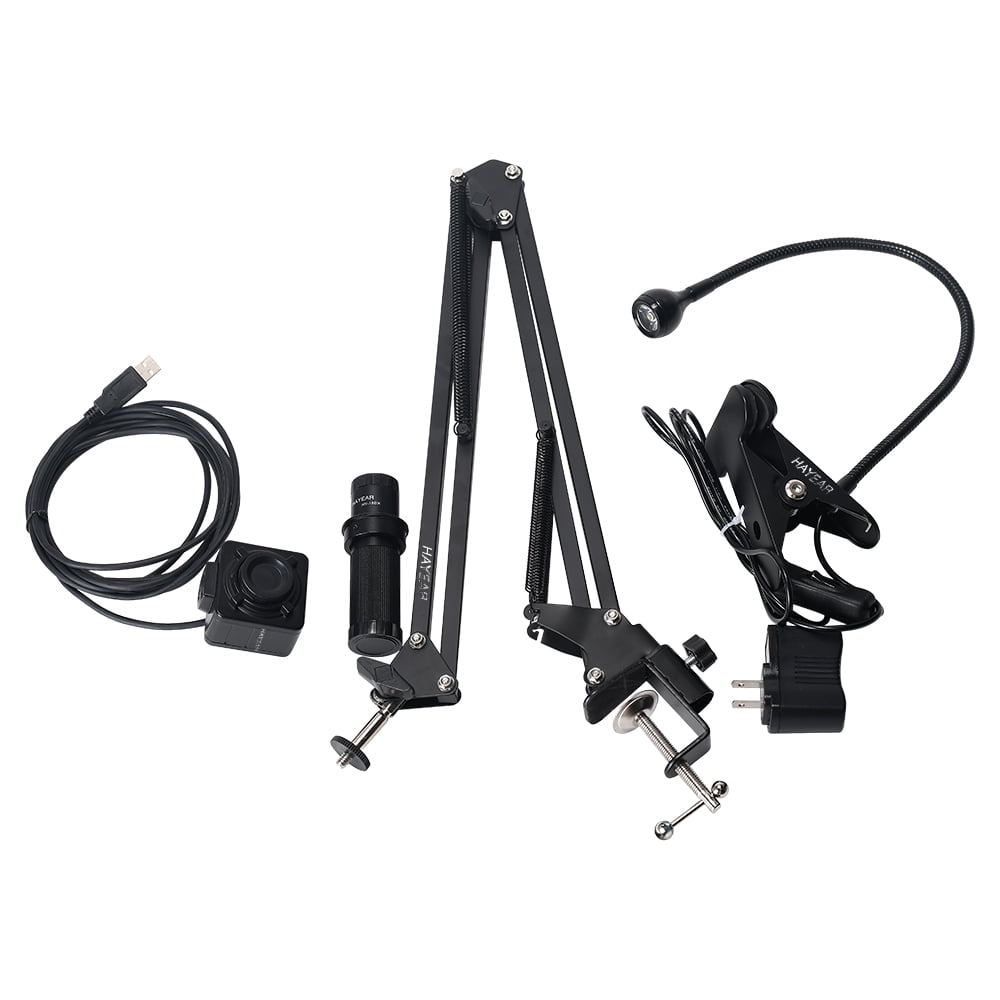

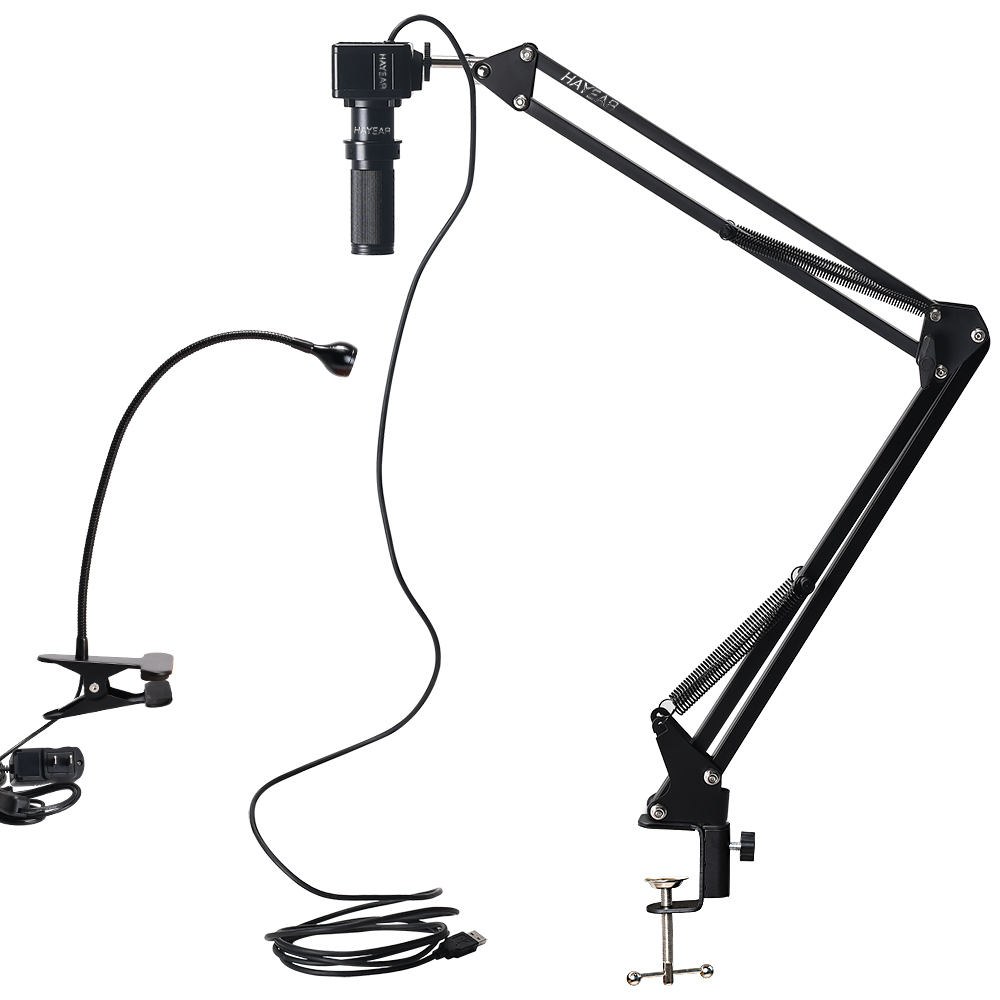

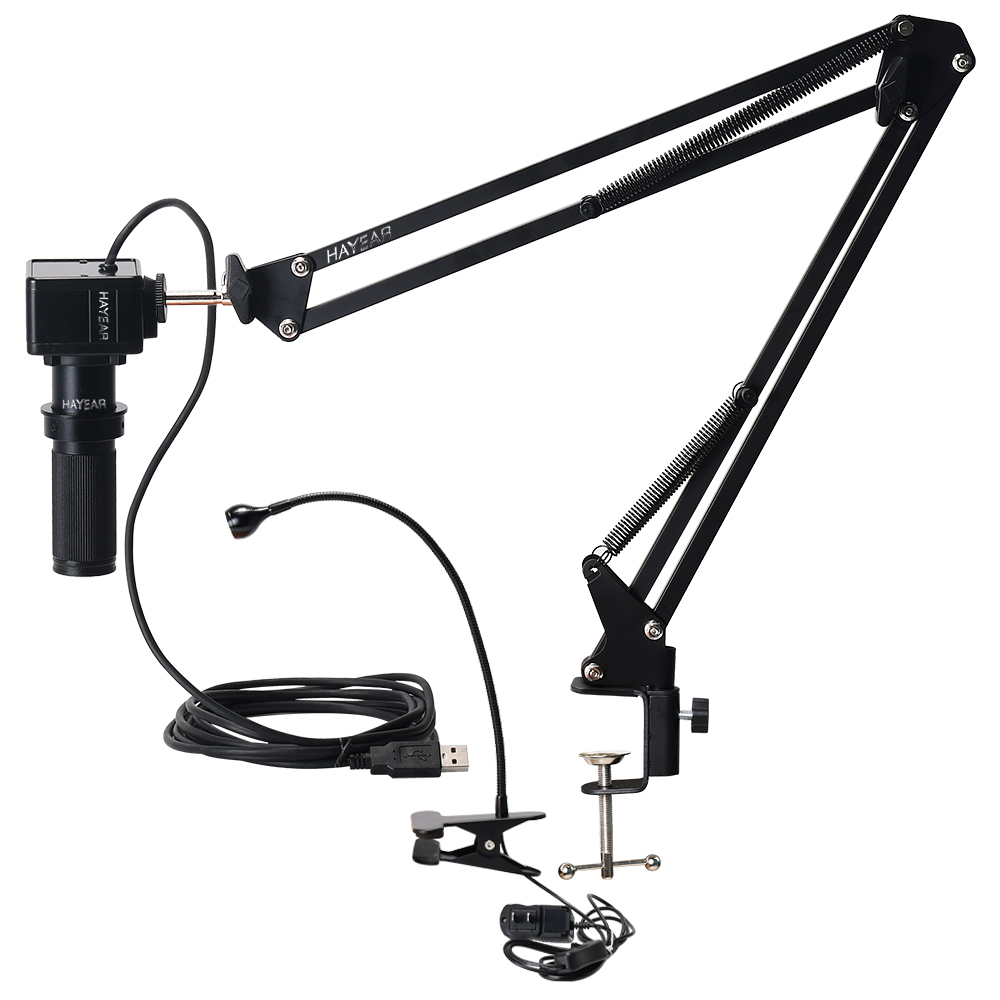

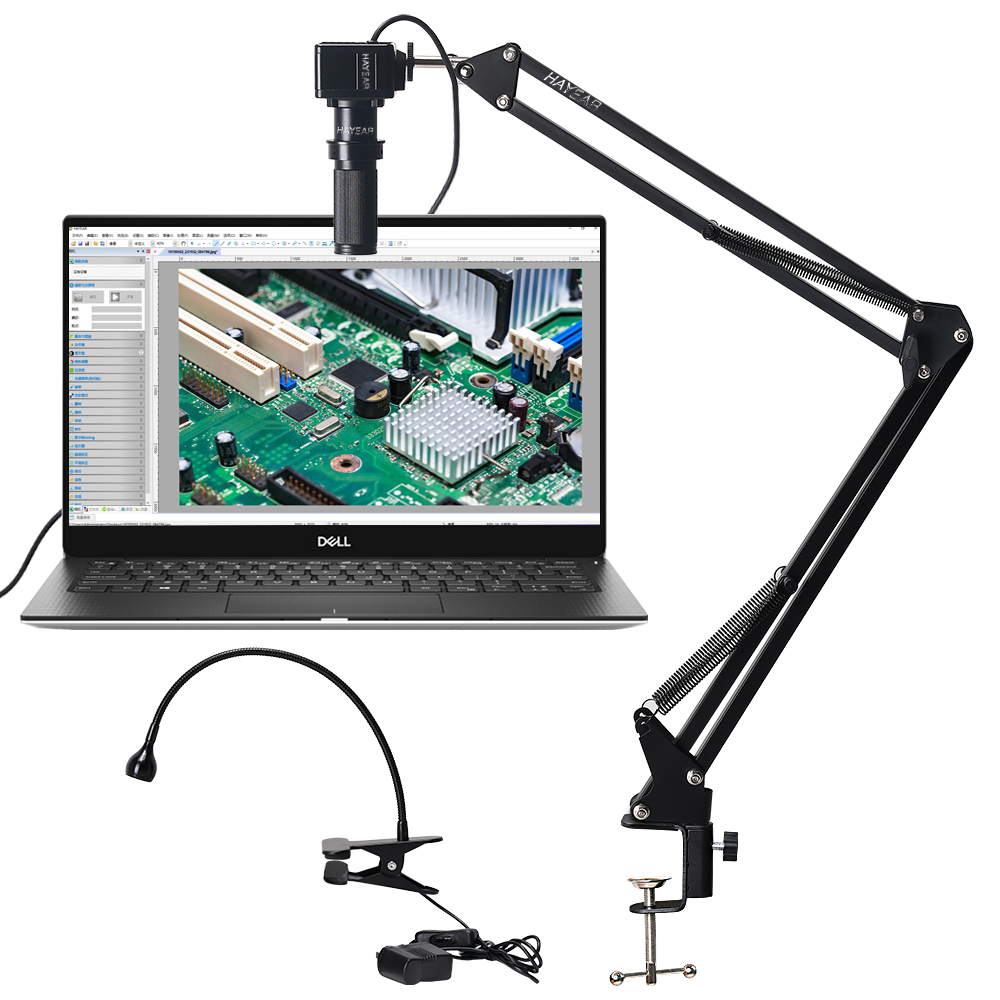

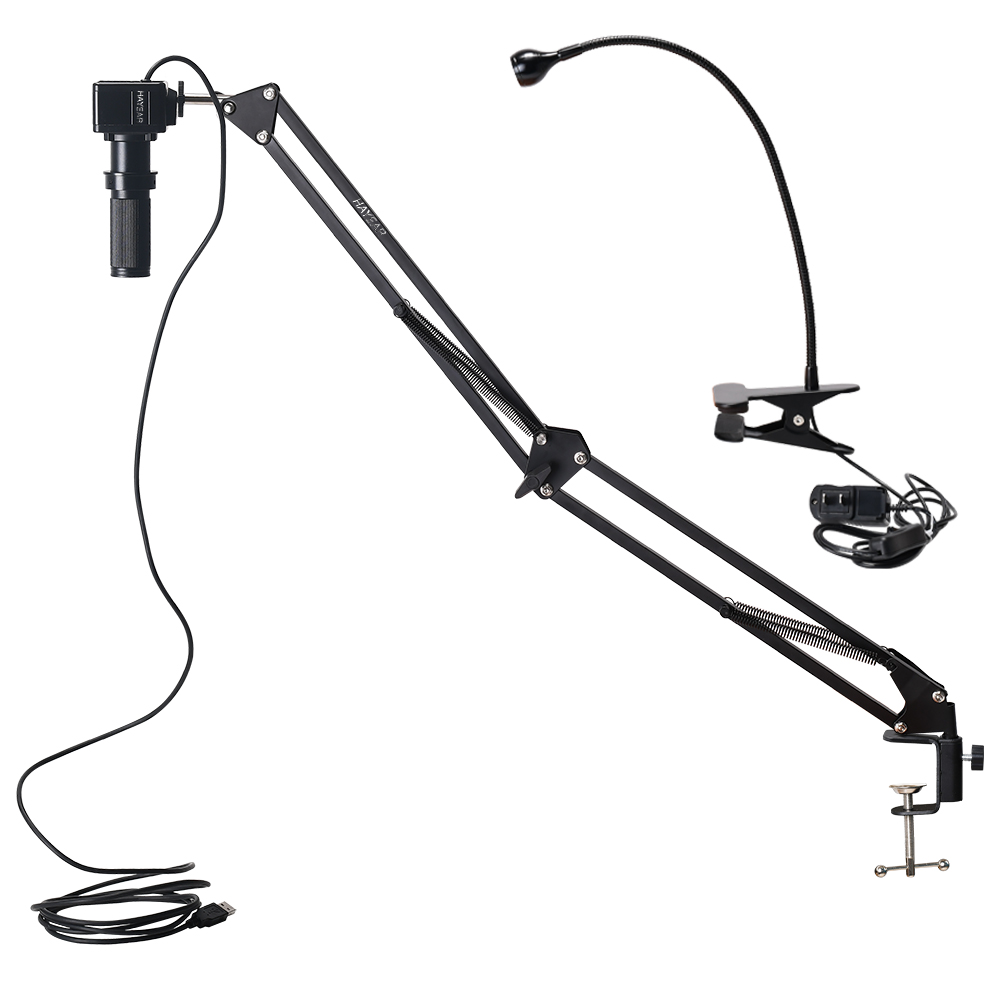

Hayear model 1 is an HDMI/USB laser autofocus electronic digital industrial video microscope camera for PCB soldering and jewel inspection. It is listed under Microscopes as sku-18237700915, UPC 782003268136. The camera has a 5M 1/2.8-inch progressive CMOS IMX335LQN-C image sensor with 2.0um x 2.0um sensor size, 4:3 and 16:9 progressive scanning, internal synchronization, 2592(H) x 1944(V) effective pixels, 1Lux minimum illumination and 1100TVL horizontal resolution. Its lens provides 10X optical magnification, F=4.32~40.9mm and F1.76~F3.0. Zoom speed is 3.0S from wide to telephoto and 2.6S in reverse. Focus settings are near/far, auto, manual and semi-auto (one touch); the focus range is 30cm at wide angle and 1.5m at close angle. The horizontal field of view is 67.5 degrees at wide angle and 7.6 degrees at close angle. Iris settings are auto and manual. Exposure settings are auto, shutter priority, aperture priority, brightness and manual. Electronic shutter ranges are NTSC 1/30~1/10000 and PAL 1/25~1/10000. White balance offers auto (1,800K~10,000K), single press, indoor, outdoor and manual settings. It has an infrared remote, Chinese and English menus, 2D and 3D noise reduction, gamma, mirror, flip, electronic amplification, anti-flicker and wide dynamic functions. HDMI output supports 1920x1080p@50,60 and @25,30, plus 1280x720p@50,60 and @25,30. USB2.0 supports MJPG and YUY2. MJPG modes are 1920x1080@30, 1280x960@30, 1280x720@30, 1024x768@30, 800x600@30, 640x480@30 and 320x240@30; vertical-screen modes are 1080x1920@30 and 720x1280@30. YUY2 modes are 1920x1080@5, 1280x960@10, 1280x720@12, 1024x768@15, 800x600@20, 640x480@30 and 320x240@30. Operating temperature is -10℃ to 50℃. Power is 12VDC, maximum 5W. Dimensions are 71.8(D) x 45(W) x 48(H) mm. The package contains 1 live all-in-one camera, 1 power supply, 1 HDMI line and 1 remote control.You may also like Hayear HY-1200B Microscopes, USB camera sku-15445762826.
