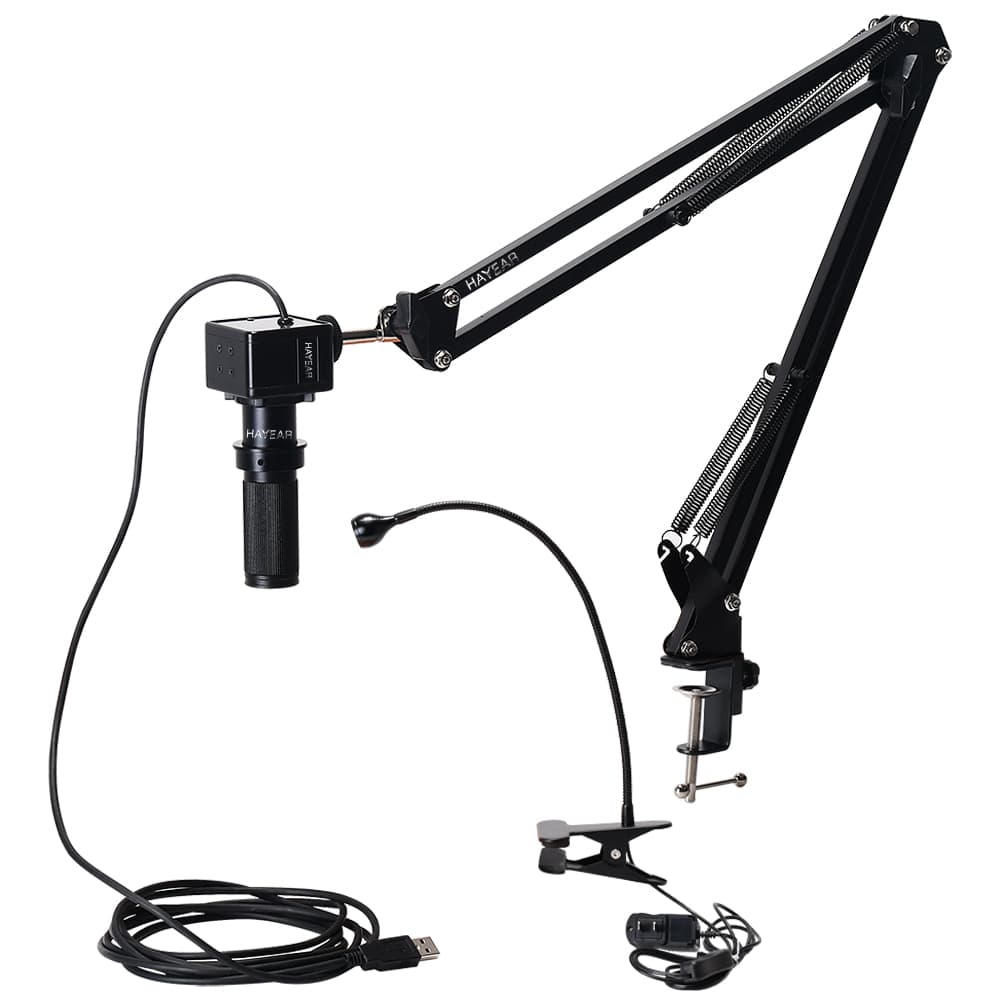

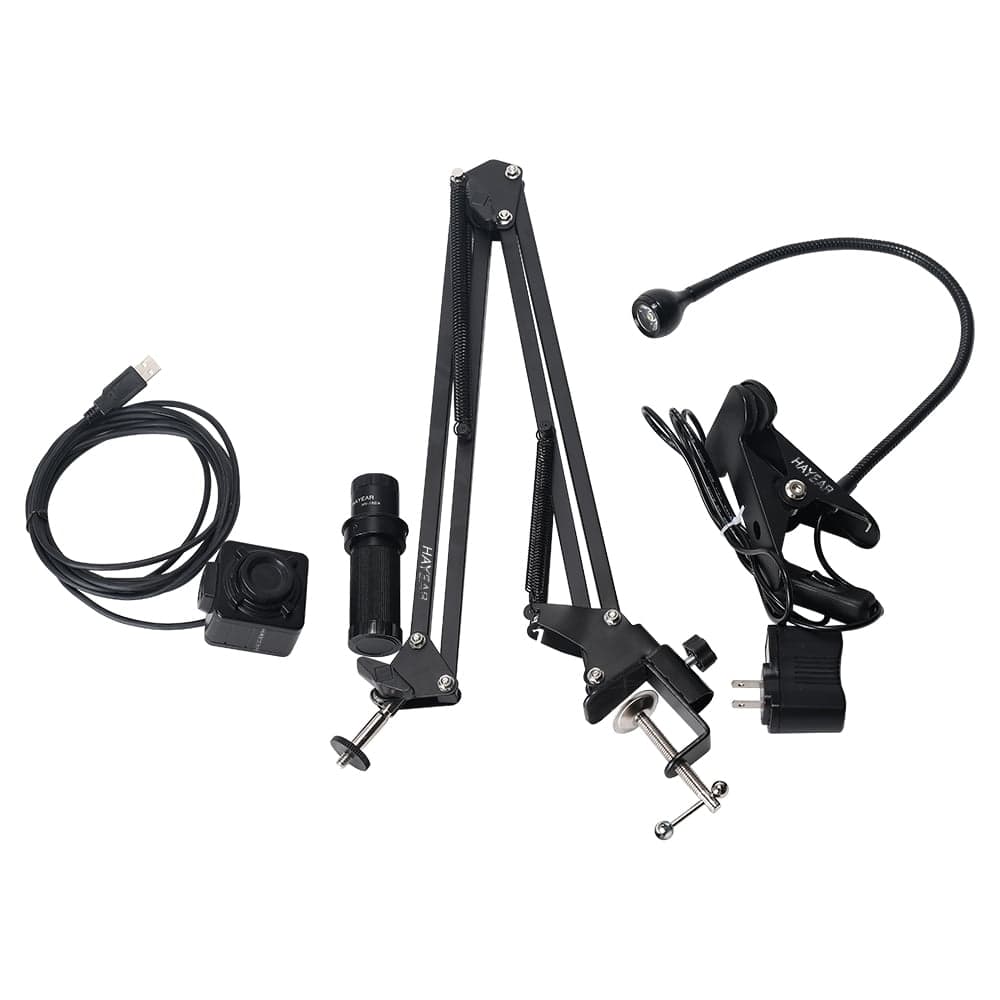

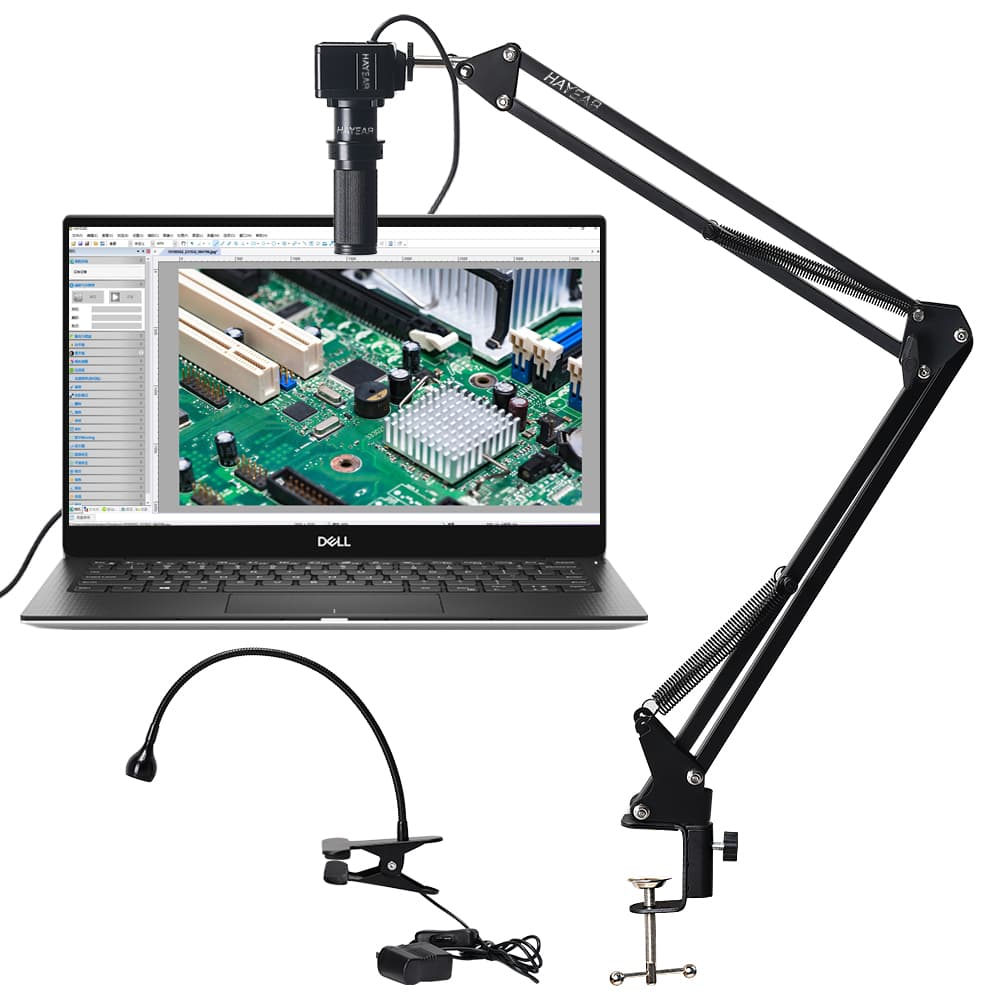

Hayear HDMI /USB Laser Autofocus IMX 335 Electronic Digital Industrial Video Microscope Camera for PCB Soldering Jewels Inspection

‌Image sensor: 5M 1/2.8” Progressive CMOS (IMX335LQN-C) Sensor size: 2.0um x2.0um Scan system: 4:3/16:9 progressive scanning Synchronization System: Inner Synchronization Effective pixel: 2592(H) x 1944(V) Minimum Illumination: 1Lux Horizontal Resolution: 1100TVL Lens: 10X optical magnification, F=4.32~40.9mm, F1.76 ~ F3.0 Zoom range: 10x optical magnification Zoom speed: Wide~Tel :3.0S Tel~Wide :2.6S Focus: Near/Far, Auto/Manual/Semi-Auto (One Touch) Focus Range: 30cm (wide angle), 1.5m (close angle) Field of view: Horizontal: 67.5 degrees (wide angle), 7.6 degrees (close angle) Auto Iris: Auto/Manual Exposure: Auto/Shutter Priority/Aperture Priority/Brightness/Manual Electronic shutter: NTSC: 1/30~1/10000, PAL: 1/25~1/10000 White balance: Auto (1,800K ~ 10,000K) / Single Press / Indoor / Outdoor / Manual Remote control: Infrared remote control Menu: Chinese and English menu De-noise: 2D&3D noise reduction Other function: Gamma, mirror, flip, electronic amplification, anti-flicker, wide dynamic Digital Output (HDMI): 1920x1080p@50,60 ;1920x1080p@25,30 1280x720p@50,60 ;1280x720p@25,30 USB2.0,MJPG, YUY2 format: MJPG：1920x1080@30；1280x960@30；1280x720@30；1024x768@30；800x600@30；640x480@30；320x240@30； Vertical screen：1080x1920@30；720x1280@30 YUY2：1920x1080@5；1280x960@10；1280x720@12；1024x768@15；800x600@20；640x480@30；320x240@30； Operating temperature: -10℃ ~ 50℃ Power: 12VDC, Max 5W Size : 71.8(D) x 45(W) X 48(H) mm Package including: 1 x Live All-in-one Camera 1 x Power supply 1 x HDMI line 1 x Remote control
