Hayear 1 Microscopes sku-2389070379 753215417216 HD

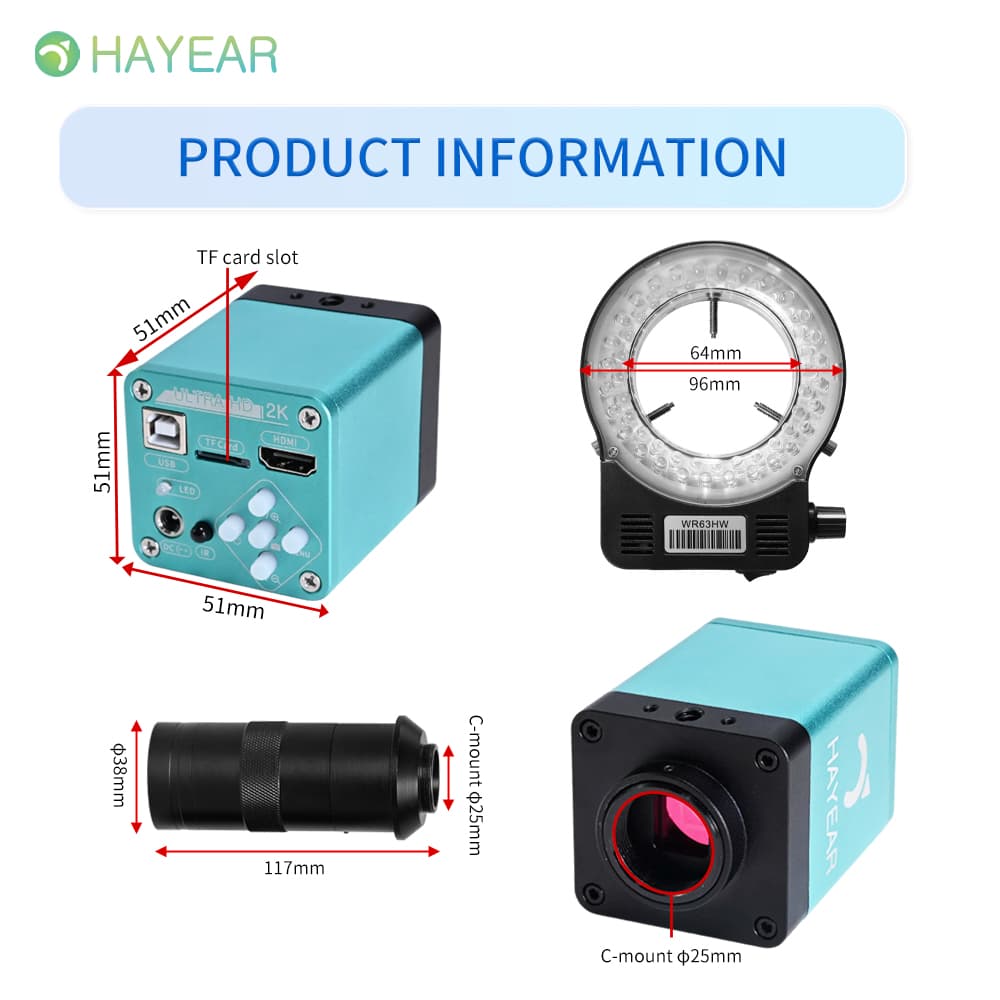

Hayear model 1 Microscopes kit, sku-2389070379, UPC 753215417216. The HY-2317 camera has a 34MP, 34-megapixel sensor with a 1/2.3 inch sensor size and 1.43 by 1.43um pixels. It has HDMI and USB 2.0 outputs, a C-mount lens, and a TF card slot supporting up to 64G. It saves JPG images at 6800 by 5100 to a TF card and records MP4 video at 1920 by 1080 and 60fps to a TF card.

USB video is 1920 by 1080 at 30FPS. Features include auto or manual white balance and brightness, 5 times digital zoom, adjustable R/G/B color, image freeze, film recording, a cross cursor, and movable, multicolor transverse and vertical lines, including 5 pcs of each. The on-screen menu supports English, Chinese, French, Spanish and Portuguese; SNR is supported.

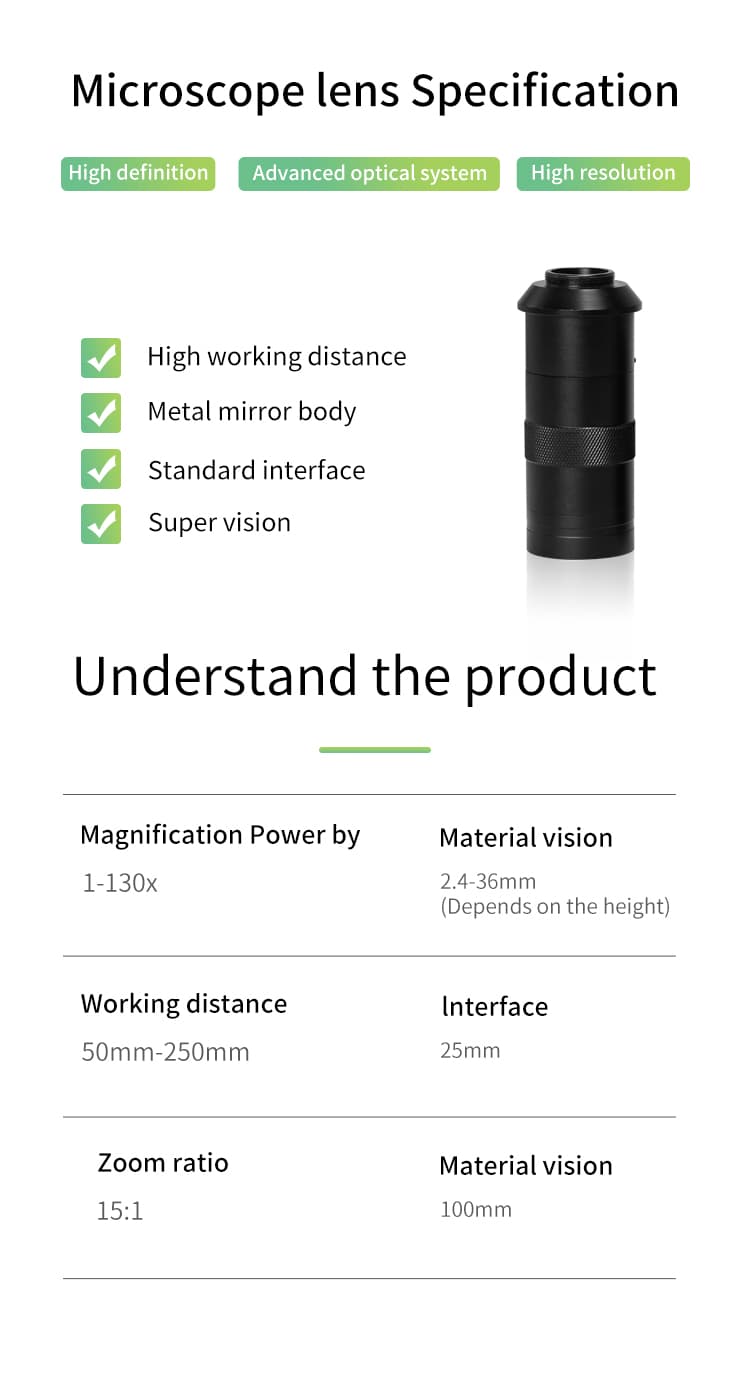

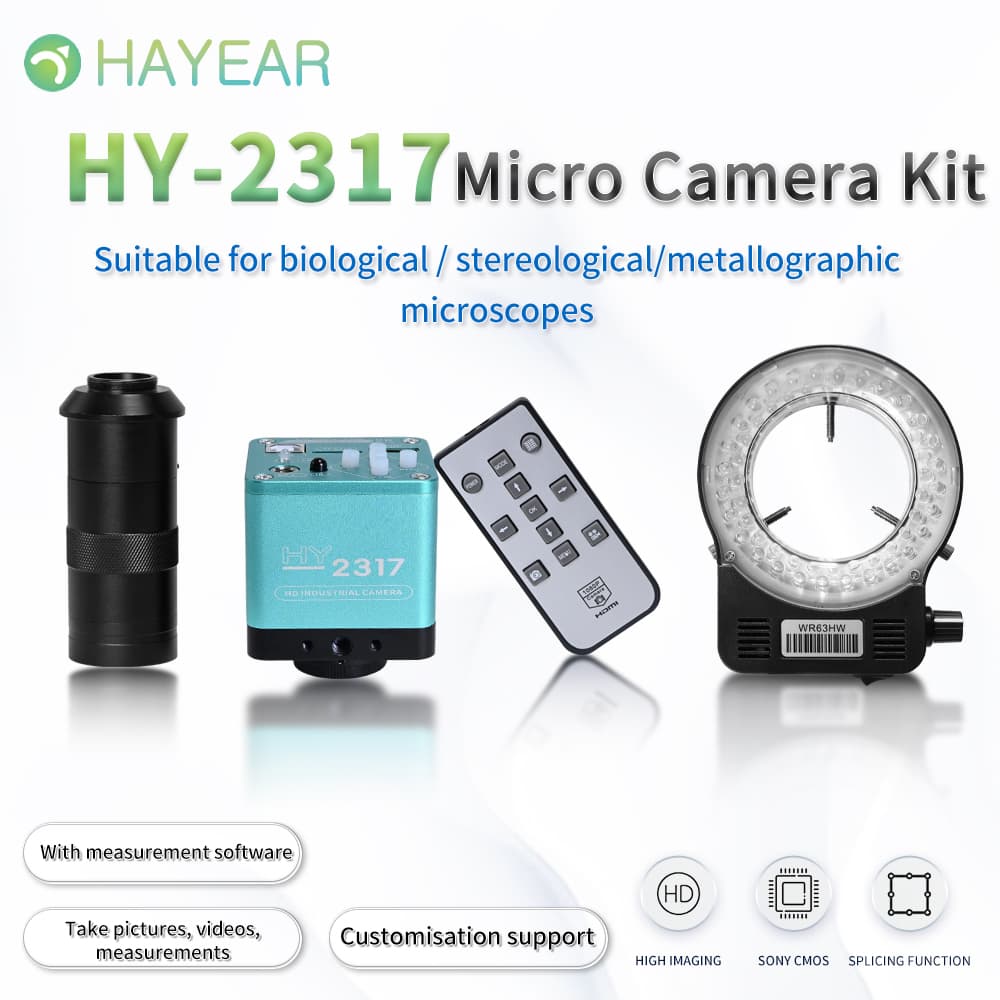

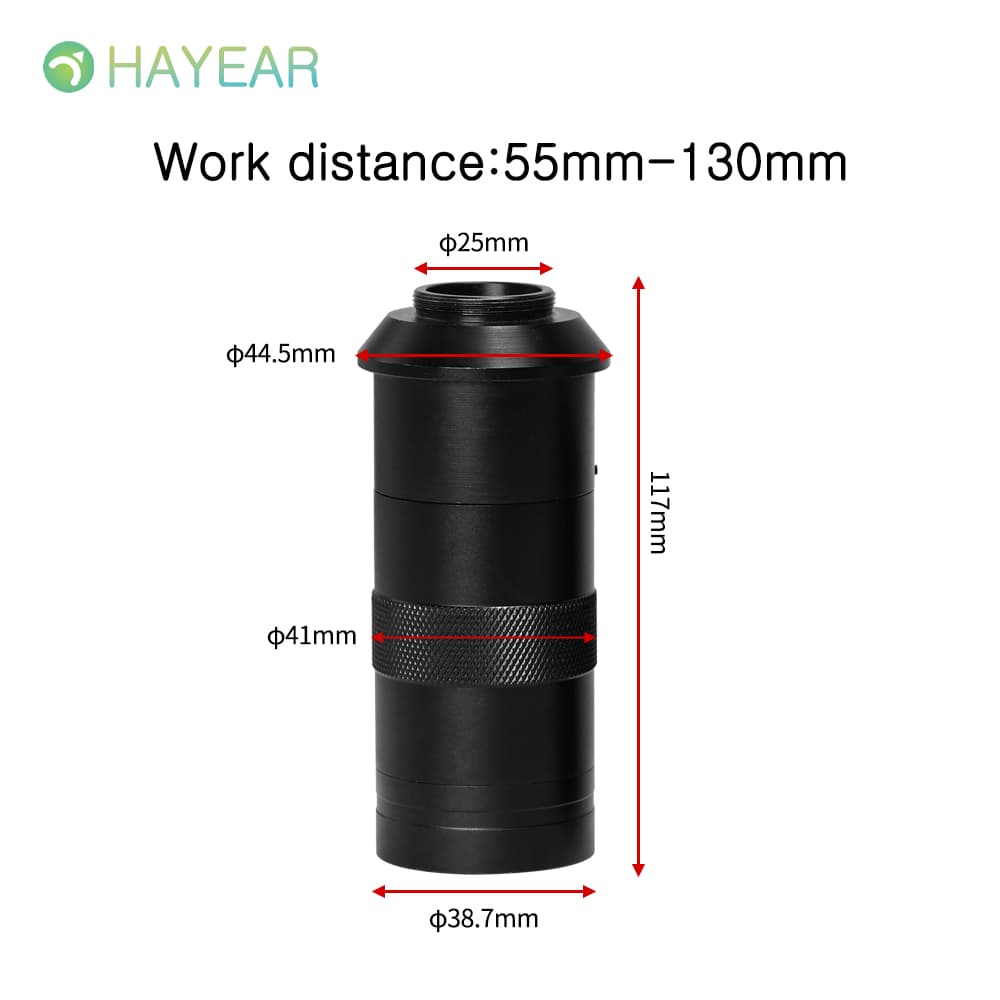

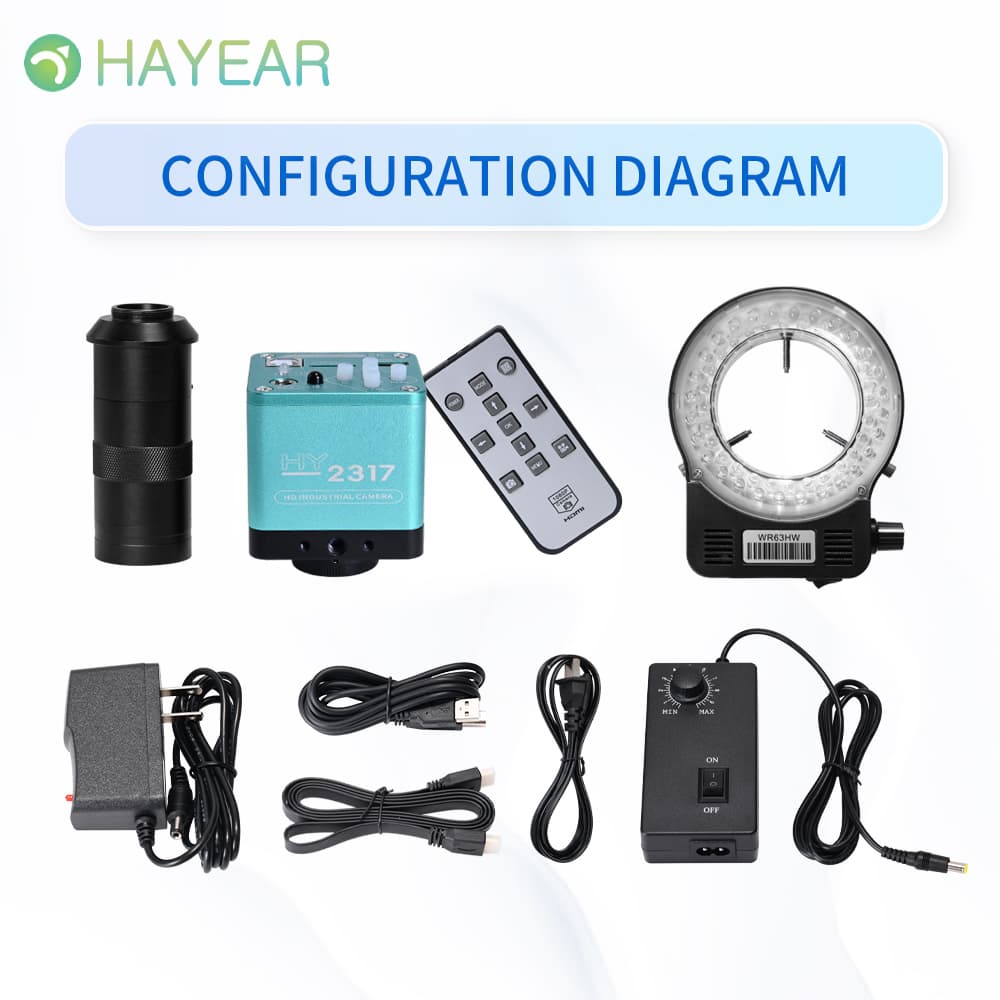

The kit includes a camera, power supply, software disc, 100X C-mount lens and LED ring light with its power supply. The lens provides 0.12 to 2X magnification, about 8 to 100X on the display, a 55mm to 130mm working distance and a 45mm to 290mm visual field. It measures 115mm long by 40mm in diameter and weighs 210g.

The adjustable ring light has 56 white LEDs, uses 6W, provides focused, shadow-free illumination and has a stated life of 100,000 hours. Its power input is 100 to 240V at 50 to 60HZ with automatic switching. The female thread is M28 by 0.75, and the ring fits lenses 16mm to 46mm in diameter.
