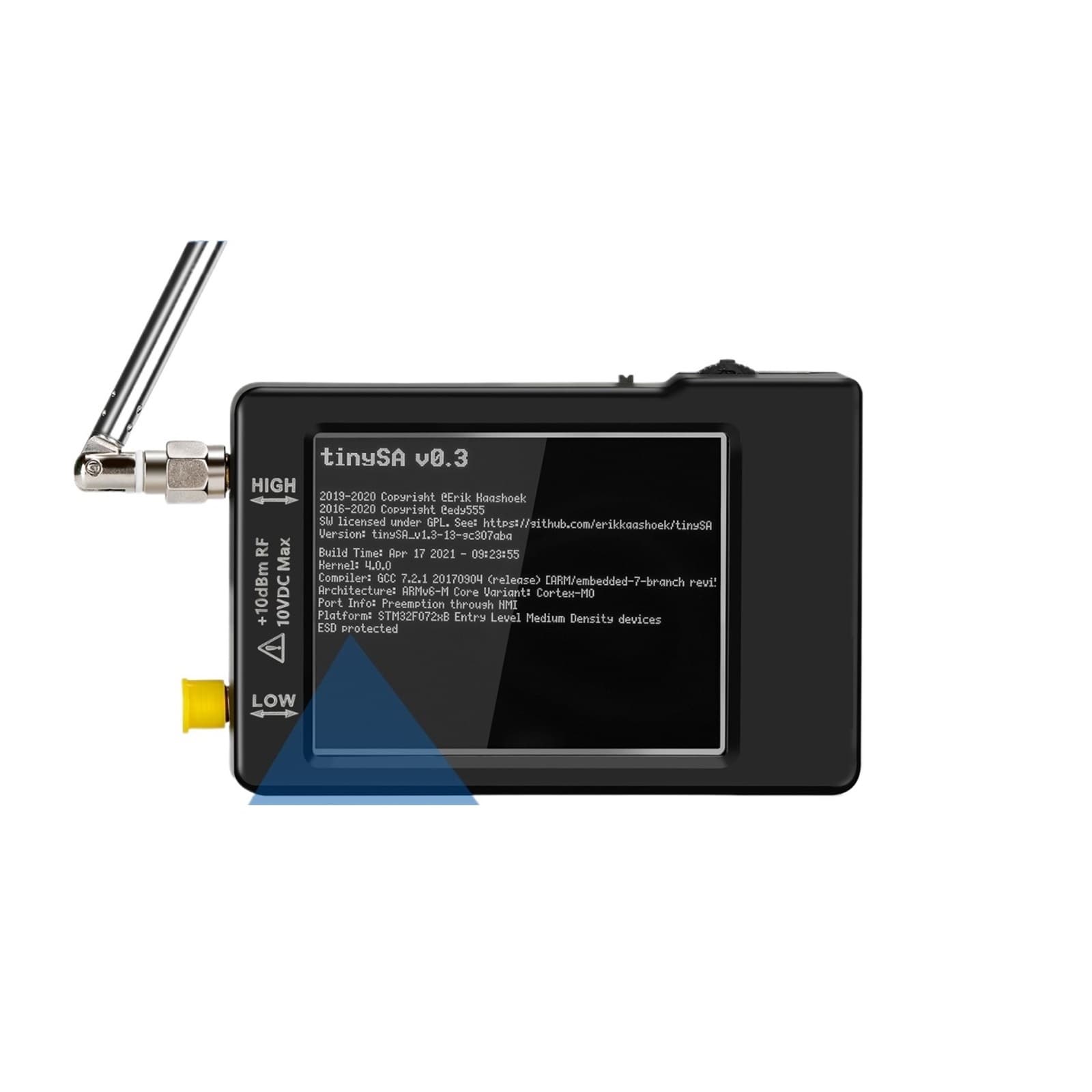

Hand Spectrum Analyzer 2.8" Display 100kHz To 960MHz With ESD Proteced Version V0.3.1_E Spectrum Analyzers ,Signal Generator

* 1dB compression point at +2dBm with 0dB attenuation * Power detector resolution of 0.5dB and linearity frequency of +/-1dB * Absolute power level accuracy after power level calibration of +/- 1dB * Lowest discernible signal using a resolution bandwidth of 30kHz of -102dBm * Frequency accuracy equal to the selected resolution bandwidth * Phase noise of -90dB/Hz at 100kHz offset and -115dB/Hz at 1MHz offset * Spur free dynamic range when using a 30kHz resolution bandwidth of 70dB Reference generator spec: * Optional square wave output with fundamental at -25dBm connected to high input/output * Frequency can be set to 1MHz, 2MHz, 4MHz, 10MHz, 15MHz or 30MHz. Battery spec: * Charging time max 1 hour on 500mA minimum USB port or USB charger * Operation on fully charged battery for at least 2 hours Package inclued: 2.8" Spectrum analyzer *1 20cm sma-sma rg174 cabe *2 USB Type-C Data Cable *1 Hand rope *1 SMA female to female connector *1 SMA telescopic antenna *1 Related Products: spectrum analyzer,signal generator,frequency counter,logic analyzer,handheld spectrum analyzer,frequency analyser,usb spectrum analyser,signal analyser,wifi analyzer,ultra spectrum analyzer,antenna analyser,led music spectrum,rf analyzer,radiation meter
