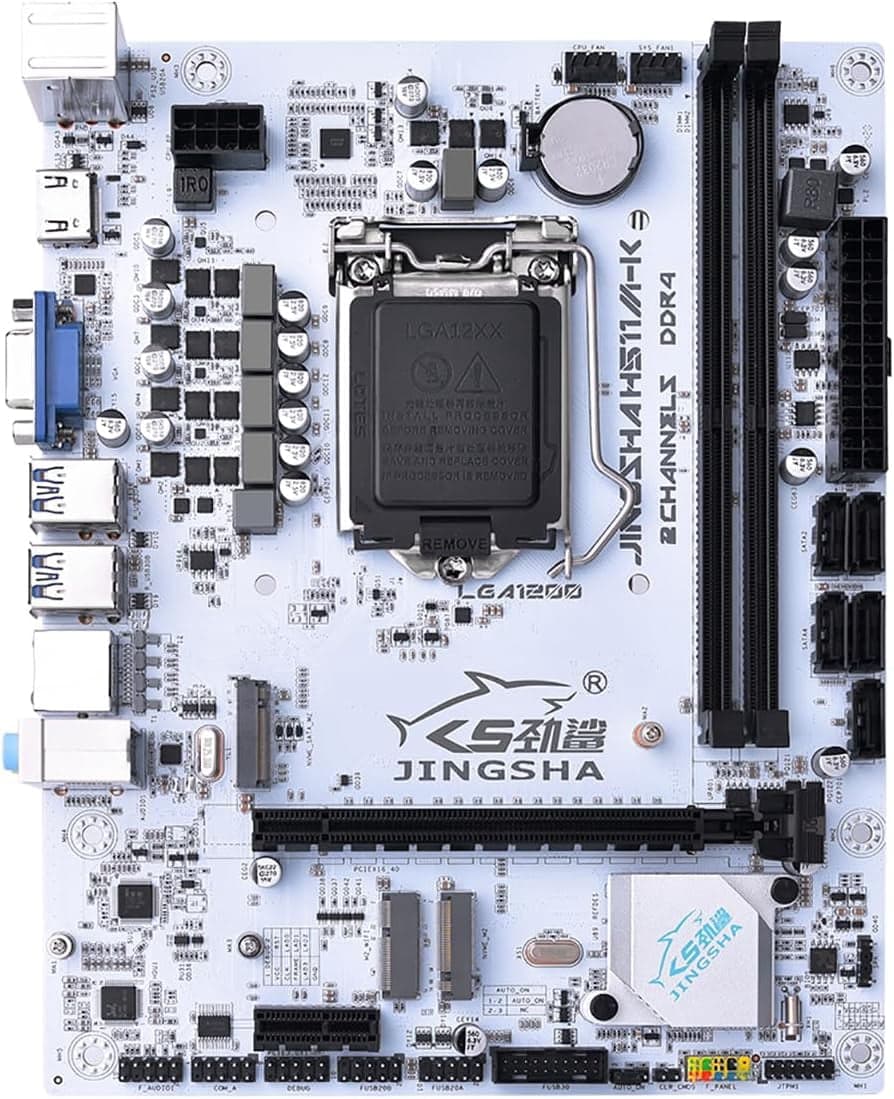

H511M-K LGA 1200 Micro ATX Motherboard — 10th & 11th Gen CPU Support, Dual-Channel DDR4, NVME M.2, PCIe 3.0, SATA 6Gbps/s, USB 3.0, Gigabit LAN

Socket and CPU compatibility: LGA 1200 design supporting 10th and 11th Gen Intel Core and entry-level CPUs, including Core i9 11900k, i7-11700, i5-11400f, i9 10900k, i7 10700k, i5 10600k, G6600, G5920, and other Core/Pentium/Celeron series processors. Memory: Micro ATX board with dual-channel DDR4 support up to 32GB, compatible with 2133MHz, 2400MHz, 2666MHz, 2800MHz, 3000MHz, and 3200MHz modules. Power delivery and stability: 7-phase power supply implementation with all-solid-state capacitor design and refined manufacturing for reliable operation. The H511 motherboard exposes a 24+8 pin power interface — please use at least a 500W brand power supply. Expansion and I/O: Includes PCIe 3.0 X16 slot, M.2 slot for NVME SSDs, SATA 3.0 (SATA 6Gbps/s) ports, USB 3.0 and USB 2.0 connectors, plus HDMI-compatible and VGA display outputs. Networking and performance: Onboard RJ45 gigabit network port for wired LAN connectivity. Board design and cooling: Built around the h470 chipset with a 10-layer PCB material design for improved signal transmission and durability. The placa madre is fitted with heat dissipation armor protection to help keep temperatures down and maintain stable bus communication.
